FIREROL Standard Wall Single Core Unsheathed Cables 0.6/1 kV or 1.8/3 kV
EN 50264-2-1 (FRL-SW-1SU, FRL-SW-3SU)
Application
-Used as power and control cable for protected installations inside and outside of rail and transport vehicles, where handling andinstallation cost are an important factor.
-Used in control, auxillary and main circuit wiring such as cable harnesses, switchboards and control panels, driver desks etc.
Construction

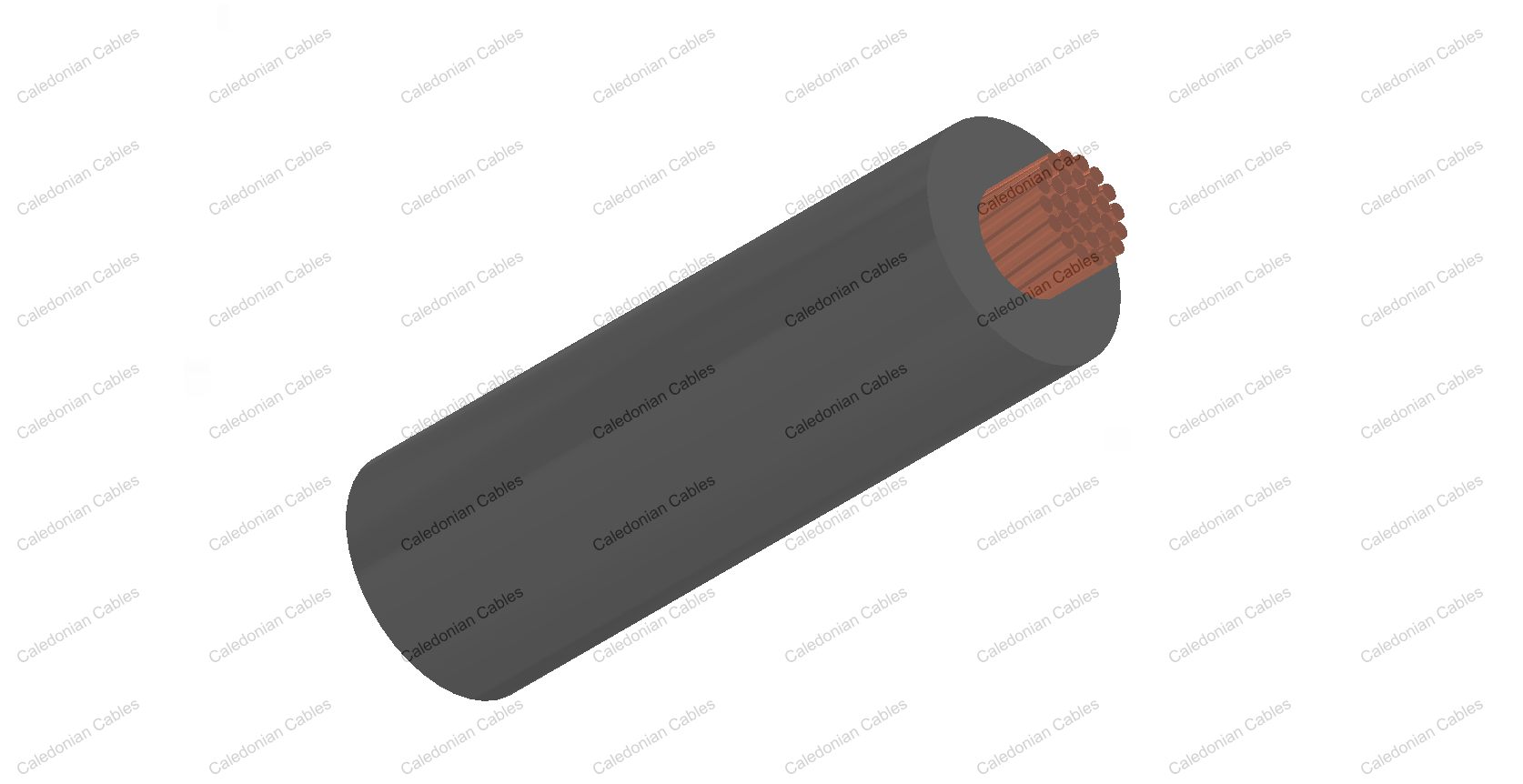

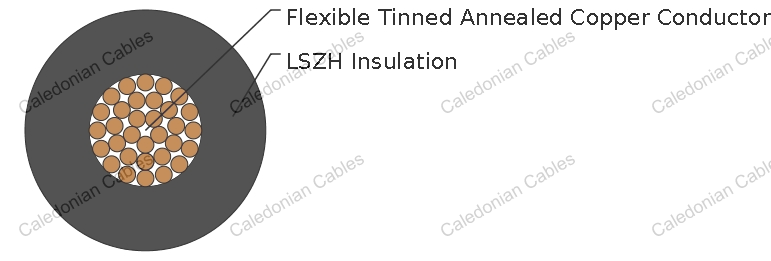

| Conductor | Flexible tinned annealed copper wires, stranded as per HD 383 (IEC 60228) class 5 |
| Insulation | LSZH elastomeric compound as defined in EN 50264-1 (EI 101 to EI 104) |
Electrical & Mechanical Properties
| Nominal Voltage | 0.6/1 kV or 1.8/3 kV |
| Maximum Conductor Temperature | 90°C ( fixed installation ) |
| Minimum Permissible Ambient Temperature | -25°C/-40°C ( fixed installation ) |
| Bending Radius | 3 x Overall Diameter (D<12mm) |
| 4 x Overall Diameter (D>12mm) |
Chemical & Environmental Properties
| EN 60684-2 | No fluorine |
| EN 50305; EN 60811-2-1 | Resistance to mineral oil & fuel oil, acid & alkali |
| EN 50305 | Resistance to ozone |
Fire Performance for Rolling Stock Application
| EN 50306-2 | Hazard levels HL1, HL2, HL3 |
| DIN 5510-2 | Protection level 1/2/3/4 |
| BS 6853 | Interior use 1a, 1b, II; Exterior use 1a, 1b, II |
| NF F 16-101 | F0 |
| EN45545-2 | R15 Interior/ R16 Exterior HL1, HL2, HL3 |
Fire Performance in General
| EN 50265-2-1; IEC 60332-1-2; NF C 32-070 2.1 (C2) | Vertical flame propogation for a single insulated wire or cable |
| EN 50266-2-4 + EN 50305; IEC 60332-3-24; NF C 32-070 2.2 (C1); VDE 0472 Teil 804 | Vertical flame spread of vertically mounted bunched wires or cables |
| EN 50268-2; IEC 61034-2; NF C 32-073 ; NF C 20-902; NF F 16 101; VDE 0472 Teil 816 | Low Smoke Emission |
| EN 50267-2-1; IEC 60754-1; NF C 32-074; NF C 20-454; VDE 0472 Teil 815 | Halogen Free |
| EN 50267-2-2/3; IEC 60754-2; NF C 32-074; NF C 20-453; VDE 0472 Teil 813 | Low Corrosivity (Acidity & Conductivity) |
| EN 50305; NF X 70-100; NF F 63 808; TM1-04; BS6853 | Low Toxicity |
| NF F 63 808; BS6853; NF F 16 101 | Smoke index |
| EN45545-2 | Requirement for fire behavior of materials & components R15/R16 |
FRL-SW-1SU 0.6/1 kV
| Nominal Cross-Sectional Area | Conductor Diameter (a) | Min. Mean Thickness of Insulation | Overall Diameter | Weight | Max. Conductor Resistance | Min. Insulation Resistance | ||
|---|---|---|---|---|---|---|---|---|
| min | max | 20°C | 20°C | 90°C | ||||
| mm² | mm | mm | mm | mm | kg/km | Ω/km | MΩ x km | MΩ x km |
| 1.0 | 1.25 | 0.8 | 2.8 | 3.2 | 18 | 20 | 65 | 0.65 |
| 1.5 | 1.5 | 0.8 | 3.0 | 3.5 | 20 | 13.7 | 55 | 0.55 |
| 2.5 | 1.95 | 0.8 | 3.4 | 3.9 | 30 | 8.21 | 50 | 0.5 |
| 4.0 | 2.5 | 0.8 | 3.9 | 4.6 | 50 | 5.09 | 40 | 0.4 |
| 6.0 | 3.0 | 0.9 | 4.6 | 5.4 | 70 | 3.39 | 35 | 0.35 |
| 10 | 3.9 | 1.1 | 5.8 | 6.8 | 130 | 1.95 | 30 | 0.3 |
| 16 | 5.0 | 1.1 | 7.2 | 8.5 | 170 | 1.24 | 30 | 0.3 |
| 25 | 6.4 | 1.3 | 8.6 | 10.0 | 260 | 0.795 | 30 | 0.3 |
| 35 | 7.7 | 1.3 | 10.2 | 11.5 | 350 | 0.565 | 25 | 0.25 |
| 50 | 9.2 | 1.5 | 11.6 | 13.5 | 500 | 0.393 | 25 | 0.25 |
| 70 | 11.0 | 1.5 | 13.3 | 15.5 | 690 | 0.277 | 20 | 0.2 |
| 95 | 12.5 | 1.6 | 14.9 | 17.4 | 910 | 0.210 | 20 | 0.2 |
| 120 | 14.2 | 1.6 | 16.5 | 19.3 | 1120 | 0.164 | 20 | 0.2 |
| 150 | 15.8 | 1.9 | 18.5 | 21.7 | 1430 | 0.132 | 15 | 0.15 |
| 185 | 17.5 | 1.9 | 20.1 | 23.6 | 1720 | 0.108 | 15 | 0.15 |
| 240 | 20.1 | 2.1 | 22.9 | 25.8 | 2290 | 0.0817 | 15 | 0.15 |
| 300 | 22.5 | 2.2 | 25.4 | 29.7 | 2810 | 0.0654 | 10 | 0.1 |
| 400 | 25.8 | 2.3 | 28.7 | 33.6 | 3690 | 0.0495 | 10 | 0.1 |
FRL-SW-3SU 1.8/3 kV
| Nominal Cross-Sectional Area | Conductor Diameter (a) | Min. Mean Thickness of Insulation | Overall Diameter | Weight | Maxi. Conductor Resistance | Min. Insulation Resistance | ||
|---|---|---|---|---|---|---|---|---|
| min | max | 20℃ | 20°C | 90°C | ||||
| mm² | mm | mm | mm | mm | kg/km | Ω/km | MΩ x km | MΩ x km |
| 1.5 | 1.5 | 2.5 | 6.2 | 7.3 | 70 | 13.70 | 120 | 1.2 |
| 2.5 | 1.95 | 2.5 | 6.6 | 7.8 | 90 | 8.21 | 100 | 1.0 |
| 4.0 | 2.5 | 2.5 | 7.1 | 8.4 | 110 | 5.09 | 90 | 0.9 |
| 6.0 | 3.0 | 2.5 | 7.6 | 8.9 | 130 | 3.39 | 80 | 0.8 |
| 10 | 3.9 | 2.5 | 8.4 | 9.9 | 190 | 1.95 | 65 | 0.65 |
| 16 | 5.0 | 2.5 | 9.5 | 11.1 | 250 | 1.24 | 55 | 0.55 |
| 25 | 6.4 | 2.5 | 10.8 | 12.7 | 330 | 0.795 | 45 | 0.45 |
| 35 | 7.7 | 2.5 | 12.0 | 14.1 | 430 | 0.565 | 40 | 0.4 |
| 50 | 9.2 | 2.5 | 13.4 | 15.7 | 570 | 0.393 | 35 | 0.35 |
| 70 | 11.0 | 2.5 | 15.1 | 17.7 | 760 | 0.277 | 30 | 0.3 |
| 95 | 12.5 | 2.7 | 16.9 | 19.8 | 980 | 0.210 | 30 | 0.3 |
| 120 | 14.2 | 2.7 | 18.5 | 21.7 | 1210 | 0.164 | 25 | 0.25 |
| 150 | 15.8 | 2.7 | 20.0 | 23.4 | 1500 | 0.132 | 20 | 0.2 |
| 185 | 17.5 | 2.7 | 21.6 | 25.3 | 1800 | 0.1080 | 20 | 0.2 |
| 240 | 20.1 | 2.7 | 24.1 | 28.2 | 2360 | 0.0817 | 20 | 0.2 |
| 300 | 22.5 | 2.7 | 26.3 | 30.8 | 2840 | 0.0654 | 15 | 0.15 |
| 400 | 25.8 | 2.9 | 29.8 | 34.9 | 3800 | 0.0495 | 15 | 0.15 |
(a) = for information, indicative only
