FIREROL Standard Wall Single Core Screened & Sheathed Cables 1.8/3 kV or 3.6/6 kV
EN 50264-2-1 (FRL-SW-3S-OS, FRL-SW-6S-OS)
Application
-Used as power and control cable for protected installations inside and outside of rail and transport vehicles, where handling and installation cost are an important factor.
-Used in control, auxillary and main circuit wiring such as cable harnesses, switchboards and control panels, driver desks etc.

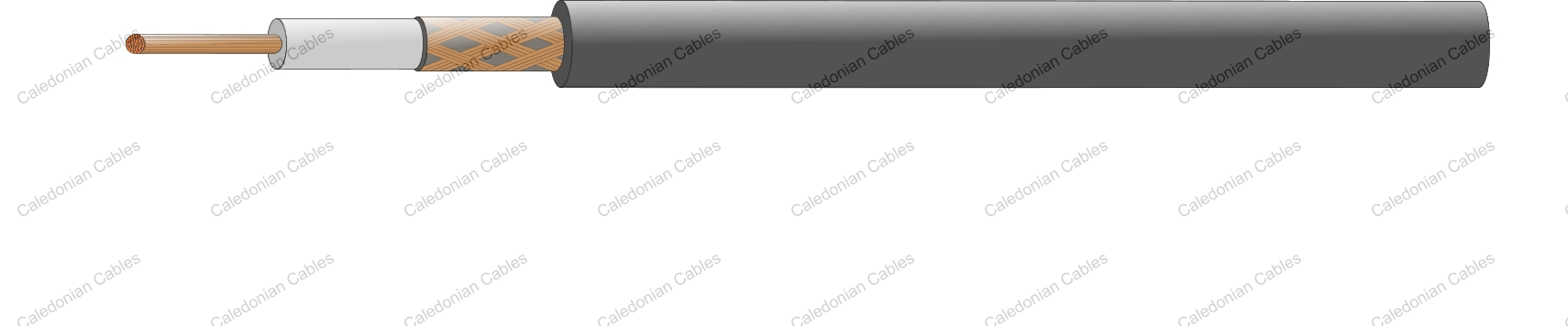

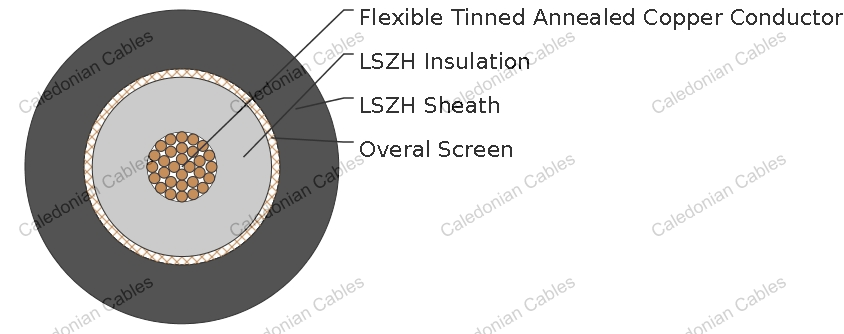

Construction
| Conductor | Flexible tinned annealed copper wires, stranded as per HD 383 (IEC 60228) class 5 |
| Insulation | LSZH elastomeric compound as defined in EN 50264-1 (EI 101 to EI 104) |
| Sheath | LSZH elastomeric compound as defined in EN 50264-1 (EM 101 to EM 104) |
Electrical & Mechanical Properties
| Nominal Voltage | 1.8/3 kV or 3.6/6 kV |
| Maximum Conductor Temperature | 90°C ( fixed installation ) |
| Minimum Permissible Ambient Temperature | -25°C/-40°C ( fixed installation ) |
| Bending Radius | 3 x Overall Diameter (D<12mm) |
| 4 x Overall Diameter (D>12mm) |
Chemical & Environmental Propertie
| EN 60684-2 | No fluorine |
| EN 50305; EN 60811-2-1 | Resistance to mineral oil & fuel oil, acid & alkali |
| EN 50305 | Resistance to ozone |
Fire Performance for Rolling Stock Application
| EN 50306-2 | Hazard levels HL1, HL2, HL3 |
| DIN 5510-2 | Protection level 1/2/3/4 |
| BS 6853 | Interior use 1a, 1b, II; Exterior use 1a, 1b, II |
| NF F 16-101 | F0 |
| EN45545-2 | R15 Interior/ R16 Exterior HL1, HL2, HL3 |
Fire Performance in General
| EN 50265-2-1; IEC 60332-1-2; NF C 32-070 2.1 (C2) | Vertical flame propogation for a single insulated wire or cable |
| EN 50266-2-4 + EN 50305; IEC 60332-3-24; NF C 32-070 2.2 (C1); VDE 0472 Teil 804 | Vertical flame spread of vertically mounted bunched wires or cables |
| EN 50268-2; IEC 61034-2; NF C 32-073 ; NF C 20-902; NF F 16 101; VDE 0472 Teil 816 | Low Smoke Emission |
| EN 50267-2-1; IEC 60754-1; NF C 32-074; NF C 20-454; VDE 0472 Teil 815 | Halogen Free |
| EN 50267-2-2/3; IEC 60754-2; NF C 32-074; NF C 20-453; VDE 0472 Teil 813 | Low Corrosivity (Acidity & Conductivity) |
| EN 50305; NF X 70-100; NF F 63 808; TM1-04; BS6853 | Low Toxicity |
| NF F 63 808; BS6853; NF F 16 101 | Smoke index |
| EN 45545-2 | Requirement for fire behavior of matreial & components R15/R16 |
FRL-SW-3S-OS 1.8/3 kV
| Nominal Cross-Sectional Area | Conductor Diameter (a) | Min. Mean Thickness of Insulation | Min. Mean Thickness of Sheath | Overall Diameter | Min Wire Diameter of Screen | Weight | Max. Conductor Resistance | Min. Insulation Resistance | ||
|---|---|---|---|---|---|---|---|---|---|---|
| min | max | 20°C | 20°C | 90°C | ||||||
| mm² | mm | mm | mm | mm | mm | mm | kg/km | Ω/km | MΩ x km | MΩ x km |
| 1.5 | 1.5 | 1.3 | 1.4 | 7.1 | 78.2 | 0.16 | 99 | 13.70 | 960 | 9.6 |
| 2.5 | 1.95 | 1.3 | 1.4 | 7.5 | 8.7 | 0.16 | 120 | 8.21 | 850 | 8.5 |
| 4.0 | 2.5 | 1.3 | 1.4 | 8.1 | 9.4 | 0.21 | 150 | 5.09 | 750 | 7.5 |
| 6.0 | 3.0 | 1.3 | 1.4 | 8.6 | 10.0 | 0.21 | 175 | 3.39 | 670 | 6.7 |
| 10 | 3.9 | 2.2 | 1.4 | 11.1 | 12.9 | 0.21 | 290 | 1.95 | 550 | 5.5 |
| 16 | 5.0 | 2.2 | 1.4 | 12.3 | 14.2 | 0.26 | 370 | 1.24 | 450 | 4.5 |
| 25 | 6.4 | 2.2 | 1.4 | 13.6 | 15.8 | 0.26 | 480 | 0.795 | 390 | 3.9 |
| 35 | 7.7 | 2.2 | 1.4 | 14.95 | 17.25 | 0.31 | 610 | 0.565 | 350 | 3.5 |
| 50 | 9.2 | 2.2 | 1.4 | 16.35 | 19.05 | 0.31 | 770 | 0.393 | 300 | 3.0 |
| 70 | 11.0 | 2.2 | 1.5 | 18.25 | 21.25 | 0.31 | 1010 | 0.277 | 260 | 2.6 |
| 95 | 12.5 | 2.4 | 1.6 | 10.35 | 23.05 | 0.31 | 1270 | 0.210 | 250 | 2.5 |
| 120 | 14.2 | 2.4 | 1.6 | 21.85 | 25.35 | 0.31 | 1530 | 0.164 | 220 | 2.2 |
| 150 | 15.8 | 2.4 | 1.7 | 23.45 | 27.35 | 0.31 | 1870 | 0.132 | 210 | 2.1 |
| 185 | 17.5 | 2.4 | 1.7 | 24.75 | 28.85 | 0.31 | 2190 | 0.1080 | 200 | 2.0 |
| 240 | 20.1 | 2.4 | 1.8 | 27.75 | 32.35 | 0.31 | 2830 | 0.0817 | 180 | 1.8 |
| 300 | 22.5 | 2.4 | 1.9 | 30.15 | 35.15 | 0.31 | 3375 | 0.0654 | 170 | 1.7 |
| 400 | 25.8 | 2.6 | 2.0 | 33.45 | 39.05 | 0.31 | 4400 | 0.0495 | 150 | 1.5 |
FRL-SW-6S-OS 3/6 kV
| Nominal Cross-Sectional Area | Conductor Diameter (a) | Min. Mean Thickness of Insulation | Min. Mean Thickness of Sheath | Overall Diameter | Min Wire Diameter of Screen | Weight | Max. Conductor Resistance | Min. Insulation Resistance | ||
|---|---|---|---|---|---|---|---|---|---|---|
| min | max | 20°C | 20°C | 90°C | ||||||
| mm² | mm | mm | mm | mm | mm | mm | kg/km | Ω/km | MΩ x km | MΩ x km |
| 2.5 | 1.95 | 3.0 | 1.4 | 10.9 | 12.7 | 0.16 | 200 | 8.21 | 1300 | 13 |
| 4.0 | 2.5 | 3.0 | 1.4 | 11.4 | 13.3 | 0.16 | 225 | 5.09 | 1150 | 11.5 |
| 6.0 | 3.0 | 3.0 | 1.4 | 12.0 | 13.9 | 0.21 | 280 | 3.39 | 1050 | 10.5 |
| 10 | 3.9 | 3.0 | 1.4 | 12.8 | 14.9 | 0.21 | 355 | 1.95 | 850 | 8.5 |
| 16 | 5.0 | 3.0 | 1.4 | 13.8 | 16.1 | 0.21 | 420 | 1.24 | 710 | 7.1 |
| 25 | 6.4 | 3.0 | 1.4 | 15.3 | 17.8 | 0.26 | 540 | 0.795 | 630 | 6.3 |
| 35 | 7.7 | 3.0 | 1.4 | 16.5 | 19.2 | 0.26 | 658 | 0.565 | 550 | 5.5 |
| 50 | 9.2 | 3.0 | 1.5 | 18.25 | 21.25 | 0.31 | 850 | 0.393 | 500 | 5.0 |
| 70 | 11.0 | 3.0 | 1.5 | 19.95 | 23.15 | 0.31 | 1080 | 0.277 | 430 | 4.3 |
| 95 | 12.5 | 3.0 | 1.6 | 21.55 | 25.05 | 0.31 | 1320 | 0.210 | 400 | 4.0 |
| 120 | 14.2 | 3.1 | 1.7 | 23.45 | 27.35 | 0.31 | 1600 | 0.164 | 360 | 3.6 |
| 150 | 15.8 | 3.1 | 1.7 | 24.95 | 28.15 | 0.31 | 1930 | 0.132 | 340 | 3.4 |
| 180 | 17.5 | 3.2 | 1.8 | 26.95 | 31.45 | 0.31 | 2290 | 0.108 | 330 | 3.3 |
| 240 | 20.1 | 3.4 | 1.9 | 29.95 | 34.95 | 0.31 | 2970 | 0.0817 | 300 | 3.0 |
| 300 | 22.5 | 3.4 | 1.9 | 32.25 | 37.65 | 0.31 | 3565 | 0.0654 | 250 | 2.5 |
| 400 | 25.8 | 3.4 | 2.0 | 35.55 | 41.45 | 0.31 | 4620 | 0.0495 | 230 | 2.3 |
(a) = for information, indicative only
