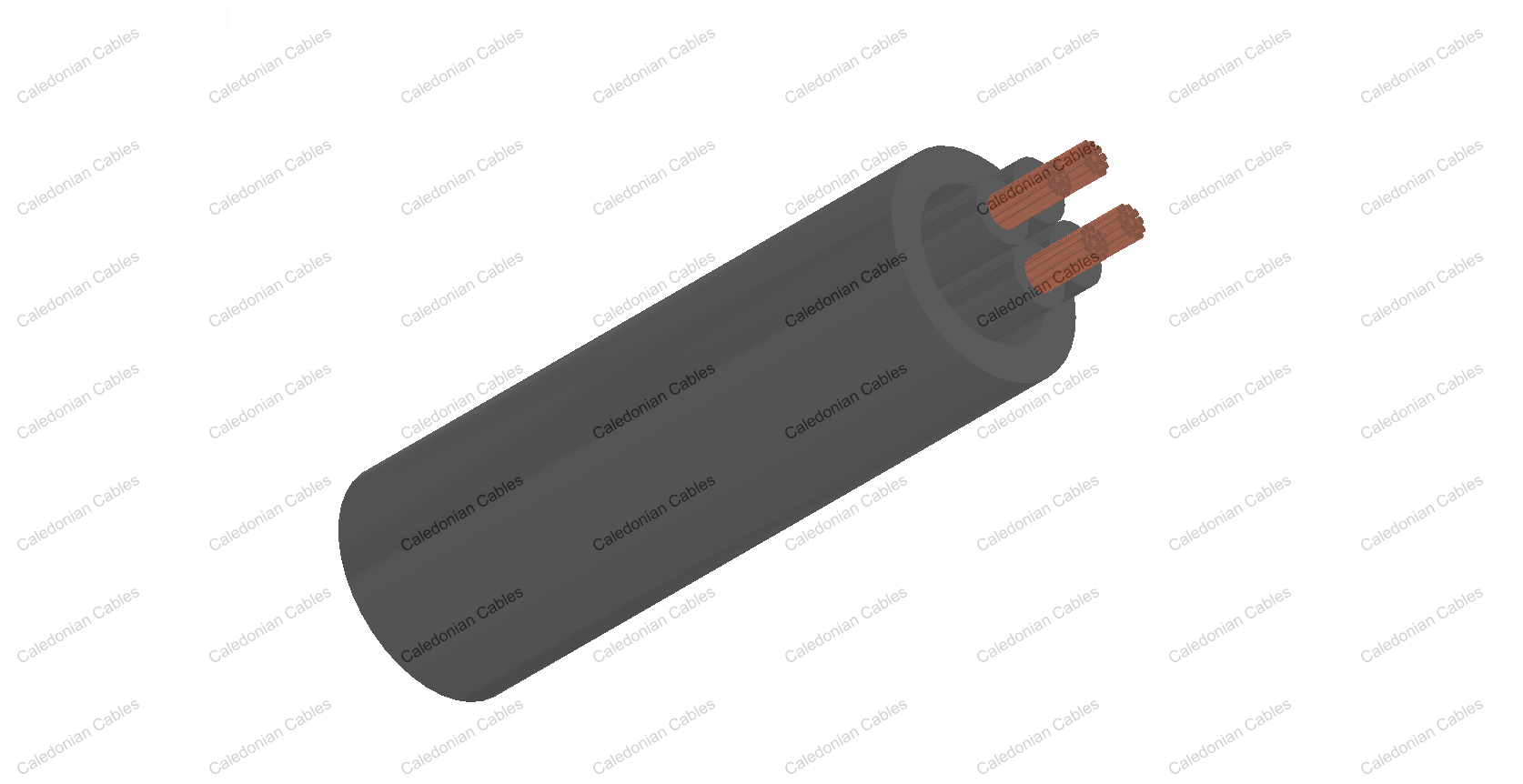

FIREROL Thin Wall Multicore Cables with Exposed Standard Wall Sheath 300/500 V
EN 50306-4 (FRL-TW-05M-ESW)
Application
-Used as signal and control cable for protected installations inside and outside of rail and transport vehicles, where space and weight are an important factor.
-Used in cable harnesses, switchboards and control panels, driver desks etc.

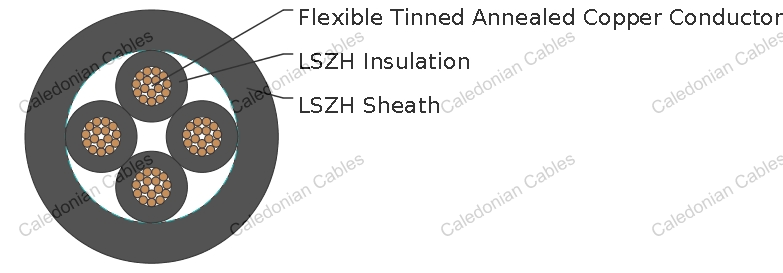

Construction
| Conductor |
Tinned annealed copper wires as defined in EN 50306-2 |
| Insulation |
LSZH special compound |
| Outer Sheath |
LSZH special compound (S2. EM101-EM104) |
Electrical & Mechanical Properties
| Nominal Voltage |
300/500 V |
| Max. Conductor Temperature |
90°C /105°C (fixed installation) |
| Min. Permissible Ambient Temperature |
-25°C/-40°C (fixed installation) |
| Bending Radius |
3 x Overall Diameter (D<12mm)
4 x Overall Diameter (D>12mm)
|
Chemical & Environmental Propertie
| EN 60684-2 |
No fluorine |
| EN 50305; EN 60811-2-1 |
Resistance to mineral oil & fuel oil, acid & alkali |
| EN 50305 |
Resistance to ozone |
Fire Performance for rolling stock application
| EN 50306-2 |
Hazard levels HL1, HL2, HL3 |
| DIN 5510-2 |
Protection level 1/2/3/4 |
| BS 6853 |
Interior use 1a, 1b, II; Exterior use 1a, 1b, II |
| NF F 16-101 |
F0 |
| EN54454-2 |
R15 Interior/ R16 Exterior HL1, HL2, HL3 |
Fire Performance in General
| EN 50265-2-1; IEC 60332-1-2; NF C 32-070 2.1 (C2) |
Vertical flame propogation for a single insulated wire or cable |
| EN 50266-2-4 + EN 50305; IEC 60332-3-24; NF C 32-070 2.2 (C1); VDE 0472 Teil 804 |
Vertical flame spread of vertically mounted bunched wires or cables |
| EN 50268-2; IEC 61034-2; NF C 32-073 ; NF C 20-902; NF F 16 101; VDE 0472 Teil 816 |
Low Smoke Emission |
| EN 50267-2-1; IEC 60754-1; NF C 32-074; NF C 20-454; VDE 0472 Teil 815 |
Halogen Free |
| EN 50267-2-2/3; IEC 60754-2; NF C 32-074; NF C 20-453; VDE 0472 Teil 813 |
Low Corrosivity (Acidity & Conductivity) |
| EN 50305; NF X 70-100; NF F 63 808; TM1-04; BS6853 |
Low Toxicity |
| NF F 63 808; BS6853; NF F 16 101 |
Smoke index |
| EN45545-2 |
Requirement for fire behavior of materials & components R15/R16 |
FRL-TW-05M-ESW 300/500 V
| Number of Cores x Nominal Cross Section |
Min. Thickness of Sheath at any Point |
Overall Diameter |
Weight |
| Min. |
Max. |
| n x mm² |
mm |
mm |
mm |
kg/km |
| 4 x 0.5 |
1.0 |
5.5 |
6.5 |
50 |
| 7 x 0.5 |
1.0 |
6.3 |
7.3 |
70 |
| 13 x 0.5 |
1.0 |
8.3 |
9.3 |
120 |
| 19 x 0.5 |
1.0 |
9.0 |
10.2 |
150 |
| 37 x 0.5 |
1.0 |
12.3 |
13.5 |
290 |
| |
| 4 x 0.75 |
1.0 |
6.0 |
7.0 |
60 |
| 7 x 0.75 |
1.0 |
6.9 |
7.9 |
90 |
| 13 x 0.75 |
1.0 |
9.1 |
10.3 |
150 |
| 19 x 0.75 |
1.0 |
10.0 |
11.2 |
200 |
| 37 x 0.75 |
1.0 |
13.2 |
14.4 |
360 |
| 48 x 0.75 |
1.0 |
14.8 |
16.4 |
460 |
| |
| 4 x 1.0 |
1.0 |
6.3 |
7.3 |
70 |
| 7 x 1.0 |
1.0 |
7.3 |
8.3 |
110 |
| 13 x 1.0 |
1.0 |
9.7 |
10.9 |
180 |
| 19 x 1.0 |
1.0 |
10.7 |
11.9 |
250 |
| 37 x 1.0 |
1.0 |
14.0 |
15.6 |
450 |
| |
| 4 x 1.5 |
1.0 |
7.4 |
8.4 |
100 |
| 7 x 1.5 |
1.0 |
8.6 |
9.8 |
150 |
| 13 x 1.5 |
1.0 |
11.7 |
12.9 |
270 |
| 19 x 1.5 |
1.0 |
13.0 |
14.2 |
370 |
| 37 x 1.5 |
1.0 |
17.2 |
18.8 |
690 |
| |
| 2 x 2.5 |
1.0 |
7.7 |
8.7 |
90 |
| 3 x 2.5 |
1.0 |
8.1 |
9.1 |
120 |
| 4 x 2.5 |
1.0 |
8.8 |
10.0 |
150 |
