FIREROL Thin Wall Multicore Overall Screened Cables 300/500 V
EN 50306-3 (FRL-TW-05M-OS)
Application
-Used as signal and control cable for protected installations inside and outside of rail and transport vehicles, where space and weight are an important factor.
-Used in cable harnesses, switchboards and control panels, driver desks etc.

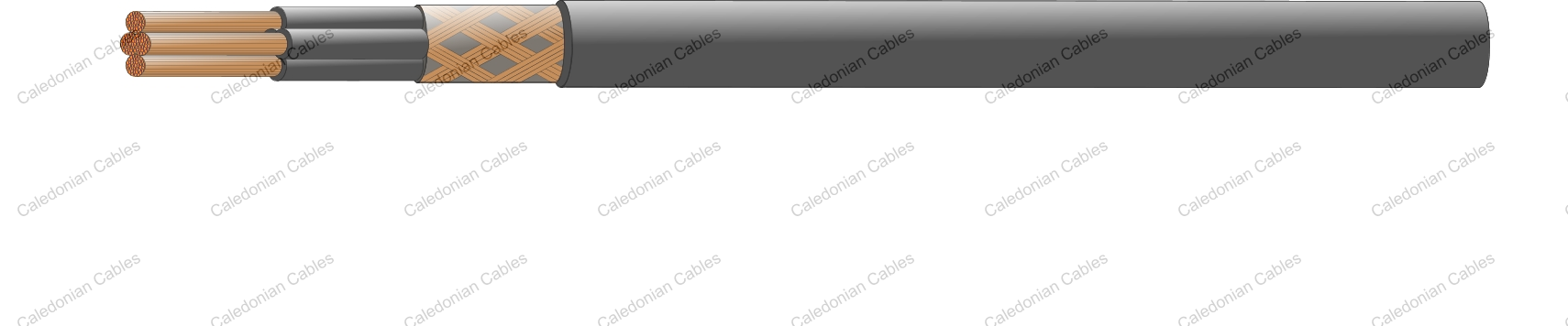

Construction

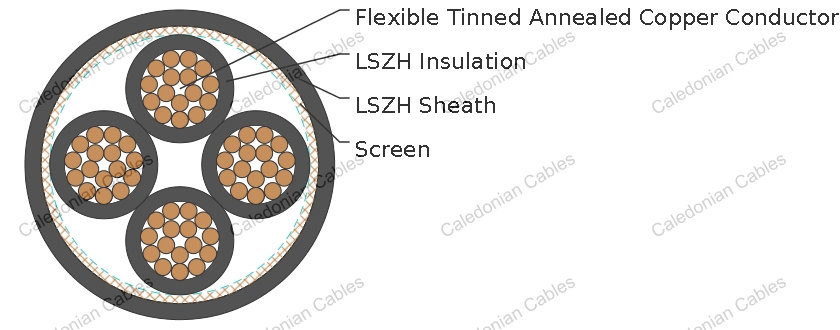

| Conductor | Tinned annealed copper wires as defined in EN 50306-2 |
| Insulation | LSZH special compound |
| Overal Screen | Tinned annealed copper wires |
| Outer Sheath | LSZH special compound (S1 & S2) |
Electrical & Mechanical Properties
| Nominal Voltage | 300/500 V |
| Max. Conductor Temperature | 90°C /105°C (fixed installation) |
| Min. Permissible Ambient Temperature | -25°C/-40°C (fixed installation) |
| Bending Radius |
Fixed installation: 3 x Overall Diameter (D<12mm); 4 x Overall Diameter (D>12mm) Flexible installation: 5 x Overall Diameter (D<12mm); 6 x Overall Diameter (D>12mm) |
Chemical & Environmental Propertie
| EN 60684-2 | No fluorine |
| EN 50305; EN 60811-2-1 | Resistance to mineral oil & fuel oil, acid & alkali |
| EN 50305 | Resistance to ozone |
Fire Performance for rolling stock application
| EN 50306-2 | Hazard levels HL1, HL2, HL3 |
| DIN 5510-2 | Protection level 1/2/3/4 |
| BS 6853 | Interior use 1a, 1b, II; Exterior use 1a, 1b, II |
| NF F 16-101 | F0 |
| EN54454-2 | R15 Interior/ R16 Exterior HL1, HL2, HL3 |
Fire Performance in General
| EN 50265-2-1; IEC 60332-1-2; NF C 32-070 2.1 (C2) | Vertical flame propogation for a single insulated wire or cable |
| EN 50266-2-4 + EN 50305; IEC 60332-3-24; NF C 32-070 2.2 (C1); VDE 0472 Teil 804 | Vertical flame spread of vertically mounted bunched wires or cables |
| EN 50268-2; IEC 61034-2; NF C 32-073 ; NF C 20-902; NF F 16 101; VDE 0472 Teil 816 | Low Smoke Emission |
| EN 50267-2-1; IEC 60754-1; NF C 32-074; NF C 20-454; VDE 0472 Teil 815 | Halogen Free |
| EN 50267-2-2/3; IEC 60754-2; NF C 32-074; NF C 20-453; VDE 0472 Teil 813 | Low Corrosivity (Acidity & Conductivity) |
| EN 50305; NF X 70-100; NF F 63 808; TM1-04; BS6853 | Low Toxicity |
| NF F 63 808; BS6853; NF F 16 101 | Smoke index |
| EN45545-2 | Requirement for fire behavior of materials & components R15/R16 |
FRL-TW-05M-OS 300/500 V
| Number of Cores x Nominal Cross Section | Min. Thickness of Sheath at any Point | Overall Diameter | Weight | |
|---|---|---|---|---|
| Min. | Max. | |||
| n x mm² | mm | mm | mm | kg/km |
| 2 x 0.5 | 0.20 | 3.5 | 4.3 | 28 |
| 3 x 0.5 | 0.20 | 3.7 | 4.5 | 35 |
| 4 x 0.5 | 0.20 | 4.0 | 5.0 | 40 |
| 2 x 0.75 | 0.20 | 3.9 | 4.7 | 35 |
| 3 x 0.75 | 0.20 | 4.0 | 5.0 | 40 |
| 4 x 0.75 | 0.20 | 4.5 | 5.5 | 60 |
| 2 x 1 | 0.20 | 4.2 | 5.2 | 40 |
| 3 x 1 | 0.20 | 4.5 | 5.5 | 55 |
| 4 x 1 | 0.20 | 5.0 | 6.0 | 70 |
| 2 x 1.5 | 0.20 | 5.1 | 6.1 | 60 |
| 3 x 1.5 | 0.20 | 5.4 | 6.4 | 80 |
| 4 x 1.5 | 0.20 | 6.0 | 7.0 | 100 |
| 2 x 2.5 | 0.20 | 6.4 | 7.4 | 90 |
| 3 x 2.5 | 0.20 | 6.8 | 7.8 | 120 |
| 4 x 2.5 | 0.20 | 7.5 | 8.5 | 140 |
