205℉/96℃ PP/NBR Round Electrical Submersible Pump Cable

Applications

These cables are designed for transmitting power to the submersible motor in the oil industry, suitable for installed down well in the oil industry.

Standard

  • IEEE Std. 1019
  • API RP 11S5
  • API RP 11S6

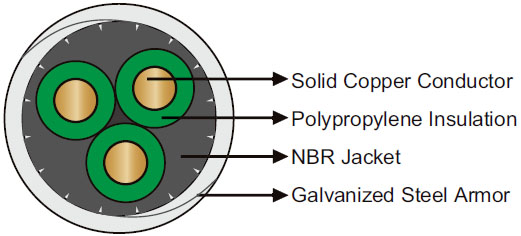

Construction

205℉/96℃ PP/NBR Round Electrical Submersible Pump Cable
Conductor Solid/stranded copper conductor.
Insulation Polypropylene insulation.
Jacket Oil-resistant nitrile rubber.
Armor Galvanized steel.

Dimensions and Weight

3kV

Cable Type Conductor Size Conductor O.D. Insulation Thickness Overall O.D. Weight
  AWG mm^2 inches mm inches mm inches mm lbs/kft kg/km
QYPNY-96-3kV-3G10S - 10 0.14 3.556 0.075 1.9 1.03 26.1 724 1077
QYPNY-96-3kV-3G6 6 13.3 0.162 4.115 0.075 1.9 1.09 27.8 832 1238
QYPNY-96-3kV-3G16S - 16 0.178 4.521 0.075 1.9 1.14 29.0 917 1364
QYPNY-96-3kV-3G4 4 21.1 0.204 5.182 0.075 1.9 1.22 31.0 1066 1587
QYPNY-96-3kV-3G25S - 25 0.222 5.639 0.075 1.9 1.27 32.3 1178 1752
QYPNY-96-3kV-3G2 2 33.6 0.258 6.553 0.075 1.9 1.38 35.1 1420 2114
QYPNY-96-3kV-3G1 1 42.4 0.289 7.341 0.075 1.9 1.47 37.4 1651 2456
QYPNY-96-3kV-3G1/0 1/0 53.5 0.368 9.347 0.075 1.9 1.71 43.4 2326 3462
QYPNY-96-3kV-3G2/0 2/0 67.4 0.414 10.516 0.075 1.9 1.84 46.8 2779 4135

5kV

Cable Type Conductor Size Conductor O.D. Insulation Thickness Overall O.D. Weight
  AWG mm^2 inches mm inches mm inches mm lbs/kft kg/km
QYPNY-96-5kV-3G10S - 10 0.14 3.556 0.09 2.3 1.12 28.5 806 1199
QYPNY-96-5kV-3G6 6 13.3 0.162 4.115 0.09 2.3 1.19 30.2 917 1365
QYPNY-96-5kV-3G16S - 16 0.178 4.521 0.09 2.3 1.24 31.4 1005 1495
QYPNY-96-5kV-3G4 4 21.1 0.204 5.182 0.09 2.3 1.31 33.4 1158 1724
QYPNY-96-5kV-3G25S - 25 0.222 5.639 0.09 2.3 1.37 34.7 1272 1894
QYPNY-96-5kV-3G2 2 33.6 0.258 6.553 0.09 2.3 1.47 37.4 1521 2263
QYPNY-96-5kV-3G1 1 42.4 0.289 7.341 0.09 2.3 1.57 39.8 1756 2613
QYPNY-96-5kV-3G1/0 1/0 53.5 0.368 9.347 0.09 2.3 1.80 45.7 2444 3637
QYPNY-96-5kV-3G2/0 2/0 67.4 0.414 10.516 0.09 2.3 1.94 49.2 2903 4321
