Halogen Free Torsion Resistant Fire Alarm Cable 24V
Application
These fire alarm cables are designed for the torsion applications in the loop section of wind turbines.
Standards

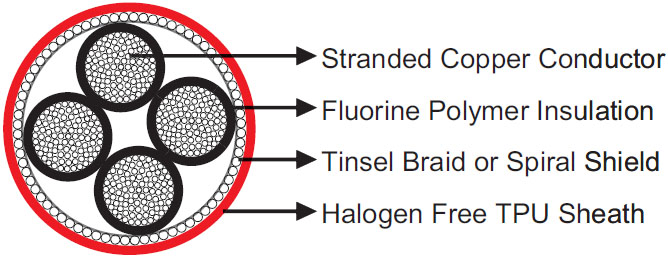

Construction
| Conductor |
Stranded copper wires, class 6 according to DIN VDE 0295/ IEC 60228 |
| Insulation |
Fluorine polymer |
| Screen |
Tinsel braid or spiral shield |
| Sheath |
Flame retardant halogen-free TPU |
Technical Data
| Rated Voltage U0/U(Um) |
24V |
| Operating Temperatures |
-50℃~+90℃ |
| Minimum Bending Radius |
7.5×OD |
| Torsion Application |
+/-1080°/5m |
| Flame Retardant |
IEC 60332-3 |
| Halogen Free |
IEC 60754 |
| Oil Resistant |
Yes |
| Abrasion Resistant |
Yes |
Dimensions and Weight
| Construction |
Nominal Overall Diameter |
Nominal Weight |
| No. of cores×mm^2 |
mm |
kg/km |
| 4×0.75 |
6.6 |
82 |
