H07ZZ-F & UL/CSA 1000V EPR/XLEVA Torsion Resistant Cable

Application

These halogen free cables with increased tolerance to torsion application, improved behaviour against abrasion and extended temperature, UV and ozone resistant are specially designed for wind turbines.

Standards

  • UL/CSA 22.2
  • UL 758
  • HD 22.13

Construction

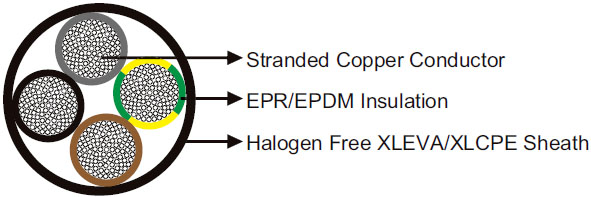

H07ZZ-F & UL/CSA 1000V EPR/XLEVA Torsion Resistant Cable
Conductor Stranded annealed bare copper, class 5 according to DIN VDE 0295/HD 383/IEC 60228.
Insulation Special thermoset EPR for high temperature. Special cross-linked improved for EI8 and EI7 EPDM can be offered upon request.
Sheath Special halogen free thermoset XLEVA. High mechanical performance special crosslinked EM8 synthetic halogen free rubber based on CPE can be offered upon request.

Technical Data

Rated Voltage U0/U (Um) CENELEC 450/750V; UL/CSA 1000V
Operating Temperatures -40℃~+90℃
Maximum Permissible Tensile Load 15 N/mm^2
Minimum Bending Radius flexing: 6×OD; fixed: 4×OD
Torsion Application +/-150°/m
Short-circuit Temperature 250℃
Flame Retardant IEC 60332-1/IEC 60332-3
Halogen Free IEC 60754
Smoke Density LSF EN 61034/IEC 61034
Oil Resistant Yes
Ozone Resistant Yes
UV Resistant Yes
Water Resistant Yes
Impact Resistant Yes

Dimensions and Weight

Construction Nominal Overall Diameter Nominal Weight
No. of cores×mm^2 mm kg/km
1×25 13.5 371
1×35 15.0 482
1×50 18.7 730
1×70 19.3 888
1×95 23.0 1220
1×120 25.5 1540
1×150 28.8 1810
1×185 31.4 2210
1×240 33.8 2750
1×300 37.7 3520
1×400 41.4 4510
3×120 56.0 5200
3×150 61.5 6400
3×240 72.0 9780
3×25 30.0 1420
3×35 35.3 1850
3×50 39.8 2480
3×70 43.8 3180
3×95 49.0 4260
3×120 52.8 5490
4G25 32.8 1870
4G35 36.3 2320
4G50 42.5 3150
4G70 48.2 4240
4G95 53.5 5480
4G120 58.3 6950

G: with green-yellow earth core ×: without green-yellow earth core
