N2XH 0.6/1kV LSOH Power Cable
Application
These cables are designed for energy supply, suitable for fixed installation in dry, damp or wet environments; in, above, on and beneath plaster as well as in masonary walls and in concrete, also suitable for outdoor applications and in underground by using in conduits or tubes.
Standards

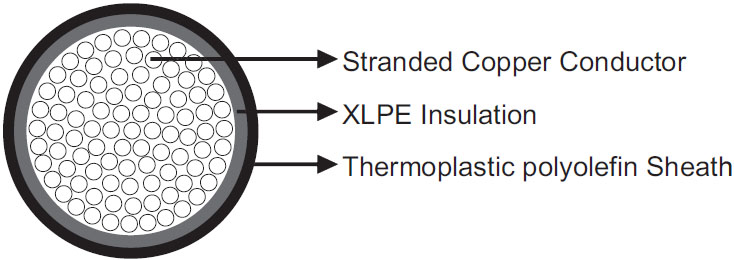

Construction
| Conductor |
Bare copper conductor wire according to VDE 0295/IEC 60228 |
| Insulation |
Halogen free cross-linked polyethylene (XLPE), Type 2XI1 |
| Inner Covering |
Overall filled inner sheath covered by filling compound or wrapped tape |
| Sheath |
Thermoplastic polyolefin, Type HM4 |
Technical Data
| Rated Voltage Uo/U (Um) |
0.6/1kV |
| Operating Temperatures |
-30℃~+ 90℃ |
| Minimum Bending Radius |
15×OD |
| Flame Retardant |
DIN VDE 0482 part 266-2/BS 4066 part 3/EN 50266-2/IEC 60332-3 |
| Halogen Free |
DIN VDE 0482 part 267/EN 50267-2-1/IEC 60754 |
| Corrosive Gases |
DIN VDE 0482 part 267/EN 50267-2-2/IEC 60754 |
| Smoke Density |
DIN VDE 0482 part 268/HD 606/EN 50268-1+2/ IEC 61034/BS 7622 part 1+2 |
Dimensions and Weight
| Construction |
Nominal Overall Diameter |
Nominal Weight |
| No. of cores×mm^2 |
mm |
kg/km |
| 1×185 rm |
25.0 |
1910 |
| 1×240 rm |
28.0 |
2370 |
| 1×300 rm |
30.0 |
2970 |
rm: round conducter, multi wire
