NA2XS(F)2Y RE/RM Medium Voltage Power Cable
Application
These cables are commonly used in wind turbines, suitable for indoor installation and in cable ducts, outdoors, underground and in water.
Standards
- IEC 60502-2
- DIN VDE 0276 part 620

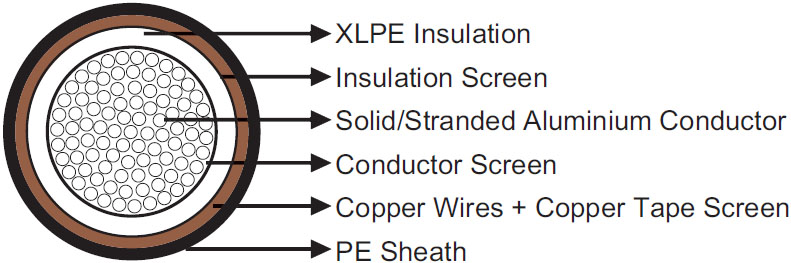

Construction
| Conductor |
Circular solid (RE) or stranded (RM) aluminium conductor |
| Conductor Screen |
Semiconducting compound |
| Insulation |
XLPE |
| Insulation Screen |
Semiconducting compound |
| Tape |
Semiconducting swellable tape |
| Screen |
Braiding of copper wires with copper tape |
| Tape |
Separation tape |
| Sheath |
PE |
Technical Data
| Rated Voltage Uo/U (Um) |
6/10 kV, 12/20 kV, 18/30 kV |
| Operating Temperatures |
-40℃~+90℃ |
| Minimum Bending Radius |
15×OD |
| Short-circuit Temperature |
250℃ |
| Longitudinally Water-Tight |
Yes |
| Halogen Free |
Yes |
| Lead Free |
Yes |
Dimensions and Weight
6/10kV
| Construction |
Nominal Overall Diameter |
Nominal Weight |
| No. of cores×mm^2 |
mm |
kg/km |
| 1×70 re |
26.5 |
760 |
| 1×95 re |
26.5 |
860 |
| 1×120 re |
28.5 |
930 |
| 1×150 re |
29.5 |
1130 |
| 1×185 re |
31.5 |
1230 |
| 1×240 re |
33.5 |
1470 |
| 1×300 re |
36.5 |
1670 |
| 1×400 re |
40.5 |
2060 |
| 1×500 re |
43.5 |
2400 |
| 1×630 re |
45.5 |
2790 |
| 1×800 re |
49.5 |
3340 |
| 1×1000 re |
53.5 |
4000 |
| 1×35 rm |
25.5 |
600 |
| 1×50 rm |
26.5 |
670 |
| 1×70 rm |
28.5 |
770 |
| 1×95 rm |
29.0 |
880 |
| 1×120 rm |
31.0 |
950 |
| 1×150 rm |
32.0 |
1150 |
| 1×185 rm |
34.0 |
1250 |
| 1×240 rm |
36.0 |
1500 |
| 1×300 rm |
38.5 |
1700 |
| 1×400 rm |
42.5 |
2100 |
| 1×500 rm |
45.5 |
2450 |
| 1×630 rm |
47.5 |
2850 |
| 1×800 rm |
52.5 |
3490 |
| 1×1000 rm |
56.5 |
4080 |
12/20 kV
| Construction |
Nominal Overall Diameter |
Nominal Weight |
| No. of cores×mm^2 |
mm |
kg/km |
| 1×70 re |
30.5 |
910 |
| 1×95 re |
31.5 |
1030 |
| 1×120 re |
32.5 |
1130 |
| 1×150 re |
33.5 |
1320 |
| 1×185 re |
35.5 |
1470 |
| 1×240 re |
38.5 |
1720 |
| 1×300 re |
40.5 |
1960 |
| 1×400 re |
43.5 |
2300 |
| 1×500 re |
46.5 |
2740 |
| 1×630 re |
49.5 |
3070 |
| 1×800 re |
53.5 |
3680 |
| 1×1000 re |
57.5 |
4360 |
| 1×50 rm |
30.5 |
820 |
| 1×70 rm |
32.5 |
930 |
| 1×95 rm |
33.5 |
1050 |
| 1×120 rm |
35.0 |
1150 |
| 1×150 rm |
36.0 |
1350 |
| 1×185 rm |
38.0 |
1500 |
| 1×240 rm |
41.0 |
1750 |
| 1×300 rm |
43.0 |
2000 |
| 1×400 rm |
46.0 |
2350 |
| 1×500 rm |
49.0 |
2800 |
| 1×630 rm |
51.5 |
3140 |
| 1×800 rm |
57.5 |
3840 |
| 1×1000 rm |
60.5 |
4460 |
18/30 kV
| Construction |
Nominal Overall Diameter |
Nominal Weight |
| No. of cores×mm^2 |
mm |
kg/km |
| 1×70 re |
34.5 |
1180 |
| 1×95 re |
35.5 |
1320 |
| 1×120 re |
37.5 |
1420 |
| 1×150 re |
38.5 |
1670 |
| 1×185 re |
40.5 |
1810 |
| 1×240 re |
42.5 |
2010 |
| 1×300 re |
45.5 |
2300 |
| 1×400 re |
48.5 |
2740 |
| 1×500 re |
51.5 |
3140 |
| 1×630 re |
55.5 |
3480 |
| 1×800 re |
59.5 |
4100 |
| 1×1000 re |
63.5 |
4800 |
| 1×50 rm |
35.0 |
1100 |
| 1×70 rm |
37.0 |
1200 |
| 1×95 rm |
38.0 |
1350 |
| 1×120 rm |
40.0 |
1450 |
| 1×150 rm |
41.0 |
1700 |
| 1×185 rm |
43.0 |
1850 |
| 1×240 rm |
45.0 |
2050 |
| 1×300 rm |
48.0 |
2350 |
| 1×400 rm |
51.0 |
2800 |
| 1×500 rm |
54.0 |
3200 |
| 1×630 rm |
57.5 |
3570 |
| 1×800 rm |
62.5 |
4280 |
| 1×1000 rm |
66.5 |
4970 |
