Applications :

• The cables are designed for permanent installation inside of rolling stock to connect fixed parts. A typical application is a communication system in a ocomotive. The system uses a wire backed bus system to the TCN standard for control and instrumentation and for diagnostics. This bus system consists of the rail bus WTB (Wired Train Bus) and the road bus MVB (Multifunction Vehicle Bus) which are connected via redundant gateways.

Standards :

• DIN 5510-2



Construction :

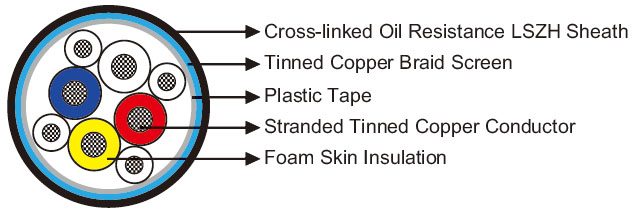

• Conductors : Stranded tinned copper conductor according to IEC 60228 class 5.
• Insulation : Foam skin-composite PE made of inner cellular layer and outer solid skin.
• Core Wrapping : Plastic tape(s).
• EMC Screen : Tinned copper braid.
• Outer Sheath : Cross-linked oil resistant LSZH compound.

Electrical Characteristics at 20 °C :

• Nominal Cross Section	mm²	0.5
  Maximum Conductor Resistance	Ω/km	41
  Impedance@0.75-3MHz	Ω	120+/-12
  Maximum Attenuation @1.5MHz	dB/km	17
  Maximum Attenuation @3MHz	dB/km	25
  Maximum Transfer Impedance	mΩ/m	20
  Nominal Voltage Rating	V	300

Mechanical and Thermal Properties :

• Minimum Bending Radius : 6×OD (single); 10×OD (multiple).
• Temperature Range : -40°C to +100°C (during operation); -20°C +50°C (during installation).

Dimensions and Weight :



Cable Code	No. of cores& Nominal Conductor Cross Sectional Area No.×mm²	Nominal Diameter of Strands No/mm	Nominal Sheath Thickness mm	Nominal Overall Diameter mm	Nominal Weight kg/km
RD-MVB-02YSCH-1Q0.5S+4C0.25S	1×4×0.5+4×1×0.25	19/0.18	1.2	7.9	95







Impact Resistant	Highly Flexible	UV Resistant	Oil Resistant	Weather Resistant	Low Toxicity





Flame Retardant NF C32-070-2.1(C2) IEC 60332-1/EN 50265-2-1	Fire Retardant NF C32-070-2.2(C1) IEC 60332-3/EN50266	Zero Halogen IEC 60754-1/NF C20-454 EN 50267-2-1	Low Smoke Emission IEC 61034/NFC20-902 EN 50268/NF C32-073	Low Corrosivity EN 50267-2-2/NF C32-074 IEC 60754-2/NF C20-453
