WTB (Wired Train Bus)/MVB (Multifunction Vehicle Bus) Cables



Applications :

  • The cables are used as connecting cables to transmit digital signals inside railway rolling stocks. The communication system in a locomotive uses a wire backed bus system to the TCN standard for control and instrumentation and for diagnostics. This bus system consists of the rail bus WTB (Wired Train Bus) and the road bus MVB (Multifunction Vehicle Bus) which are connected via redundant gateways.

Standards :

  • DIN 5510-1




Construction :

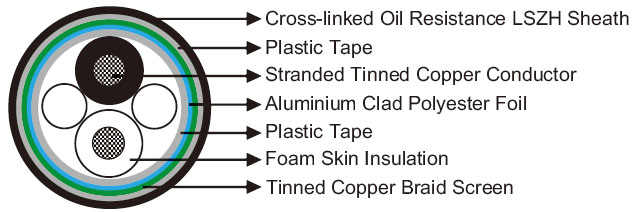

  • Conductors : Stranded tinned copper conductor according to IEC 60228 class 5.
  • Insulation : Foam skin-composite PE made of inner cellular layer and outer solid skin.
  • Cable Element : Twisted pair.
  • Core Wrapping : Plastic tape(s).
  • EMC Screen1 : Aluminium clad polyester foil.
  • EMC Screen2 : Tinned copper braid.
  • Core Wrapping : Plastic tape(s).
  • Outer Sheath : Cross-linked oil resistant LSZH compound.

Electrical Characteristics at 20 °C :

  • Nominal Cross Section/AWG mm² 0.62/20
    Maximum Conductor Resistance Ω/km 33.1
    Impedance@0.5-2MHz Ω 120+/-12
    Maximum Attenuation @1MHz dB/km 10
    Maximum Attenuation @2MHz dB/km 15
    Nominal Voltage Rating V 300

Mechanical and Thermal Properties :

  • Minimum Bending Radius : 6×OD (single); 12×OD (multiple).
  • Temperature Range : -40°C to +100°C (during operation); -20°C +50°C (during installation).

Dimensions and Weight :



Cable Code No. of cores& Nominal
Conductor Cross
Sectional Area
No.×mm²
Nominal Diameter of Strands
No/mm
Nominal Sheath
Thickness
mm
Nominal Overall
Diameter
mm
Nominal Weight
kg/km
RD-WTB/MVB--02YS(ST+C)H-1P20A 1×2×0.62 19/0.2 1.2 8.3 80







Impact Resistant
Highly Flexible
UV Resistant
Oil Resistant
Weather Resistant
Low Toxicity





Flame Retardant
NF C32-070-2.1(C2)
IEC 60332-1/EN 50265-2-1
Fire Retardant
NF C32-070-2.2(C1)
IEC 60332-3/EN50266
Zero Halogen
IEC 60754-1/NF C20-454
EN 50267-2-1
Low Smoke Emission
IEC 61034/NFC20-902
EN 50268/NF C32-073
Low Corrosivity
EN 50267-2-2/NF C32-074
IEC 60754-2/NF C20-453
