0.45/0.75KV Single Core Standard Wall Traction Cables
![](../../images/line.jpg)
Applications :
- Single core power and control cable designed for protected, fixed installation inside and outside railway vehicles for connecting fixed and moving parts.
Standards :
- BS 6853 -1a
- DIN 5510-1 1-4
- NFF 16-101 F0
![]() |
![]() |

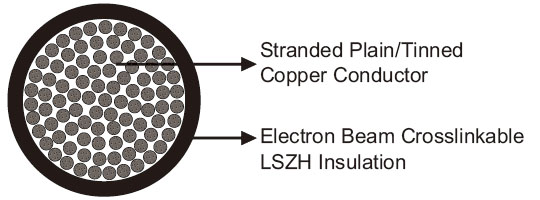

Construction :
- Conductor : Circular Class 5 stranded plain or tinned copper to BS EN 60228: 2005 / BS 6360.
- Insulation : Electron beam crosslinkable standard wall LSZH compound.
Optional :
- FRA-SW-0.75S (Sheathed); FRA-SW-0.75S-OS (Screened & sheathed)
- FRA-SW-0.75SU-FR (Fire resistant & Unsheathed)
Electrical Characteristics at 20 °C :
-
Nominal Conductor Cross Section mm² 1.0 1.5 2.5 4.0 6.0 10 16 Maximum Conductor Resistance Ω/km 20 13.7 8.21 5.09 3.39 1.95 1.24 Voltage Rating KV 0.45/0.75
Mechanical and Thermal Properties :
- Minimum Bending Radius : 3×OD (OD<12mm); 4×OD (OD>12mm)
- Temperature Range : -40°C to +120°C.
Dimensions and Weight :
Cable Code | No. of cores& Nominal Conductor Cross Sectional Area No.×mm² |
Nominal Diameter of Strands mm |
Nominal Insulation Thickness mm |
Nominal Overall Diameter mm |
Nominal Weight kg/km |
FRA-SW-0.75SU-1G1 | 1×1.0 | 32/0.2 | 0.8 | 3.9 | 28 |
FRA-SW-0.75SU-1G1.5 | 1×1.5 | 30/0.25 | 0.8 | 4.2 | 34 |
FRA-SW-0.75SU-1G2.5 | 1×2.5 | 50/0.25 | 0.8 | 4.6 | 41 |
FRA-SW-0.75SU-1G4 | 1×4.0 | 56/0.3 | 0.8 | 5.2 | 64 |
FRA-SW-0.75SU-1G6 | 1×6.0 | 84/0.3 | 0.9 | 6.4 | 93 |
FRA-SW-0.75SU-1G10 | 1×10.0 | 80/0.4 | 0.9 | 7.5 | 141 |
FRA-SW-0.75SU-1G16 | 1×16.0 | 126/0.4 | 1.1 | 8.6 | 203 |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
Impact Resistant |
Highly Flexible |
UV Resistant |
Oil Resistant |
Weather Resistant |
Low Toxicity |
![]() |
![]() |
![]() |
![]() |
![]() |
Flame Retardant NF C32-070-2.1(C2) IEC 60332-1/EN 50265-2-1 |
Fire Retardant NF C32-070-2.2(C1) IEC 60332-3/EN50266 |
Zero Halogen IEC 60754-1/NF C20-454 EN 50267-2-1 |
Low Smoke Emission IEC 61034/NFC20-902 EN 50268/NF C32-073 |
Low Corrosivity EN 50267-2-2/NF C32-074 IEC 60754-2/NF C20-453 |
