0.6/1KV Single Core Dual Wall Traction Cables
![](../../images/line.jpg)
Applications :
- Single Core power and control cable designed for protected, fixed installation inside and outside railway vehicles for connecting fixed and moving parts.
Standards :
- BS 6853 -1a
- DIN 5510-1 1-4
- NFF 16-101 F0
![]() |
![]() |

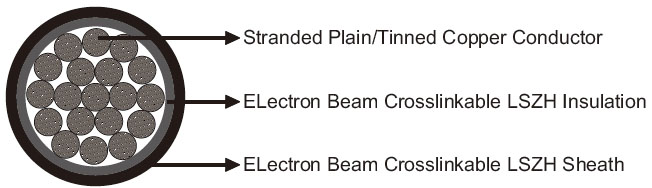

Construction :
- Conductor : Circular Class 5 stranded plain or tinned copper to BS EN 60228: 2005 / BS 6360.
- Insulation 1 : Electron beam crosslinkable thin wall LSZH compound.
- Insulation 2 : Electron beam crosslinkable thin wall LSZH compound.
Optional :
- FRA-DW-1S (Sheathed); FRA-DW-1S-OS (Screened & Sheathed);
- FRA-DW-1SU-FR (Fire resistant & Unsheathed).
Electrical Characteristics at 20 °C :
-
Nominal Conductor Cross Section mm² 0.5 0.6 0.75 1.0 1.2 1.5 2.5 3.0 4.0 Maximum Conductor Resistance Ω/km 40.1 33.4 26.7 20.0 16.3 13.7 8.21 6.56 5.09 Voltage Rating KV 0.6/1.0
Mechanical and Thermal Properties :
- Minimum Bending Radius : 3×OD (OD<12mm); 4×OD (OD>12mm)
- Temperature Range : -40°C to +120°C.
Dimensions and Weight :
FRA-TW-1M (Multicore unscreened)
Cable Code | No. of cores& Nominal Conductor Cross Sectional Area No.×mm² |
Nominal Diameter of Strands No/mm |
Nominal Insulation Thickness mm |
Nominal Overall Diameter mm |
Nominal Weight kg/km |
FRA-DW-1SU-1G0.5 | 1×0.5 | 19/0.18 | 0.2 | 1.3 | 5.5 |
FRA-DW-1SU-1G0.6 | 1×0.6 | 19/0.20 | 0.2 | 1.39 | 6.5 |
FRA-DW-1SU-1G0.75 | 1×0.75 | 19/0.22 | 0.2 | 1.52 | 8 |
FRA-DW-1SU-1G1 | 1×1.0 | 19/0.26 | 0.2 | 1.67 | 10 |
FRA-DW-1SU-1G1.2 | 1×1.2 | 19/0.28 | 0.2 | 1.83 | 12 |
FRA-DW-1SU-1G1.5 | 1×1.5 | 19/0.30 | 0.3 | 2.04 | 15 |
FRA-DW-1SU-1G2 | 1×2.0 | 37/0.25 | 0.3 | 2.29 | 19 |
FRA-DW-1SU-1G2.5 | 1×2.5 | 19/0.40 | 0.3 | 2.54 | 24 |
FRA-DW-1SU-1G3 | 1×3.0 | 37/0.32 | 0.3 | 2.78 | 29 |
FRA-DW-1SU-1G4 | 1×4.0 | 56/0.30 | 0.4 | 3.21 | 39 |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
Impact Resistant |
Highly Flexible |
UV Resistant |
Oil Resistant |
Weather Resistant |
Low Toxicity |
![]() |
![]() |
![]() |
![]() |
![]() |
Flame Retardant NF C32-070-2.1(C2) IEC 60332-1/EN 50265-2-1 |
Fire Retardant NF C32-070-2.2(C1) IEC 60332-3/EN50266 |
Zero Halogen IEC 60754-1/NF C20-454 EN 50267-2-1 |
Low Smoke Emission IEC 61034/NFC20-902 EN 50268/NF C32-073 |
Low Corrosivity EN 50267-2-2/NF C32-074 IEC 60754-2/NF C20-453 |
