1.8/3KV Single Core Medium Wall Traction Cables
![](../../images/line.jpg)
Applications :
- Single core power and control cable designed for protected, fixed installation inside and outside railway vehicles for connecting fixed and moving parts in direct current and alternating voltage technology, especially converter technology.
Standards :
- BS 6853 -1a
- DIN 5510-1 1-4
- NFF 16-101 F0
![]() |
![]() |

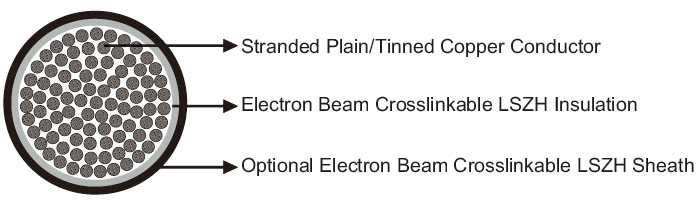

Construction :
- Conductors : Circular Class 5 stranded plain or tinned copper to BS EN 60228: 2005 / BS 6360.
- Insulat ion : Elect ron beam crosslinkable medium wall LSZH compound.
- Outer Sheath : Electron beam crosslinkable LSZH compound (for sheathed cables).
Optional :
- FRA-MW-3S-OS (Screened & Sheathed)
- FRA-MW-3SU-FR(Fire resistant & Unsheathed)
Electrical Characteristics at 20 °C :
-
Nominal Conductor Cross Section mm² 1.5 2.5 4.0 6.0 10 16 25 35 50 Maximum Conductor Resistance Ω/km 13.7 8.21 5.09 3.39 1.95 1.24 0.795 0.565 0.393 Voltage Rating KV 1.8/3 -
Nominal Conductor Cross Section mm² 70 95 120 150 185 240 300 400 Maximum Conductor Resistance Ω/km 0.277 0.21 0.164 0.132 0.108 0.0817 0.654 0.0495 Voltage Rating KV 1.8/3
Mechanical and Thermal Properties :
- Minimum Bending Radius : 3×OD (OD<12mm); 4×OD (OD>12mm)
- Temperature Range : -40°C to +120°C.
Dimensions and Weight :
FRA-MW-3SU (Unsheathed)
Cable Code | No. of cores& Nominal Conductor Cross Sectional Area No.×mm² |
Nominal Diameter of Strands No/mm |
Nominal Insulation Thickness mm |
Nominal Overall Diameter mm |
Nominal Weight kg/km |
FRA-MW-3SU-1G1.5 | 1×1.5 | 30/0.25 | 2.0 | 5.8 | 50 |
FRA-MW-3SU-1G2.5 | 1×2.5 | 50/0.25 | 2.0 | 6.2 | 60 |
FRA-MW-3SU-1G4 | 1×4.0 | 56/0.30 | 2.0 | 6.8 | 80 |
FRA-MW-3SU-1G6 | 1×6.0 | 84/0.30 | 2.0 | 7.3 | 100 |
FRA-MW-3SU-1G10 | 1×10.0 | 80/0.40 | 2.0 | 8.2 | 150 |
FRA-MW-3SU-1G16 | 1×16.0 | 126/0.40 | 2.0 | 9.3 | 220 |
FRA-MW-3SU-1G25 | 1×25.0 | 196/0.40 | 2.0 | 10.8 | 290 |
FRA-MW-3SU-1G35 | 1×35.0 | 276/0.40 | 2.0 | 12.1 | 390 |
FRA-MW-3SU-1G50 | 1×50.0 | 396/0.40 | 2.0 | 13.6 | 530 |
FRA-MW-3SU-1G70 | 1×70.0 | 360/0.50 | 2.0 | 15.4 | 720 |
FRA-MW-3SU-1G95 | 1×95.0 | 475/0.50 | 2.2 | 17.4 | 940 |
FRA-MW-3SU-1G120 | 1×120.0 | 608/0.50 | 2.2 | 19.1 | 1160 |
FRA-MW-3SU-1G150 | 1×150.0 | 756/0.50 | 2.2 | 20.7 | 1440 |
FRA-MW-3SU-1G185 | 1×185.0 | 925/0.50 | 2.4 | 22.7 | 1760 |
FRA-MW-3SU-1G240 | 1×240.0 | 1221/0.50 | 2.4 | 25.6 | 2350 |
FRA-MW-3SU-1G300 | 1×300.0 | 1525/0.50 | 2.4 | 27.9 | 2820 |
FRA-MW-3SU-1G400 | 1×400.0 | 2013/0.50 | 2.6 | 31.7 | 3730 |
FRA-MW-3S (Sheathed)
Cable Code | No. of cores& Nominal Conductor Cross Sectional Area No.×mm² |
Nominal Diameter of Strands No/mm |
Nominal Insulation Thickness mm |
Nominal Overall Diameter mm |
Nominal Weight kg/km |
FRA-MW-3S-1G1.5 | 1×1.5 | 30/0.25 | 1.3 | 6.2 | 60 |
FRA-MW-3S-1G2.5 | 1×2.5 | 50/0.25 | 1.3 | 6.5 | 70 |
FRA-MW-3S-1G4 | 1×4.0 | 56/0.30 | 1.3 | 7.1 | 90 |
FRA-MW-3S-1G6 | 1×6.0 | 84/0.30 | 1.3 | 7.6 | 110 |
FRA-MW-3S-1G10 | 1×10.0 | 80/0.40 | 1.5 | 8.9 | 170 |
FRA-MW-3S-1G16 | 1×16.0 | 126/0.40 | 1.5 | 10 | 240 |
FRA-MW-3S-1G25 | 1×25.0 | 196/0.40 | 1.8 | 12.5 | 350 |
FRA-MW-3S-1G35 | 1×35.0 | 276/0.40 | 1.8 | 13.8 | 450 |
FRA-MW-3S-1G50 | 1×50.0 | 396/0.40 | 1.8 | 15.3 | 590 |
FRA-MW-3S-1G70 | 1×70.0 | 360/0.50 | 1.8 | 17.2 | 790 |
FRA-MW-3S-1G95 | 1×95.0 | 475/0.50 | 2.2 | 19.5 | 1050 |
FRA-MW-3S-1G120 | 1×120.0 | 608/0.50 | 2.2 | 21.3 | 1270 |
FRA-MW-3S-1G150 | 1×150.0 | 756/0.50 | 2.2 | 23.3 | 1590 |
FRA-MW-3S-1G185 | 1×185.0 | 925/0.50 | 2.4 | 25.4 | 1900 |
FRA-MW-3S-1G240 | 1×240.0 | 1221/0.50 | 2.4 | 28.1 | 2490 |
FRA-MW-3S-1G300 | 1×300.0 | 1525/0.50 | 2.4 | 30.5 | 3010 |
FRA-MW-3S-1G400 | 1×400.0 | 2013/0.50 | 2.6 | 34.7 | 3980 |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
Impact Resistant |
Highly Flexible |
UV Resistant |
Oil Resistant |
Weather Resistant |
Low Toxicity |
![]() |
![]() |
![]() |
![]() |
![]() |
Flame Retardant NF C32-070-2.1(C2) IEC 60332-1/EN 50265-2-1 |
Fire Retardant NF C32-070-2.2(C1) IEC 60332-3/EN50266 |
Zero Halogen IEC 60754-1/NF C20-454 EN 50267-2-1 |
Low Smoke Emission IEC 61034/NFC20-902 EN 50268/NF C32-073 |
Low Corrosivity EN 50267-2-2/NF C32-074 IEC 60754-2/NF C20-453 |
