FRA 155 Single Core
![](../../images/line.jpg)
Applications :
- Single core cable with very high resistance to temperature designed for internal wiring in lamps, heating appliances and distribution boxes in apparatus, mechanical and plant engineering, etc.
Standards :
- IEC 60332-1, EN 50265-2-1 (flame retardant)
- EN 50266-2 (non-flame propagating)
![]() |
![]() |

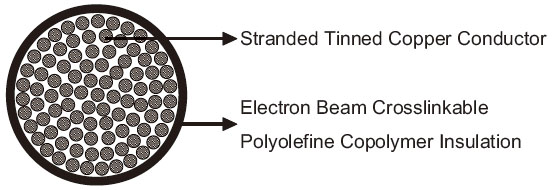

Construction :
- Conductors : Class 5 stranded tinned copper to IEC60228/VDE 0295.
- Insulation : Electron beam crosslinkable polyolefine copolymer.
- Colour Code : Various colours on request.
Electrical Characteristics at 20 °C :
-
Nominal Conductor Cross Section mm² 0.25 0.34 0.50 0.75 1.0 1.5 2.5 4.0 6.0 10 16 Maximum Conductor Resistance Ω/km 85.9 57.2 40.1 26.7 20.0 13.7 8.21 5.09 3.39 1.95 1.24 Voltage Rating V 450/750V (≤0.5mm²); 600/1000V (>0.5mm²) -
Nominal Conductor Cross Section mm² 25 35 50 70 95 120 150 185 240 Maximum Conductor Resistance Ω/km 0.795 0.565 0.393 0.277 0.21 0.164 0.132 0.108 0.0817 Voltage Rating V 450/750V (≤0.5mm²); 600/1000V (>0.5mm²)
Mechanical and Thermal Properties :
- Minimum Bending Radius : 4xOD (Static); 6xOD (Flexing).
- Temperature Range : -55℃ ~+155℃ (Static); -40℃ ~+120℃ (Flexing).
- Short Circuit Temperature : +280℃.
Dimensions and Weight :
No. of cores& Nominal Conductor Cross Sectional Area No.×mm² |
Number and Nominal Diameter of Strands No./mm |
Nominal Insulation Thickness mm |
Nominal Overall Diameter mm |
Nominal Weight kg/km |
1×0.25 | 19/0.13 | 0.5 | 1.5 | 4 |
1×0.34 | 19/0.15 | 0.5 | 1.7 | 5 |
1×0.50 | 16/0.20 | 0.5 | 1.8 | 7 |
1×0.75 | 24/0.20 | 0.6 | 2.2 | 10 |
1×1.0 | 30/0.20 | 0.6 | 2.5 | 13 |
1×1.5 | 30/0.25 | 0.6 | 2.7 | 20 |
1×2.5 | 50/0.25 | 0.7 | 3.4 | 31 |
1×4.0 | 56/0.30 | 0.8 | 4.1 | 46 |
1×6.0 | 84/0.30 | 0.9 | 5.2 | 65 |
1×10.0 | 80/0.40 | 1.0 | 6.4 | 110 |
1×16.0 | 126/0.40 | 1.1 | 7.5 | 165 |
1×25.0 | 196/0.40 | 1.3 | 9.2 | 250 |
1×35.0 | 276/0.40 | 1.3 | 10.4 | 345 |
1×50.0 | 396/0.40 | 1.6 | 12.5 | 550 |
1×70.0 | 360/0.50 | 1.6 | 14.7 | 780 |
1×95.0 | 475/0.50 | 1.8 | 16.4 | 1010 |
1×120.0 | 608/0.50 | 1.8 | 18.2 | 1280 |
1×150.0 | 756/0.50 | 1.9 | 20.8 | 1420 |
1×185.0 | 925/0.50 | 2.0 | 22.5 | 1710 |
1×240.0 | 1221/0.50 | 2.2 | 25.7 | 2250 |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
Impact Resistant |
Highly Flexible |
Weather Resistant |
UV Resistant |
Flame Retardant NF C32-070-2.1(C2) IEC 60332-1/EN 50265-2-1 |
Fire Retardant NF C32-070-2.2(C1) IEC 60332-3/EN50266 |
