Trackside Signalling Aluminium Power Cables to BR880



Applications :

  • BR880 solid sector shaped conductors for trackside signalling power supplies.

Standards :

  • BR880
  • BS 5467
  • BS 6346
  • UNE 21123

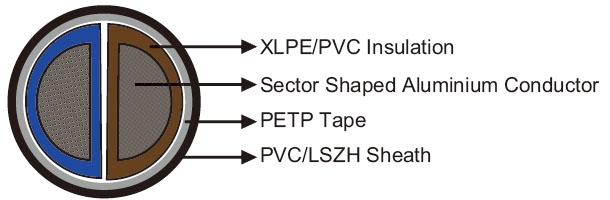

Construction :

  • Conductors : Sector shaped solid plain aluminium to IEC 60228 class 2 or 5.
  • Insulation : XLPE type GP8 to BS 7655 or PVC type TI 1 to BS 7655.
  • Core Wrapping : PETP (Pol yethy lene Terephthalate).
  • Sheath : PVC type 9 to BS 7655 (LSZH can be offered as an option).

Electrical Characteristics at 20 °C :

  • Nominal Conductor Cross Section mm² 16 25 35 50 70 95
    Maximum DC Conductor Resistance Ω/km 1.91* 1.2* 0.868* 0.641 0.443 0.32**
    Voltage Rating KV 0.6/1
  • * Aluminium conductors 10mm² to 35mm² circular only.
    ** For single core cables, four sectoral shaped conductors may be assembled info a single circular conductor. The maximum resistance of the assembled conductor shall be 25% of that of the individual component conductors.

Mechanical and Thermal Properties :

  • Minimum Bending Radius : 10×OD.
  • Temperature Range : -30°C to +70°C(during operation) ; -10°C to +55°C (during installation).

Core Identification :

  • 2 core: Brown/Blue.
  • 4 core: Blue/Brown/Black/Grey.

Dimensions and Weight :



Cable Code No. of cores& Nominal
Conductor Cross
Sectional Area
No.×mm²
Nominal
Thickness of
Insulation
mm
Nominal
Thickness of
Sheath
mm
Nominal
Overall
Diameter
mm
Nominal
Weight
kg/km
RF880-RV-K-0.6/1KV-2G16AL 2×16 1.0 1.8 14.3 420
RF880-RV-K-0.6/1KV-2G25AL 2×25 1.2 1.8 16.6 455
RF880-RV-K-0.6/1KV-2G35AL 2×35 1.2 1.8 18.0 525
RF880-RV-K-0.6/1KV-2G50AL 2×50 1.4 1.8 20.4 620
RF880-RV-K-0.6/1KV-2G70AL 2×70 1.4 1.9 22.8 840
RF880-RV-K-0.6/1KV-2G95AL 2×95 1.6 2.0 26.2 1020
RF880-RV-K-0.6/1KV-4G70AL 4×70 1.4 2.0 30.6 1750
RF880-RV-K-0.6/1KV-4G95AL 4×95 1.6 2.2 35.5 2100

  K is changed to U if the stranding class is changed from class 5 to class 2.





PVC
Sheath
Flame Retardant
NF C32-070-2.1(C2)
IEC 60332-1/EN 50265-2-1




LSZH
Sheath
Flame Retardant
NF C32-070-2.1(C2)
IEC 60332-1/EN 50265-2-1
Fire Retardant
NF C32-070-2.2(C1)
IEC 60332-3/EN50266
Zero Halogen
IEC 60754-1/NF C20-454
EN 50267-2-1
Low Toxicity


Low Smoke Emission
IEC 61034/NFC20-902
EN 50268/NF C32-073
Low Corrosivity
EN 50267-2-2/NF C32-074
IEC 60754-2/NF C20-453
