0.6/1KV Limited Fire Hazard/Fire Survival Multicore Armoured Cables to EME-SP-14-027
Applications :
- The cables are designed for station range installation typically in public help points (PHP), public address (PA), station announcement platforms (SAP) & CCTV camera power systems. The LSZH cables has been designed to provide superior flame retardance and circuit integrity if necessary, suitable for installation where fire, smoke emission and toxi fumes may create a potential threat.
Standards :
- EME SP 14027 (LUL version of BS 6724 for fi re retardant version and BS 6387 for fire resisting version)
- UNE 21123

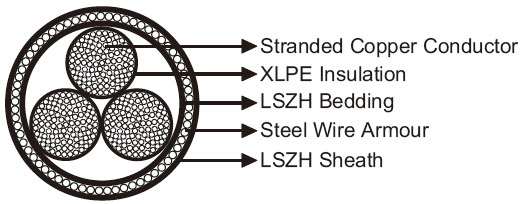

Construction :
- Conductors : Stranded plain copper conductors to IEC 60228 class 2 or 5.
- Fire Barrier Tape (optional) : Mica.
- Insulation : XLPE insulation.
- Bedding : LSZH bedding.
- Armoured : SWA.
- Outer Sheath : LSZH Sheath.
Electrical Characteristics at 20 °C :
-
Nominal Conductor Cross Section mm2 2.5 4.0 6.0 10.0 16.0 25.0 35.0 50.0 Maximum DC Conductor Resistance Ω/km 7.41 4.61 3.08 1.83 1.15 0.727 0.524 0.387 Voltage Rating KV 0.45/0.75 -
Nominal Conductor Cross Section mm2 70.0 95 120 150 185 240 300 Maximum DC Conductor Resistance Ω/km 0.268 0.193 0.153 0.124 0.0991 0.0754 0.0601 Voltage Rating KV 0.45/0.75
Mechanical and Thermal Properties :
- Minimum Bending Radius : 8×OD.
- Operating Temperatures : 0°C to +90°C (during operation); 0°C to +70°C (during installation).
Dimensions and Weight :
Cables without fire barrier tape
Cable Code | No. of cores& Nominal Conductor Cross Sectional Area No.×mm² |
No. & Nominal Diameter of Strands No/mm |
Nominal Sheath Thickness mm |
Nominal Overall Diameter mm |
Nominal Weight kg/km |
RF14027-RZ1MZ1-U(AS)-0.6/1KV-2G2.5 | 2×2.5* | 7/0.67 | 1.4 | 12.2 | 323 |
RF14027-RZ1MZ1-U(AS)-0.6/1KV-2G4 | 2×4.0* | 7/0.85 | 1.4 | 13.3 | 387 |
RF14027-RZ1MZ1-U(AS)-0.6/1KV-2G6 | 2×6.0* | 7/1.04 | 1.4 | 14.4 | 460 |
RF14027-RZ1MZ1-U(AS)-0.6/1KV-2G10 | 2×10.0* | 7/1.35 | 1.5 | 16.1 | 611 |
RF14027-RZ1MZ1-U(AS)-0.6/1KV-2G16 | 2×16.0* | 7/1.70 | 1.5 | 18.7 | 904 |
RF14027-RZ1MZ1-U(AS)-0.6/1KV-2G25 | 2×25.0 | 7/2.14 | 1.6 | 21.0 | 1050 |
RF14027-RZ1MZ1-U(AS)-0.6/1KV-2G35 | 2×35.0 | 19/1.53 | 1.7 | 22.0 | 1450 |
RF14027-RZ1MZ1-U(AS)-0.6/1KV-2G50 | 2×50.0 | 19/1.78 | 1.8 | 24.0 | 1800 |
RF14027-RZ1MZ1-U(AS)-0.6/1KV-2G70 | 2×70.0 | 19/2.14 | 1.9 | 27.0 | 2300 |
RF14027-RZ1MZ1-U(AS)-0.6/1KV-2G95 | 2×95.0 | 37/1.78 | 2.0 | 32.0 | 3250 |
RF14027-RZ1MZ1-U(AS)-0.6/1KV-2G120 | 2×120.0 | 37/2.03 | 2.1 | 35.0 | 3950 |
RF14027-RZ1MZ1-U(AS)-0.6/1KV-2G150 | 2×150.0 | 37/2.25 | 2.2 | 38.0 | 4650 |
RF14027-RZ1MZ1-U(AS)-0.6/1KV-2G185 | 2×185.0 | 37/2.52 | 2.4 | 43.0 | 6050 |
RF14027-RZ1MZ1-U(AS)-0.6/1KV-2G240 | 2×240.0 | 61/2.25 | 2.5 | 49.0 | 7500 |
RF14027-RZ1MZ1-U(AS)-0.6/1KV-2G300 | 2×300.0 | 61/2.52 | 2.6 | 54.0 | 9050 |
RF14027-RZ1MZ1-U(AS)-0.6/1KV-3G2.5 | 3×2.5* | 7/0.67 | 1.4 | 12.1 | 335 |
RF14027-RZ1MZ1-U(AS)-0.6/1KV-3G4 | 3×4.0* | 7/0.85 | 1.4 | 13.3 | 430 |
RF14027-RZ1MZ1-U(AS)-0.6/1KV-3G6 | 3×6.0* | 7/1.04 | 1.4 | 14.4 | 523 |
RF14027-RZ1MZ1-U(AS)-0.6/1KV-3G10 | 3×10.0* | 7/1.35 | 1.5 | 17.0 | 811 |
RF14027-RZ1MZ1-U(AS)-0.6/1KV-3G16 | 3×16.0* | 7/1.70 | 1.6 | 19.3 | 1072 |
RF14027-RZ1MZ1-U(AS)-0.6/1KV-3G25 | 3×25.0 | 7/2.14 | 1.7 | 24.0 | 1750 |
RF14027-RZ1MZ1-U(AS)-0.6/1KV-3G35 | 3×35.0 | 19/1.53 | 1.8 | 27.0 | 2000 |
RF14027-RZ1MZ1-U(AS)-0.6/1KV-3G50 | 3×50.0 | 19/1.78 | 1.8 | 28.0 | 2450 |
RF14027-RZ1MZ1-U(AS)-0.6/1KV-3G70 | 3×70.0 | 19/2.14 | 1.9 | 32.0 | 3250 |
RF14027-RZ1MZ1-U(AS)-0.6/1KV-3G95 | 3×95.0 | 37/1.78 | 2.1 | 36.0 | 4500 |
RF14027-RZ1MZ1-U(AS)-0.6/1KV-3G120 | 3×120.0 | 37/2.03 | 2.2 | 40.0 | 5350 |
RF14027-RZ1MZ1-U(AS)-0.6/1KV-3G150 | 3×150.0 | 37/2.25 | 2.3 | 44.0 | 6900 |
RF14027-RZ1MZ1-U(AS)-0.6/1KV-3G185 | 3×185.0 | 37/2.52 | 2.4 | 49.0 | 8200 |
RF14027-RZ1MZ1-U(AS)-0.6/1KV-3G240 | 3×240.0 | 61/2.25 | 2.6 | 56.0 | 10350 |
RF14027-RZ1MZ1-U(AS)-0.6/1KV-3G300 | 3×300.0 | 61/2.52 | 2.7 | 62.0 | 12600 |
RF14027-RZ1MZ1-U(AS)-0.6/1KV-4G2.5 | 4×2.5* | 7/0.67 | 1.4 | 13.6 | 406 |
RF14027-RZ1MZ1-U(AS)-0.6/1KV-4G4 | 4×4.0* | 7/0.85 | 1.4 | 14.9 | 505 |
RF14027-RZ1MZ1-U(AS)-0.6/1KV-4G6 | 4×6.0* | 7/1.04 | 1.5 | 17.1 | 737 |
RF14027-RZ1MZ1-U(AS)-0.6/1KV-4G10 | 4×10.0* | 7/1.35 | 1.5 | 18.9 | 969 |
RF14027-RZ1MZ1-U(AS)-0.6/1KV-4G16 | 4×16.0* | 7/1.70 | 1.6 | 21.5 | 1303 |
RF14027-RZ1MZ1-U(AS)-0.6/1KV-4G25 | 4×25.0 | 7/2.14 | 1.7 | 27.0 | 2100 |
RF14027-RZ1MZ1-U(AS)-0.6/1KV-4G35 | 4×35.0 | 19/1.53 | 1.8 | 29.0 | 2450 |
RF14027-RZ1MZ1-U(AS)-0.6/1KV-4G50 | 4×50.0 | 19/1.78 | 1.9 | 32.0 | 3100 |
RF14027-RZ1MZ1-U(AS)-0.6/1KV-4G70 | 4×70.0 | 19/2.14 | 2.1 | 37.0 | 4400 |
RF14027-RZ1MZ1-U(AS)-0.6/1KV-4G95 | 4×95.0 | 37/1.78 | 2.2 | 41.0 | 5650 |
RF14027-RZ1MZ1-U(AS)-0.6/1KV-4G120 | 4×120.0 | 37/2.03 | 2.3 | 46.0 | 7300 |
RF14027-RZ1MZ1-U(AS)-0.6/1KV-4G150 | 4×150.0 | 37/2.25 | 2.4 | 51.0 | 8700 |
RF14027-RZ1MZ1-U(AS)-0.6/1KV-4G185 | 4×185.0 | 37/2.52 | 2.6 | 55.0 | 10450 |
RF14027-RZ1MZ1-U(AS)-0.6/1KV-4G240 | 4×240.0 | 61/2.25 | 2.7 | 63.0 | 13250 |
RF14027-RZ1MZ1-U(AS)-0.6/1KV-4G300 | 4×300.0 | 61/2.52 | 2.9 | 68.0 | 16100 |
*Circular conductors.
U is changed to K if the stranding class is changed from class 2 to class 5.
Cables with fire barrier tape
Cable Code | No. of cores& Nominal Conductor Cross Sectional Area No.×mm² |
No. & Nominal Diameter of Strands No/mm |
Nominal Sheath Thickness mm |
Nominal Overall Diameter mm |
Nominal Weight kg/km |
RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-2G2.5 | 2×2.5 | 7/0.67 | 1.4 | 13.1 | 352 |
RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-2G4 | 2×4.0 | 7/0.85 | 1.4 | 14.1 | 424 |
RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-2G6 | 2×6.0 | 7/1.04 | 1.4 | 15.2 | 504 |
RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-2G10 | 2×10.0 | 7/1.35 | 1.5 | 16.9 | 620 |
RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-2G16 | 2×16.0 | 7/1.70 | 1.5 | 19.5 | 954 |
RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-2G25 | 2×25.0 | 7/2.14 | 1.6 | 25.5 | 1330 |
RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-2G35 | 2×35.0 | 19/1.53 | 1.7 | 29.1 | 1785 |
RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-2G50 | 2×50.0 | 19/1.78 | 1.8 | 32.2 | 2165 |
RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-2G70 | 2×70.0 | 19/2.14 | 1.9 | 28.8 | 2445 |
RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-2G95 | 2×95.0 | 37/1.78 | 2.0 | 33.9 | 3385 |
RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-2G120 | 2×120.0 | 37/2.03 | 2.1 | 37.2 | 4065 |
RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-2G150 | 2×150.0 | 37/2.25 | 2.2 | 39.9 | 4745 |
RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-2G185 | 2×185.0 | 37/2.52 | 2.4 | 45.0 | 6095 |
RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-2G240 | 2×240.0 | 61/2.25 | 2.5 | 50.0 | 7575 |
RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-2G300 | 2×300.0 | 61/2.52 | 2.6 | 55.0 | 9165 |
RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-3G2.5 | 3×2.5 | 7/0.67 | 1.4 | 13.7 | 392 |
RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-3G4 | 3×4.0 | 7/0.85 | 1.4 | 14.8 | 478 |
RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-3G6 | 3×6.0 | 7/1.04 | 1.4 | 16.0 | 573 |
RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-3G10 | 3×10.0 | 7/1.35 | 1.5 | 18.5 | 868 |
RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-3G16 | 3×16.0 | 7/1.70 | 1.6 | 20.8 | 1136 |
RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-3G25 | 3×25.0 | 7/2.14 | 1.7 | 27.6 | 1865 |
RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-3G35 | 3×35.0 | 19/1.53 | 1.8 | 30.9 | 2235 |
RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-3G50 | 3×50.0 | 19/1.78 | 1.8 | 33.9 | 2735 |
RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-3G70 | 3×70.0 | 19/2.14 | 1.9 | 35.7 | 3355 |
RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-3G95 | 3×95.0 | 37/1.78 | 2.1 | 38.2 | 4580 |
RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-3G120 | 3×120.0 | 37/2.03 | 2.2 | 41.6 | 5505 |
RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-3G150 | 3×150.0 | 37/2.25 | 2.3 | 47.0 | 6950 |
RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-3G185 | 3×185.0 | 37/2.52 | 2.4 | 50.5 | 8295 |
RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-3G240 | 3×240.0 | 61/2.25 | 2.6 | 57.2 | 10455 |
RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-3G300 | 3×300.0 | 61/2.52 | 2.7 | 63.2 | 12660 |
RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-4G2.5 | 4×2.5 | 7/0.67 | 1.4 | 14.7 | 454 |
RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-4G4 | 4×4.0 | 7/0.85 | 1.4 | 16.0 | 556 |
RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-4G6 | 4×6.0 | 7/1.04 | 1.5 | 18.2 | 783 |
RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-4G10 | 4×10.0 | 7/1.35 | 1.5 | 20.0 | 1029 |
RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-4G16 | 4×16.0 | 7/1.70 | 1.6 | 22.5 | 1367 |
RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-4G25 | 4×25.0 | 7/2.14 | 1.7 | 29.9 | 2240 |
RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-4G35 | 4×35.0 | 19/1.53 | 1.8 | 33.5 | 2705 |
RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-4G50 | 4×50.0 | 19/1.78 | 1.9 | 37.1 | 3375 |
RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-4G70 | 4×70.0 | 19/2.14 | 2.1 | 39.1 | 4560 |
RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-4G95 | 4×95.0 | 37/1.78 | 2.2 | 43.0 | 5805 |
RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-4G120 | 4×120.0 | 37/2.03 | 2.3 | 48.3 | 7430 |
RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-4G150 | 4×150.0 | 37/2.25 | 2.4 | 52.4 | 8820 |
RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-4G185 | 4×185.0 | 37/2.52 | 2.6 | 56.6 | 10600 |
RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-4G240 | 4×240.0 | 61/2.25 | 2.7 | 64.3 | 13380 |
RF14027-RZ1MZ1-U-MICA(AS+)-0.6/1KV-4G300 | 4×300.0 | 61/2.52 | 2.9 | 70.7 | 16255 |
U is changed to K if the stranding class is changed from class 2 to class 5.
Impact Resistant |
Highly Flexible |
Oil Resistant |
Weather Resistant |
Laid In Ducts |
Insulation Integrity FE180 EN 50200/IEC 60331 /NF C32-070-2.3(CR1) |
