K25 Track Feeder Cables to NF F 55-625



Applications :

  • The cables are designed for fixed power or lighting installations in rail transport.

Standards :

  • NF F 55-625
  • UNE 21123

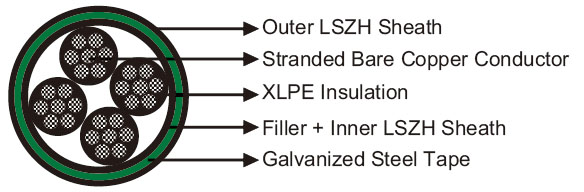

Construction :

  • Conductors : Stranded bare copper conductor, 1.5mm2; to IEC 60228 class 2.
  • Insulation : XLPE.
  • Filler & Inner Covering : LSZH.
  • Armour : Galvanized steel tapes.
  • Outer Sheath : LSZH, antitermite, coloured black.

Electrical Characteristics at 20 °C :

  • Nominal Conductor Cross Section mm2 1.5
    Maximum DC Conductor Resistance Ω/km 12.2
    Minimum Insulation resistance @500VDC MΩ.km 1500
    Voltage Rating KV 0.6/1(0.45/0.75 optional)

Mechanical and Thermal Properties :

  • Minimum Bending Radius : 10×OD.
  • Operating Temperatures : -20°C to +60°C (during operation); -10°C to +60°C (during installation).

Core Identification :

  • Colours coding: Black, Light blue, Brown, Green/Yellow, Black.

Dimensions and Weight :



Cable Code No. of cores& Nominal
Conductor Cross
Sectional Area
No.×mm²
No. & Nominal
Diameter of
Strands
No/mm
Minimum
Overall
Diameter
mm
Maximum
Overall
Diameter
mm
Nominal
Weight
kg/km
RF/K25-RZ1F3Z1-U(AS)-0.6/1KV-2G1.5 2 x 1.5 7/0.53 8.0 12.0 100
RF/K25-RZ1F3Z1-U(AS)-0.6/1KV-4G1.5 4 x 1.5 7/0.53 12.5 14.5 300
RF/K25-RZ1F3Z1-U(AS)-0.6/1KV-12G1.5 12 x 1.5 7/0.53 18.0 20.0 590
RF/K25-RZ1F3Z1-U(AS)-0.6/1KV-21G1.5 21 x 1.5 7/0.53 22.0 24.0 830

 U is changed to K if the stranding class is changed from class 2 to class 5.





Low Toxicity



Flame Retardant
NF C32-070-2.1(C2)
IEC 60332-1/EN 50265-2-1
Fire Retardant
NF C32-070-2.2(C1)
IEC 60332-3/EN50266
Zero Halogen
IEC 60754-1/NF C20-454
EN 50267-2-1
Low Smoke Emission
IEC 61034/NFC20-902
EN 50268/NF C32-073
Low Corrosivity
EN 50267-2-2/NF C32-074
IEC 60754-2/NF C20-453
