NSGAFOU Cables
Applications :
- The cables are designed for use in switch cabinets, wiring of devices, trains and buses as well as in dry rooms.
Standards :
- DIN VDE 0250-602

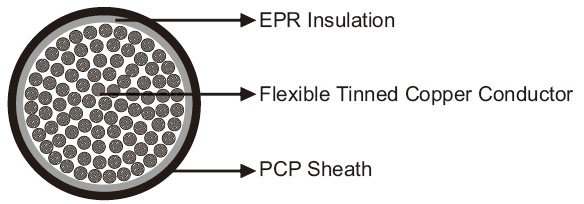

Construction :
- Conductors : Flexible tinned copper to IEC 60228 class 5.
- Insulation : EPR type 3G13.
- Outer sheath : PCP type 5GM3.
Electrical Characteristics at 20 °C :
-
Nominal Conductor Cross Section mm² 1.5 2.5 4.0 6.0 10 16 25 35 Conductor Resistance Ω/km 13.7 8.21 5.09 3.39 1.95 1.24 0.795 0.565 Current Rating A 31 41 58 75 103 145 194 240 Voltage Rating KV 1.8/3 -
Nominal Conductor Cross Section mm² 50 70 95 120 150 185 240 Conductor Resistance Ω/km 0.393 0.277 0.21 0.164 0.132 0.109 0.0817 Current Rating A 301 372 456 528 607 639 821 Voltage Rating KV 1.8/3
Mechanical and Thermal Properties :
- Minimum Bending Radius : 4×OD.
- Temperature Range : -25°C to +80°C(during operation) ; -10°C to +60°C (during installation).
Core Identification :
- 4core : yellow, yellow, blue, blue
- 8core : yellow, yellow, blue, blue, Brown, brown, black, black
Dimensions and Weight :
Cable Code | No. of cores& Nominal Conductor Cross Sectional Area No.×mm² |
No. & Nominal Diameter of Strands No/mm |
Nominal Insulation Thickness mm |
Nominal Overall Diameter mm |
Nominal Weight kg/km |
RF602-NSGAFOU-1G1.5 | 1×1.5 | 30/0.25 | 1.3 | 6.5 | 59 |
RF602-NSGAFOU-1G2.5 | 1×2.5 | 50/0.25 | 1.3 | 6.8 | 74 |
RF602-NSGAFOU-1G4 | 1×4.0 | 56/0.3 | 1.3 | 7.7 | 94 |
RF602-NSGAFOU-1G6 | 1×6.0 | 84/0.3 | 1.3 | 8.3 | 118 |
RF602-NSGAFOU-1G10 | 1×10.0 | 80/0.4 | 1.5 | 9.2 | 163 |
RF602-NSGAFOU-1G16 | 1×16.0 | 126/0.4 | 1.5 | 10.1 | 220 |
RF602-NSGAFOU-1G25 | 1×25.0 | 196/0.40 | 1.8 | 12.5 | 336 |
RF602-NSGAFOU-1G35 | 1×35.0 | 276/0.40 | 1.8 | 14.0 | 470 |
RF602-NSGAFOU-1G50 | 1×50.0 | 396/0.40 | 1.8 | 15.5 | 581 |
RF602-NSGAFOU-1G70 | 1×70.0 | 360/0.50 | 1.8 | 17.0 | 772 |
RF602-NSGAFOU-1G95 | 1×95.0 | 475/0.50 | 2.2 | 19.5 | 1030 |
RF602-NSGAFOU-1G120 | 1×120.0 | 608/0.50 | 2.2 | 21.2 | 1280 |
RF602-NSGAFOU-1G150 | 1×150.0 | 756/0.50 | 2.2 | 23.5 | 1650 |
RF602-NSGAFOU-1G185 | 1×185.0 | 925/0.50 | 2.4 | 25.6 | 2050 |
RF602-NSGAFOU-1G240 | 1×240.0 | 1221/0.50 | 2.6 | 27.3 | 2590 |
Impact Resistant |
Highly Flexible |
Oil Resistant |
Weather Resistant |
Laid In conduit |
