Pigtail Rail Connection Cables to SE260L



Applications :

  • These connection cables are designed for use in signalling equipment rooms.

Standards :

  • SE260
  • UNE 21123

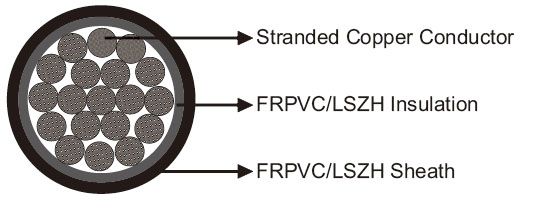

Construction :

  • Conductors : Stranded plain copper conductors to IEC 60228 class 2 or 5.
  • Insulation : FRPVC.
  • Outer sheath : FRPVC.

Optional :

  • Limited fi re hazard pigtail rail connection cables: Stranded tinned copper conductors, LSZH composite insulation.

Electrical Characteristics at 20 °C :

  • Nominal Conductor Cross Section mm2 0.6
    Maximum DC Conductor Resistance Ω/km 1.15/1.16*
    Voltage Rating KV 0.6/1.0
  • *For LSZH cable

Mechanical and Thermal Properties :

  • Minimum Bending Radius : 7.5×OD.
  • Temperature Range : -25°C to +85°C(during operation) ; -10°C to +70°C (during installation).

Dimensions and Weight :



Cable Code No. of cores& Nominal
Conductor Cross
Sectional Area
No.×mm²
No. & Nominal
Diameter of
Strands
No/mm
Nominal
Insulation
Thickness
mm
Nominal
Sheath
Thickness
mm
Nominal
Overall
Diameter
mm
Nominal
Weight
kg/km
RF260-VV-K-0.6/1KV-1G16 1×16 19/1.04 0.7 1.4 10.3 249
RF260-RZ1-K-0.6/1KV-1G16 1×16 19/1.04 0.7 1.4 10.3 255

  K is changed to U if the stranding class is changed from class 5 to class 2.





PVC
Sheath
Flame Retardant
NF C32-070-2.1(C2)
IEC 60332-1/EN 50265-2-1




LSZH
Sheath
Flame Retardant
NF C32-070-2.1(C2)
IEC 60332-1/EN 50265-2-1
Fire Retardant
NF C32-070-2.2(C1)
IEC 60332-3/EN50266
Zero Halogen
IEC 60754-1/NF C20-454
EN 50267-2-1
Low Toxicity


Low Smoke Emission
IEC 61034/NFC20-902
EN 50268/NF C32-073
Low Corrosivity
EN 50267-2-2/NF C32-074
IEC 60754-2/NF C20-453
