0.6/1KV Limited Fire Hazard Rail Connection Cables to SE902



Applications :

  • The single core high performance power cables are used in safety signalling equipment rooms.

Standards :

  • SE902
  • UNE 21123

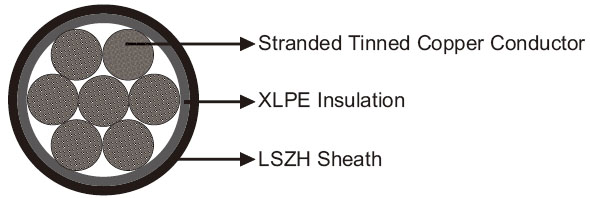

Construction :

  • Conductors : Stranded tinned copper conductors to IEC 60228 class 2 or 5.
  • Insulation : XLPE.
  • Sheath : LSZH.

Electrical Characteristics at 20 °C :

  • Nominal Conductor Cross Section mm2 4.0
    Maximum DC Conductor Resistance Ω/km 4.7
    Voltage Rating KV 0.6/0.1

Mechanical and Thermal Properties :

  • Minimum Bending Radius : 7.5×OD.
  • Temperature Range : -25°C to +85°C(during operation) ; -10°C to +70°C (during installation).

Dimensions and Weight :



Cable Code No. of cores& Nominal
Conductor Cross
Sectional Area
No.×mm²
No. & Nominal
Diameter of
Strands
No/mm
Nominal
Insulation
Thickness
mm
Nominal
Overall
Diameter
mm
Nominal
Weight
kg/km
RF902-RZ1-U-0.6/1KV-1G4 1×4.0 7/0.85 0.8 21.6 624

  U is changed to K if the stranding class is changed from class 2 to class 5.





Low Toxicity



Flame Retardant
NF C32-070-2.1(C2)
IEC 60332-1/EN 50265-2-1
Fire Retardant
NF C32-070-2.2(C1)
IEC 60332-3/EN50266
Zero Halogen
IEC 60754-1/NF C20-454
EN 50267-2-1
Low Smoke Emission
IEC 61034/NFC20-902
EN 50268/NF C32-073
Low Corrosivity
EN 50267-2-2/NF C32-074
IEC 60754-2/NF C20-453
