G7623 Trackside Communications Cables



Applications :

  • The cables are designed for limited fi re hazard applications for internal use within stations, buildings and equipment rooms.

Standards :

  • LUL Spec G7623 A2

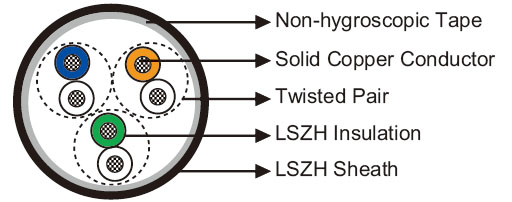

Construction :

  • Conductors : Tinned annealed solid copper, 0.5/0.6/0.63 mm nominal diameter.
  • Insulation : LSZH Insulation.
  • Cabling Element : Two insulated conductors are twisted together to form a pair.
  • Stranding : Cables are composed of unit stranding.
  • Core Wrapping : Non-hygroscopic plastic tape with overlapping.
  • Outer Sheath : LSZH sheath.

Electrical Characteristics at 20 °C :

  • Nominal Conductor Diameter mm 0.5 0.6 0.63
    Maximum Conductor Resistance Ω/km 98 68 58
    Minimum Insulation Resistance @500 V DC MΩ.km 120 120 120
    Maximum Average Mutual Capacitance @1KHz nF/km 80 80 80
    Maximum Average Capacitance Unbalance @800Hz pair-to-pair 500 500 500
    Test Voltage AC 1min V 500 500 500

Mechanical and Thermal Properties :

  • Minimum Bending Radius : 7.5×OD.
  • Temperature Range : -30°C to +70°C (during operation); -10°C +55°C (during installation).

Core Identification :

  • Colour scheme, unit binder colour and cable make-up according to G7623

Dimensions and Weight :



Cable Code No. of pairs Minimum Sheath Thickness
mm
Nominal Overall Diameter
mm
Nominal Weight
kg/km
0.5mm Conductor, 0.82mm Insulated Wire
RS7623A2-HH-1P0.5 1 1.3 6.0 30
RS7623A2-HH-2P0.5 2 1.3 7.0 45
RS7623A2-HH-3P0.5 3 1.4 7.0 50
RS7623A2-HH-6P0.5 6 1.5 9.0 61
RS7623A2-HH-10P0.5 10 1.6 11.0 107
RS7623A2-HH-20P0.5 20 1.9 14.0 190
RS7623A2-HH-40P0.5 40 1.9 16.0 320
RS7623A2-HH-80P0.5 80 2.2 23.0 640
RS7623A2-HH-100P0.5 100 2.2 25.0 760
RS7623A2-HH-160P0.5 160 2.6 29.0 1150
0.6mm Conductor, 1.12mm Insulated Wire
RS7623A2-HH-1P0.6 1 1.4 6.0 35
RS7623A2-HH-2P0.6 2 1.4 7.0 50
RS7623A2-HH-3P0.6 3 1.5 7.0 60
RS7623A2-HH-6P0.6 6 1.6 9.0 85
RS7623A2-HH-10P0.6 10 1.7 11.0 145
RS7623A2-HH-20P0.6 20 2.2 14.0 245
RS7623A2-HH-40P0.6 40 2.2 18.0 410
RS7623A2-HH-80P0.6 80 2.8 25.0 830
RS7623A2-HH-100P0.6 100 2.8 27.0 980
RS7623A2-HH-160P0.6 160 3.2 33.0 1450
0.63mm Conductor, 1.15mm Insulated Wire
RS7623A2-HH-1P0.63 1 1.4 5.5 40
RS7623A2-HH-3P0.63 3 1.5 7.3 70
RS7623A2-HH-5P0.63 5 1.6 8.5 89
RS7623A2-HH-6P0.63 6 1.6 8.9 100
RS7623A2-HH-10P0.63 10 1.7 11.1 170
RS7623A2-HH-12P0.63 12 1.7 11.6 195
RS7623A2-HH-160P0.63 160 3.2 35.0 1595





Mineral Oil Resistant
Rated voltage
Buried in Ciround
Laid In Ducts





PVC
Sheath
Flame Retardant
NF C32-070-2.1(C2)
IEC 60332-1/EN 50265-2-1






LSZH
Sheath
Flame Retardant
NF C32-070-2.1(C2)
IEC 60332-1/EN 50265-2-1
Fire Retardant
NF C32-070-2.2(C1)
IEC 60332-3/EN50266
Zero Halogen
IEC 60754-1/NF C20-454
EN 50267-2-1
Low Toxicity


Low Smoke Emission
IEC 61034/NFC20-902
EN 50268/NF C32-073
Low Corrosivity
EN 50267-2-2/NF C32-074
IEC 60754-2/NF C20-453
