K209B LSZH Armoured Optical Fiber Cables



Applications :

  • The cables are designed for long distance telecommunication and using optical fibres in urban railways infrastructure. These low smoke halogen-free cables are laid on hooks, pulled through ducts or cable trays.

Standards :

  • RATP K209B or RATP K209A

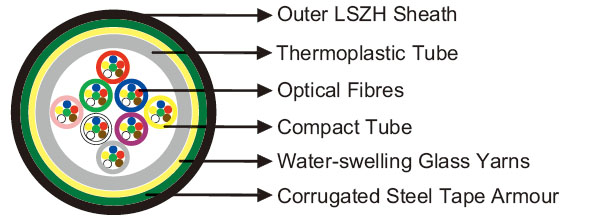

Construction :

  • Compact Tube: 6 or 12 singlemode optical fibres G652 or multimode fibers assembled under thermoplastic “peelable” skin. Tube diameter: 1mm.
  • Filling : Water-swelling yarns.
  • Tube : Thermoplastic.
  • Peripheral Strength Member : Water-swelling glass yarns.
  • Armour : Corrugated steel tape armour 25/100.
  • Sheath : LSZH.

Optional :

  • K209A Type : For K209A type, the cables have loose tubes with 6-12 fi bers, steel wire strand as central strength member, glass yarn reinforced, incorporating a corrugated steel tape armour and an outer UV stabilized LSZH jacket.

Electrical Characteristics at 20 °C :

  • Optical & Geometrical Properties for Single Mode Fibers
  • Maximum Attenuation G652
        @1310nm dB/km 0.35
        @1550nm dB/km 0.22
    Maximum Chromatic Dispersion
        Between 1260 and 1360nm ps/(nm/km) 3.5
        Between 1530 and 1565nm ps/(nm/km) 19
    Zero Dispersion Wavelength nm 1310±11
    Zero Dispersion Slope ps/(nm2.km) 0.09
    Numerical Aperture 0.14
    Point discontinuity dB 0.1
    PMD (individual fi ber) ps/km 0.2
    Maximum Cutoff Wavelength nm 1260
    Cladding Diameter um 125±1
    Core/Cladding Concentricity Error um ≤0.5
    Cladding Non Circularity % ≤1
    Coating Non Circularity % ≤6
    Proof Test Level Kpsi (GN/m2) 100 (0.7)
    Crush Resistance N/cm 300
    Maximum Laying Tension N 3000
  •
  • Optical & Geometrical Properties for Multimode Fibers
  •   50/125 62.5/125
    Maximum Attenuation
        @850nm dB/km ≤2.5 ≤3.0
        @1300nm dB/km ≤0.7 ≤0.8
    Maximum Chromatic Dispersion
        @850nm MHz*km ≥500 ≥200
        @1300nm MHz*km ≥800 ≥500
    Zero Dispersion Wavelength nm 1310 1310
    Numerical Aperture - 0.20±0.015 0.275±0.015
    Core Diameter um 50±3 62.5±3
    Cladding Diameter um 125±2 125±2
    Core/Cladding Concentricity Error(Offset) um ≤1.5 ≤1.5
    Coating-Clad Concentricity Error(Offset) um ≤8 ≤8
    Core Non-Circularity % ≤6 ≤6
    Cladding Non-Circularity % ≤2 1 ≤2 1
    Coating Diameter um 245±10 245±10
    Proof-Test Level Kpsi (GN/m2) 100 (0.7) 100 (0.7)



Mechanical and Thermal Properties :

  • Minimum Bending Radius : 20×OD.
  • Temperature Range : -40°C to +60°C (during operation); -10°C +60°C (during installation).

Dimensions and Weight :



K209A



Cable Code No. of
fibres
Distribution Nominal Sheath
Thickness
mm
Nominal Overall
Diameter
mm
Nominal
Weight
kg/km
RO/K209A-ML-C-9-TnxFn-SR-(STA)H 1-36 6 fi bre per tubes 1.8 12 190
RO/K209A-ML-C-9-TnxFn-SR-(STA)H 42-72 6/12 fi bre per tubes 1.8 13.5 230

  Tn: Number of tubes; Fn: Number of fi bers in a tube.



K209B



Cable Code No. of
fibres
No of Tubes x No of
Fibers/Tube
Nominal Sheath
Thickness
mm
Nominal Overall
Diameter
mm
Nominal
Weight
kg/km
Singlemode Fibres From 6 to 36 OF – G652
RO/K209B-ML-C-9-2x6-F-(STA)H 12 2 tubes of 6 OF 1.8 13 112
RO/K209B-ML-C-9-4x6-F-(STA)H 24 4 tubes of 6 OF 1.8 13 112
RO/K209B-ML-C-9-6x6-F-(STA)H 36 6 tubes of 6 OF 1.8 13 112
Singlemode Fibres From 48 to 72 OF – G652
RO/K209B-ML-C-9-8x6-F-(STA)H 48 8 tubes of 6 OF 2.5 15.5 230
RO/K209B-ML-C-9-6x12-F-(STA)H 72 6 tubes of 12 OF 2.8 15.5 230
Multimode Fibres From 6 to 36 OF – 50/125
RO/K209B-ML-C-9-1x6-F-(STA)H 6 1 tubes of 6 OF 1.8 13 112
RO/K209B-ML-C-9-2x6-F-(STA)H 12 2 tubes of 6 OF 1.8 13 112








Impact Resistant
Mineral Oil Resistant
Acid&Alkaline Resistant

Laid in Cable
Trays/on Hooks
Low Toxicity



Flame Retardant
NF C32-070-2.1(C2)
IEC 60332-1/EN 50265-2-1
Fire Retardant
NF C32-070-2.2(C1)
IEC 60332-3/EN50266
Zero Halogen
IEC 60754-1/NF C20-454
EN 50267-2-1
Low Smoke Emission
IEC 61034/NFC20-902
EN 50268/NF C32-073
Low Corrosivity
EN 50267-2-2/NF C32-074
IEC 60754-2/NF C20-453
