K20 & L120 LSZH Armoured F/FTP Cat6 Cables



Applications :

  • The cables are designed for high speed data transmissions, and are suitable for installations in cable trays or on hooks.

Standards :

  • RATP CAT6-K20 (for K20 cable)
  • FRANCE TELECOM S31-10/20 & NF C 93.531-6/7 (for L120 cable)

K20
L120

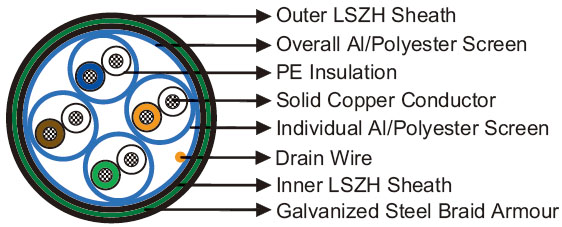

Construction :

  • Conductors : Class 1 AWG23 solid copper conductor (for K20 cable); 0.6mm annealed copper conductor (for L120 cable).
  • Insulation : Solid polyethylene (for K20 cable); Foam skin (cellular PE + solid PE) (for L120 cable).
  • Cabling Element : Two conductors are twisted together to form a pair (for K20 cable); Four conductors are twisted together to form a quad (for L120 cable).
  • Core Wrapping (for L120 cable) : Non-hygroscopic plastic tape with overlapping.
  • Individual Screen (for K20 cable) : Alu/polyester shield on each pair.
  • Overall Screen : Alu/polyester shield.
  • Drain Wire : Tinned copper drain wire, 0.5mm nominal diameter.
  • Inner Sheath (for K20 cable) : LSZH.
  • Armour (for K20 cable) : Galvanized steel braid armour.
  • Outer Sheath : LSZH.

Optional :

  • Armoured L120 Cables: Tinned copper braid armoured cables can be offered upon request.

Electrical Characteristics at 20 °C :

  • Nominal Conductor Diameter mm 0.56 (K20) 0.6 (L120)
    AWG 23 23
    Maximum Conductor Resistance Ω/km 146.4 133.2
    Minimum Insulation Resistance @500 V DC MΩ/km 500 5000
    Characteristics Impedance @100MHz Ω 100 120+15
    Maximum Capacitance Unbalance
        Real/earth pF/km 1600 300
    Maximum Average Attenuation
        @1MHz dB/100m 2.0 2.0
        @4MHz dB/100m 3.8 3.8
        @10MHz dB/100m 6.0 6.0
        @16MHz dB/100m 7.6 7.6
        @25MHz dB/100m 9.5 9.5
        @31.25MHz dB/100m 10.7 10.7
        @62.5MHz dB/100m 15.4 15.4
        @100MHz dB/100m 19.8 19.8
        @250MHz dB/100m 32.9 32.9
    Minimum NEXT Pair to Pair
        @1MHz dB 77.3 77.3
        @4MHz dB 68.3 68.3
        @10MHz dB 62.3 62.3
        @16MHz dB 59.2 59.2
        @25MHz dB 56.3 56.3
        @31.25MHz dB 54.9 54.9
        @62.5MHz dB 50.4 50.4
        @100MHz dB 47.3 47.3
        @250MHz dB 41.3 41.3
    Minimum ELFEXT Pair to Pair
        @1MHz dB 68.8 68.8
        @4MHz dB 56.8 56.8
        @10MHz dB 48.8 48.8
        @16MHz dB 44.7 44.7
        @25MHz dB 40.8 40.8
        @31.25MHz dB 38.9 38.9
        @62.5MHz dB 32.8 32.8
        @100MHz dB 28.8 28.8
        @250MHz dB 20.8 20.8

Mechanical and Thermal Properties :

  • Minimum Bending Radius : 12×OD (static); 24×OD (dynamic).
  • Temperature Range : -40°C to +60°C (during operation); -10°C +60°C (during installation).

Dimensions and Weight :



K20 cables



Cable Code No. of
pairs
Nominal Sheath Thickness
mm
Nominal Overall
Diameter
mm
Nominal Weight
kg/km
Inner Outer
0.56mm conductor, 1.45mm Insulated Wire
RD/K20-F/FTPCat6-2Y(St)H(SWB)H-PIMF-4P0.56 4 1.0 1.0 11.7 156



L120 cables



Cable Code No. of pairs Nominal Sheath
Thickness
mm
Nominal Overall
Diameter
mm
Nominal Weight
kg/km
0.6mm conductor, 1.34mm Insulated Wire
RD/L120-F/FTPCat6-02YHH-4P0.6 4(2Q) 1.8 8.5 x 6* 60
RD/L120-F/FTPCat6-02YHH-8P0.6 8(2 x 4p) 1.8 18 x 6** 120
RD/L120-F/FTPCat6-02YHH-12P0.6 12(3 x 4p) 1.8 16 235
RD/L120-F/FTPCat6-02YHH-32P0.6 32(4 x 4Q) 1.8 19 360
RD/L120-F/FTPCat6-02YHH-64P0.6 64(8 x 4Q) 1.8 30 675
RD/L120-F/FTPCat6-02YHH-128P0.6 128(4SU x 4Q) 1.8 40 1250

SU=super unit.
* For 4 pair L120 cable, 8 insulated wires form 2 quads and the cable is fl at.
** For 8 pair L120 cable, two fl at quads are assembled under a common LSH sheath.






Impact Resistant
Mineral Oil Resistant
Acid&Alkaline Resistant

Laid in Cable
Trays/on Hooks
Low Toxicity



Flame Retardant
NF C32-070-2.1(C2)
IEC 60332-1/EN 50265-2-1
Fire Retardant
NF C32-070-2.2(C1)
IEC 60332-3/EN50266
Zero Halogen
IEC 60754-1/NF C20-454
EN 50267-2-1
Low Smoke Emission
IEC 61034/NFC20-902
EN 50268/NF C32-073
Low Corrosivity
EN 50267-2-2/NF C32-074
IEC 60754-2/NF C20-453
