K26 LSZH 50/75Ω Coaxial Cables



Applications :

  • The 50Ω cables are HF transmission coaxial cables for GSM antennas, and the 75Ω cables are HF transmission coaxial cables for cameras (type KX6), and video surveillance (type 11 RTC). The Halogen-free cables are suitable for laid on hooks, and pulled through walls or through technical ducts.

Standards :

  • RATP K26
  • Fire Performance: NF C 32070.2.2

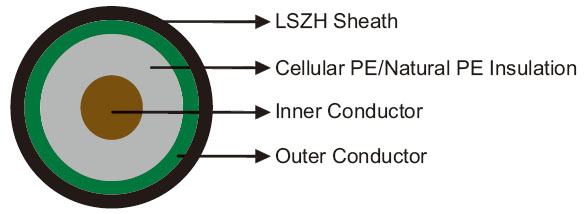

Construction :

  • Inner Conductors :
      50Ω cables :
        Flexible Type (F) solid copper coated aluminium (for 1/4″ , 3/8″ &1/2″ F conductor); red copper tube (for 7/8″ and 1'1/4 F conductor); corrugated red copper tube (for 1'5/8 F conductor).
        Super Flexible Type (SF) solid copper coated aluminium (for 3/8″ & 1/2″ SFconductor); helical corrugated copper tube (for 7/8” SF conductor); copper wire (for 1/4″ SFconductor).
        Extra Flexible (XF) copper wire (for 1/4" XF conductor); solid copper coated aluminium (for 3/8" XF conductor).
      75Ω cables : solid red copper (for type 11 RTC) or red copper tube (for type KX6).
  • Dielectric : Cellular PE or natural PE (only for KX6 type).
  • Outer Conductor :
      50Ω cables : corrugated copper tube.
      75Ω cables : copper braid.
  • Outer sheath : LSZH.

Electrical Characteristics at 20 °C :

  • 50Ω Cables
  • Type of Cable inch 1/4"F 3/8"F 1/2"F 7/8"F 1'1/4F 1'5/8F
    Impedance Ω 50 50 50 50 50 50
    Attenuation
        @10MHz dB/100m 1.25 1.46 0.65 0.34 0.25 0.2
        @150MHz dB/100m 4.99 4.22 2.61 1.45 1.02 0.85
        @200MHz dB/100m 5.8 4.90 3.04 1.69 1.19 1.00
        @450MHz dB/100m 8.8 7.51 4.66 2.61 1.86 1.57
        @900MHz dB/100m 12.8 11.1 6.78 3.81 2.75 2.34
        @1000MHz dB/100m 13.5 11.6 7.18 4.04 2.93 2.49
        @1500MHz dB/100m 17.0 14.4 8.99 5.08 3.72 3.17
        @1500MHz dB/100m 18.3 15.5 9.64 5.45 4.01 3.42
    Average Power Rating
        @10MHz KW 5.79 7.23 13 28.0 41 57
        @150MHz KW 1.45 1.81 3.2 7.0 11 13
        @200MHz KW 1.25 1.56 2.75 6.0 9.0 11
        @450MHz KW 0.818 1.02 1.8 3.88 5.5 6.9
        @900MHz KW 0.566 0.70 1.25 2.65 3.83 4.49
        @1000MHz KW 0.533 0.663 1.18 2.50 3.60 4.20
        @1500MHz KW 0.426 0.53 0.947 1.99 2.82 3.22
        @1700MHz KW 0.398 0.494 0.884 1.85 2.61 2.96
    Velocity of Propagation % 85 88 88 88 88 88
  •
  • Type of Cable inch 1/4"SF 3/8"SF 1/2"SF 7/8"SF 1/4"XF

    3/8"XF

    Impedance Ω 50 50 50 50 50 50
    Attenuation
        @10MHz dB/100m 1.71 1.3 0.83 0.39 2.31 1.098
        @150MHz dB/100m 6.89 4.89 3.87 1.59 7.44 4.38
        @200MHz dB/100m 8.01 5.59 4.53 1.85 8.54 5.098
        @450MHz dB/100m 12.31 8.49 7.09 2.85 14.3 7.83
        @900MHz dB/100m 17.92 12.66 10.45 4.15 20.5 11.4
        @1000MHz dB/100m 18.98 13.5 11.09 4.4 21.83 12.1
        @1500MHz dB/100m 23.78 17.43 13.98 5.52 27.13 15.1
        @1700MHz dB/100m 25.51 18.91 15.03 5.92 29.5 16.2
    Average Power Rating
        @10MHz KW 2.8 6.0 8.4 21.5 3.8 7.02
        @150MHz KW 0.7 1.52 2.1 5.4 0.9 1.76
        @200MHz KW 0.6 1.31 1.81 4.6 0.8 1.51
        @450MHz KW 0.39 0.86 1.18 3.0 0.51 0.99
        @900MHz KW 0.272 0.593 0.815 2.07 0.37 0.68
        @1000MHz KW 0.257 0.56 0.77 1.95 0.34 0.64
        @1500MHz KW 0.206 0.449 0.616 1.55 0.26 0.51
        @1700MHz KW 0.192 0.42 0.575 1.45 0.24 0.48
    Velocity of Propagation % 83 81 82 88 84 85
  •
  • 75Ω Cables
  • Type of Cable inch 11 RTC KX6
    Impedance Ω 75 75
        @50MHz dB/100m 2.5 8.13
        @100MHz dB/100m 3.6 11.73
        @150MHz dB/100m 4.6 14.73
        @200MHz dB/100m 5.4 16.92
        @500MHz dB/100m 8.5 27.0
        @800MHz dB/100m 10.5 35.1
        @1000MHz dB/100m 12.2 40.02
    Velocity of Propagation % 87 66



Mechanical and Thermal Properties :

  • Minimum Bending Radius : 7.5×OD.
  • Temperature Range : 50Ω cables: -40°C to +85°C (during operation); -20°C to +60°C (during installation);
      75Ω cables: -20°C to +85°C (during operation); -10°C to +60°C (during installation).

Dimensions and Weight :



50Ω Cables



Cable Code Nominal Inner
Conductor Diameter
mm
Nominal Outer
Conductor Diameter
mm
Nominal Overall
Diameter
mm
Nominal Overall
Diameter
mm
1/4″ F Cable Type
RS/K26-F-HCAAYZ-50-6(1/4") 2.5 7.6 9.5 145
3/8″ F Cable Type
RS/K26-F-HCAAYZ-50-8(3/8") 3.3 9.5 11.5 204
1/2″ F Cable Type
RS/K26-F-HCAAYZ-50-12(1/2") 4.8 13.7 16.0 248
7/8″ F Cable Type
RS/K26-F-HCTAYZ-50-22(7/8") 9.0 24.8 27.75 575
1'1/4 F Cable Type
RS/K26-F-HCTAYZ-50-32(1'1/4) 13.0 35.7 39.5 1133
1'5/8 F Cable Type
RS/K26-F-HHTAYZ-50-42(1'5/8) 17.3 46.2 50.0 1631
1/4″ SF Cable Type
RS/K26-HRYZ-50-5(1/4" SF) 1.9 6.4 7.95 99
3/8″ SF Cable Type
RS/K26-HRCAYZ-50-7(3/8" SF) 2.8 9.6 11.15 159
1/2″ SF Cable Type
RS/K26-HRCAYZ-50-9(1/2" SF) 3.6 12.1 13.65 201
7/8″ SF Cable Type
RS/K26-HRCTYZ-50-22(7/8" SF) 9.4 25.0 27.5 550
1/4″ XF Cable Type
RS/K26-HRYZ-50-5(1/4" XF) 5.75 5.6 6.85 69
3/8″ XF Cable Type
RS/K26-HRCAYZ-50-7(3/8" XF) 2.76 8.0 10.1 111

*F = fl exible, SF = super fl exible, XF = extrafl exible



75Ω Cables



Cable Code Nominal Inner
Conductor Diameter
mm
Nominal Outer Conductor
Diameter
mm
Nominal Overall
Diameter
mm
Nominal Weight
kg/km
11 RTC Cable Type
RS/K26-11RTC-BC80-H 1.7 7.85 10.3 115
KX6 Cable Type
RS/K26-KX6-BC80-H 0.6 4.85 7.2 66








Impact Resistant
Mineral Oil Resistant
Acid&Alkaline Resistant

Laid in Cable
Trays/on Hooks
Low Toxicity



Flame Retardant
NF C32-070-2.1(C2)
IEC 60332-1/EN 50265-2-1
Fire Retardant
NF C32-070-2.2(C1)
IEC 60332-3/EN50266
Zero Halogen
IEC 60754-1/NF C20-454
EN 50267-2-1
Low Smoke Emission
IEC 61034/NFC20-902
EN 50268/NF C32-073
Low Corrosivity
EN 50267-2-2/NF C32-074
IEC 60754-2/NF C20-453
