RT/ZHLS, A-2Y(L)2Y External Telephone Cables to NR/PS/TEL/00015
Applications :
- The cables are designed primarily for trackside railway installation in non electrifi ed area. For direct burial application, brass tape armoured or Zetabon type corrugated steel tape armoured can be offered against rodent attack.
Standards :
- NR/PS/TEL/00015 (formerly RT/E/PS/00015 or GK/RT 0315)
- TS0886/BR1822
- BR892
Construction :
- Conductors : Solid plain copper conductor, 0.63 or 0.9 mm nominal diameter.
- Insulation : Solid polyethylene to BS 6234.
- Cabling Element : Two insulated conductors are twisted together to form a pair.
- Stranding : Pairs are helically stranded in 10 pair units.
- Core Wrapping : Plastic tape(s) with overlapping.
- Moisture Barrier : One laminated sheath made of aluminium tape (0.15mm) coated with PE-Copolymer on at least one side is applied with longitudinally overlap.
- Outer Sheath : Polyethylene to BS 6234. LSZH compound option can be offered upon request.
Optional :
- Jelly Filled Cables : The cable core interstices are fi lled with petroleum jelly to avoid longitudinal water penetration within the cable. The water resistant filling compound is applied to the air space between non-hygroscopic tape and shield, shield and sheath within the cable core.
- Armoured Cables : Corrugated steel tape armour coated on both sides with copolymer can be applied over an intermediate sheath. The steel tape thickness is 0.145mm. Brass tape armour can be offered as an option.
Core Identification :
- Colour scheme, unit binder colour and cable make-up according to NR/PS/TEL/00015.
Electrical Characteristics at 20 °C :
-
Nominal Conductor Diameter mm 0.63 0.9 Maximum Conductor Resistance Ω/km 60.0 30.0 Minimum Insulation Resistance @500 V DC (1min) MΩ.km 1500 1500 Maximum Conductor Capacitance @1000Hz (AC) Maximum Average Value
For 20 pairs or less nF/km 70 79 More than 20 pairs nF/km 67 75 Maximum Individual Value 99% of pairs Up to 20 pairs nF/km 79.0 85.0 More than 20 pairs nF/km 75.0 81.0 Maximum Capacitance Unbalance @1000Hz pair to pair (99% of pairs) For 2 pairs (1 quad) pF/500m 800 800 All other sizes pF/500m 275 275 Dielectric Strength, conductor to screen (DC voltage 2mins) V 2000 2000 Maximum Average Attenuation @1.0KHz dB/km 1.40 0.95 @2.4KHz dB/km 2.15 1.46 @1.024MHz dB/km 18.70 14.6 Minimum Average Near-end Crosstalk @1.0KHz dB/km 70 70 @2.4KHz dB/km 65 65 @1.024MHz Within Units dB/km 40 40 Between Units dB/km 47 47 High Voltage Breakdown Test DC for 2mins V 2000 2000 AC for 2mins V 1333 1333
Mechanical and Thermal Properties :
- Minimum Bending Radius : 7.5×OD (unarmoured); 10×OD (armoured).
- Temperature Range : -40°C to +70°C (during operation); -10°C +60°C (during installation).
Dimensions and Weight :

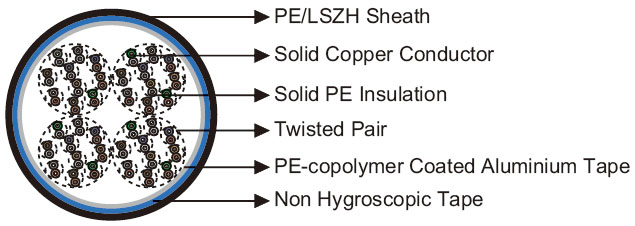

A-2Y(L)2Y n×2×0.63/0.9
Cable Code | Number of Pairs (n) |
Nominal Sheath Thickness mm |
Maximum Overall Diameter mm |
Nominal Weight kg/km |
0.63mm Conductor, 1.15mm Insulated Wire | ||||
RS/RT/ZHLS-2Y(L)2Y-2P0.63 | 2 | 2.7 | 12.3 | 103 |
RS/RT/ZHLS-2Y(L)2Y-5P0.63 | 5 | 2.7 | 13.8 | 155 |
RS/RT/ZHLS-2Y(L)2Y-10P0.63 | 10 | 2.7 | 15.6 | 212 |
RS/RT/ZHLS-2Y(L)2Y-20P0.63 | 20 | 2.7 | 18.1 | 309 |
RS/RT/ZHLS-2Y(L)2Y-30P0.63 | 30 | 2.7 | 20.4 | 403 |
RS/RT/ZHLS-2Y(L)2Y-50P0.63 | 50 | 2.7 | 24.2 | 574 |
RS/RT/ZHLS-2Y(L)2Y-75P0.63 | 75 | 2.7 | 28.2 | 779 |
RS/RT/ZHLS-2Y(L)2Y-100P0.63 | 100 | 2.7 | 31.0 | 974 |
0.9mm Conductor, 1.5mm Insulated Wire | ||||
RS/RT/ZHLS-2Y(L)2Y-2P0.9 | 2 | 2.7 | 13.3 | 131 |
RS/RT/ZHLS-2Y(L)2Y-5P0.9 | 5 | 2.7 | 15.6 | 208 |
RS/RT/ZHLS-2Y(L)2Y-10P0.9 | 10 | 2.7 | 18.1 | 305 |
RS/RT/ZHLS-2Y(L)2Y-20P0.9 | 20 | 2.7 | 21.9 | 477 |
RS/RT/ZHLS-2Y(L)2Y-30P0.9 | 30 | 2.7 | 25.2 | 639 |
RS/RT/ZHLS-2Y(L)2Y-50P0.9 | 50 | 2.7 | 30.0 | 951 |
RS/RT/ZHLS-2Y(L)2Y-75P0.9 | 75 | 2.7 | 35.8 | 1325 |
RS/RT/ZHLS-2Y(L)2Y-100P0.9 | 100 | 2.7 | 39.1 | 1688 |

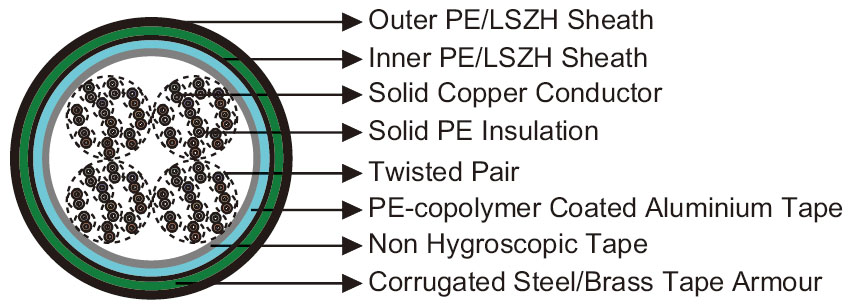

A-2Y(F)(L)2YB2Y n×2×0.63/0.9 Jelly Filled & Armoured Cables
Cable Code | Number of Pairs (n) |
Nominal Sheath Thickness mm |
Maximum Overall Diameter mm |
Nominal Weight kg/km |
|
Inner | Outer | ||||
0.63mm Conductor, 1.15mm Insulated Wire | |||||
RS/RT/ZHLS-2Y(F)(L)2YB2Y-2P0.63 | 2 | 1.6 | 1.6 | 18.0 | 222 |
RS/RT/ZHLS-2Y(F)(L)2YB2Y-5P0.63 | 5 | 1.6 | 1.6 | 19.5 | 296 |
RS/RT/ZHLS-2Y(F)(L)2YB2Y-10P0.63 | 10 | 1.6 | 1.6 | 20.3 | 383 |
RS/RT/ZHLS-2Y(F)(L)2YB2Y-20P0.63 | 20 | 1.6 | 1.6 | 23.8 | 504 |
RS/RT/ZHLS-2Y(F)(L)2YB2Y-30P0.63 | 30 | 1.6 | 1.6 | 26.1 | 606 |
RS/RT/ZHLS-2Y(F)(L)2YB2Y-50P0.63 | 50 | 1.6 | 1.6 | 29.9 | 903 |
RS/RT/ZHLS-2Y(F)(L)2YB2Y-75P0.63 | 75 | 1.6 | 1.6 | 33.9 | 1202 |
RS/RT/ZHLS-2Y(F)(L)2YB2Y-100P0.63 | 100 | 1.6 | 1.6 | 36.7 | 1463 |
0.9mm Conductor, 1.5mm Insulated Wire | |||||
RS/RT/ZHLS-2Y(F)(L)2YB2Y-2P0.9 | 2 | 1.6 | 1.6 | 19.0 | 250 |
RS/RT/ZHLS-2Y(F)(L)2YB2Y-5P0.9 | 5 | 1.6 | 1.6 | 21.3 | 370 |
RS/RT/ZHLS-2Y(F)(L)2YB2Y-10P0.9 | 10 | 1.6 | 1.6 | 23.8 | 508 |
RS/RT/ZHLS-2Y(F)(L)2YB2Y-20P0.9 | 20 | 1.6 | 1.6 | 27.6 | 782 |
RS/RT/ZHLS-2Y(F)(L)2YB2Y-30P0.9 | 30 | 1.6 | 1.6 | 30.9 | 1000 |
RS/RT/ZHLS-2Y(F)(L)2YB2Y-50P0.9 | 50 | 1.6 | 1.6 | 35.7 | 1402 |
RS/RT/ZHLS-2Y(F)(L)2YB2Y-75P0.9 | 75 | 1.6 | 1.6 | 41.5 | 2055 |
RS/RT/ZHLS-2Y(F)(L)2YB2Y-100P0.9 | 100 | 1.6 | 1.6 | 44.8 | 2550 |
UV Resistant |
Water Resistant |
Rated Voltage |
Laid In Ducts |
Buried in Ciround |
Zero Halogen IEC 60754-1/NF C20-454 EN 50267-2-1 |
