ST2513/CT2243 Outdoor Single Mode Unarmoured Trackside Optical Fiber Cables



Applications :

  • The cables are designed for long distance telecom links on optical fibres along railway tracks. The cables are suitable for pulled through ducts or laid in channels.

Standards :

  • SNCF ST 2513-99

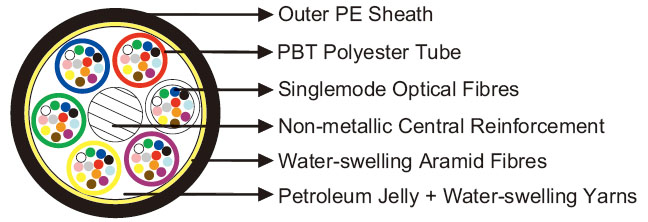

Construction :

  • Fibres : Singlemode optical fibres G652 coloured (6 or 12 per tube).
  • Tube : PBT polyester tubes From 12 to 72 OFs: 1 to 6 tubes; 144 OFs: 12 tubes.
  • Central Strength Member : Non-metallic central reinforcement (FRP).
  • Filling : Petroleum jelly + water-swelling yarns.
  • Reinforcement : Water-swelling aramid fi bres.
  • Sheath : PE sheath.

Electrical Characteristics at 20 °C :

  • Maximum Attenuation G652
        @1310nm dB/km 0.35
        @1550nm dB/km 0.22
    Maximum Chromatic Dispersion
        Between 1260 and 1360nm ps/(nm/km) 3.5
        Between 1530 and 1565nm ps/(nm/km) 19
    Zero Dispersion Wavelength nm 1310±11
    Zero Dispersion Slope ps/(nm2.km) 0.09
    Numerical Aperture 0.14
    Point discontinuity dB 0.1
    PMD (individual fi ber) ps/km 0.2
    Maximum Cutoff Wavelength nm 1260
    Cladding Diameter um 125±1
    Core/Cladding Concentricity Error um ≤0.5
    Cladding Non Circularity % ≤1
    Coating Non Circularity % ≤6
    Proof Test Level Kpsi (GN/m2) 100 (0.7)
    Crush Resistance N/cm 300
    Maximum Laying Tension N From 12 to 72 FO: 2500;144 FO: 3000

Mechanical and Thermal Properties :

  • Minimum Bending Radius : from 12 to 72 FO: 230mm; 144 FO: 340mm.
  • Temperature Range : -30°C to +60°C (during operation); -10°C +60°C (during installation).

Dimensions and Weight :



Cable Code No. of fi bres No of Tubes x No
of Fibers/Tube
Nominal Sheath
Thickness
mm
Nominal Overall
Diameter
mm
Nominal
Weight
kg/km
RO2513-ML-B-9-1×12-F-2Y 12 1 tubes of 12 OF 1.5 11.6 112
RO2513-ML-B-9-3×12-F-2Y 36 3 tubes of 12 OF 1.5 11.6 112
RO2513-ML-B-9-6×6-F-2Y 36 6 tubes of 6 OF 1.5 11.6 112
RO2513-ML-B-9-6×12-F-2Y 72 6 tubes of 12 OF 1.5 11.6 112
RO2513-ML-B-9-12×12-F-2Y 144 12 tubes of 12 OF 1.5 17.0 225






UV Resistant
Water Resistant

Buried in Ciround
Laid In Ducts
Zero Halogen
IEC 60754-1/NF C20-454
EN 50267-2-1
