Applications :

• The cables are designed for transmission of low frequent signals up to 90 KHz through symmetric circuits in railway networks, and are suitable for laying directly into the ground or in ducts.

Standards :

• Dlk 1.013.109y
• Dlk 1.013.110y



Construction :

• Conductors : Solid Annealed copper, 0.9 or 1.4 mm nominal diameter.
• Insulation : Solid polyethylene.

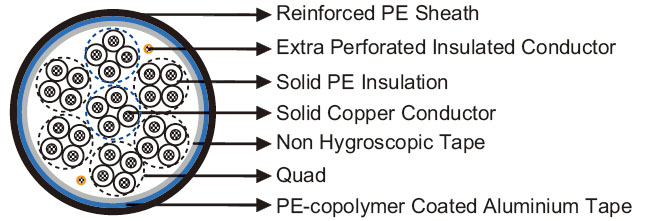

• Cabling Element : Four insulated conductors are twisted together to form a quad.
• Stranding : Quads are helically stranded in concentric layers. Cables from 7 quads on, have two extra conductors of 0.5mm with perforated insulation (surveillance conductors).
• Core Wrapping : Plastic tape(s) with overlapping.
• Moisture Barrier : One laminated sheath made of aluminium tape (0.15mm) coated with PE-Copolymer on at least one side is applied with longitudinally overlap.
• Outer Sheath : Polyethylene, with reinforced radial thickness.

Type Codes :

• A–	outdoor cable
  2Y	solid PE conductor insulation	S	signal cable
  (L)2Yv	laminated sheath with increased wall thickness	LG	layer stranding

• Ring marking of Quad
  The single core is identified by black ring markings:
  Side Circuit 1	a-wire	without marking
  	b-wire	1 mark distance 17mm
  Side Circuit 2	a-wire	2 marks distance 34mm
  	b-wire	2 marks distance 17mm



Electrical Characteristics at 20 °C :

• Nominal Conductor Diameter	mm	0.9	1.4
  Maximum Conductor Resistance	Ω/km	56.6	23.4
  Minimum Insulation Resistance @500 V DC (1min)	MΩ.km	1000	1000
  Maximum Conductor Capacitance @800Hz (AC)	nF/km	45	45
  Maximum Capacitance Unbalance @800Hz
  K1 (100% / 50% all values)	pF/km	650/150	650/150
  K9-12 neighboured quads	pF/km	500/150	500/150
  K9-12 over-neighboured quads	pF/km	150	150
  Ea1/2	pF/km	1300	1300
  Miniumum Far-end Crosstalk Attenuation @90KHz
  100% / 80% all values	dB/km	58/62	33/45
  Maximum Attenuation @90KHz	dB/km	3.3	2.6
  Dielectric Strength, conductor to conductor (DC voltage 1min)	V	3535	3535
  Surveillance Conductors
  Loop resistance, maximum	Ω/km	190	190
  Insulation resistance
  - dry cable core, minimum	MΩ.km	1000	1000
  - wet cable core, maximum	KΩ.km	30	30
  Operating Voltage AC/DC	V	420/600	420/600
  Test Voltage 50 Hz 1 min
  Core to Core	Veff	2500	2500
  Core to Screen	Veff	2500	2500

Mechanical and Thermal Properties :

• Minimum Bending Radius : 7.5 x OD.
• Temperature Range : -40°C to +60°C (during operation); -10°C +60°C (during installation).

Dimensions and Weight :



Cable Code	Number of Quads	Nominal Sheath Thickness mm	Nominal Overall Diameter mm	Nominal Weight kg/km
0.9mm Conductor, 1.8mm Insulated Wire
RS109y-2Y(L)2Yv-1Q0.9-S(H45)	1	2.0	10.0	95
RS109y-2Y(L)2Yv-3Q0.9-S(H45)	3	2.0	15.0	200
RS109y-2Y(L)2Yv-5Q0.9-S(H45)	5	2.0	17.0	280
RS109y-2Y(L)2Yv-7Q0.9-S(H45)	7	2.0	19.0	360
RS109y-2Y(L)2Yv-10Q0.9-S(H45)	10	2.0	22.0	480
RS109y-2Y(L)2Yv-14Q0.9-S(H45)	14	2.0	25.0	620
RS109y-2Y(L)2Yv-20Q0.9-S(H45)	20	2.0	28.0	830
RS109y-2Y(L)2Yv-30Q0.9-S(H45)	30	2.2	34.0	1200
RS109y-2Y(L)2Yv-40Q0.9-S(H45)	40	2.2	38.0	1550
1.4mm Conductor, 2.8mm Insulated Wire
RS109y-2Y(L)2Yv-1Q1.4-S(H45)	1	2.0	12.0	150
RS109y-2Y(L)2Yv-3Q1.4-S(H45)	3	2.0	19.0	350
RS109y-2Y(L)2Yv-5Q1.4-S(H45)	5	2.0	22.0	530
RS109y-2Y(L)2Yv-7Q1.4-S(H45)	7	2.0	24.0	690
RS109y-2Y(L)2Yv-10Q1.4-S(H45)	10	2.0	29.0	950
RS109y-2Y(L)2Yv-14Q1.4-S(H45)	14	2.2	33.0	1280
RS109y-2Y(L)2Yv-20Q1.4-S(H45)	20	2.2	39.0	1750
RS109y-2Y(L)2Yv-30Q1.4-S(H45)	30	2.2	46.0	2550
RS109y-2Y(L)2Yv-40Q1.4-S(H45)	40	2.2	53.0	3320





UV Resistant	Water Resistant	Rated Voltage		Buried in Ciround	Laid In Ducts	Zero Halogen IEC 60754-1/NF C20-454 EN 50267-2-1
