Applications :
- The cables are designed in railways signalling networks, and are suitable for installation in ducts or laying directly into the ground.
Standards :
- Dlk 1.013.107y
- Dlk 1.013.108y (for 1.4/1.8mm conductor H95 type)
- Dlk 1.013.110y
 |
 |
Construction :

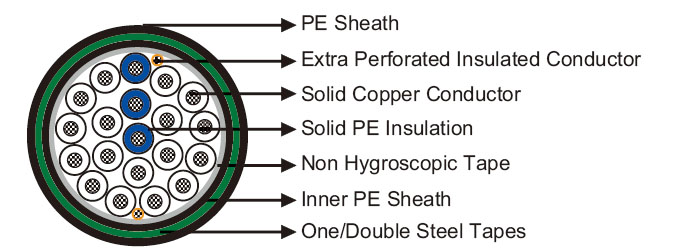

- Conductors : Solid annealed copper, 0.9, 1.4 or 1.8 mm nominal diameter.
- Insulation : Solid polyethylene.
- Stranding : Single conductors are helically stranded in concentric layers. Cables from 14 conductors on have two extra conductors of 0.5mm with perforated insulation (surveillance conductors).
- Core Wrapping : Plastic tape(s) with overlapping.
- Inner Sheath : Low density polyethylene.
- Armouring : One layer of galvanized steel tape (0.2-0.3mm) or two layers of galvanized steel tapes (0.1mm).
- Outer Sheath : Low density polyethylene.
Type Codes :
-
A- outdoor cable 2Y solid PE conductor insulation 2Y inner PE sheath B steel tape armor 2Y outer PE sheath S signal cable LG layer stranding H (n) operating capacity
Electrical Characteristics at 20 °C :
-
Nominal Conductor Diameter mm 0.9 1.4 1.8 Maximum Conductor Resistance Ω/km 28.9 11.9 7.2 Minimum Insulation Resistance @500 V DC (1min) MΩ.km 10000 10000 10000 Maximum Conductor Capacitance @800Hz (AC) nF/km 115 145/95* 145/95* Dielectric Strength, conductor to conductor (DC voltage 1min) V 3535 3535 3535 Surveillance Conductors Loop resistance, maximum Ω/km 190 190 190 Insulation resistance - dry cable core, minimum MΩ.km 1000 1000 1000 - wet cable core, maximum KΩ.km 30 30 30 Operating Voltage AC/DC V 420/600 420/600 420/600 Test Voltage@50 Hz 1 min Core to Core Veff 2500 2500 2500 Core to Screen Veff 2500 2500 2500 - *The value“ 95” is only for cables with 1.4/1.8mm conductors according to Dlk 1.013.108y.
Mechanical and Thermal Properties :
- Minimum Bending Radius : 10xOD.
- Operating Temperature : -40°C to +60°C (during operation); -10°C +60°C (during installation).
Dimensions and Weight :
A-2Y2YB2Y n x1x 0.9 S(H115)
| Cable Code | Number of conductors (n) |
Nominal Sheath Thickness mm |
Nominal Overall Diameter mm |
Nominal
Weight kg/km |
|
| Inner | Outer | ||||
| 0.9mm Conductor, 1.55mm Insulated Wire | |||||
| RS107y-2Y2YB2Y-2C0.9-S(H115) | 2 | 1.3 | 1.2 | 12.0 | 120 |
| RS107y-2Y2YB2Y-4C0.9-S(H115) | 4 | 1.3 | 1.2 | 13.0 | 140 |
| RS107y-2Y2YB2Y-7C0.9-S(H115) | 7 | 1.3 | 1.2 | 14.0 | 170 |
| RS107y-2Y2YB2Y-10C0.9-S(H115) | 10 | 1.3 | 1.2 | 15.5 | 220 |
| RS107y-2Y2YB2Y-14C0.9-S(H115) | 14 | 1.3 | 1.2 | 16.0 | 260 |
| RS107y-2Y2YB2Y-20C0.9-S(H115) | 20 | 1.3 | 1.2 | 17.0 | 320 |
| RS107y-2Y2YB2Y-24C0.9-S(H115) | 24 | 1.3 | 1.2 | 19.0 | 370 |
| RS107y-2Y2YB2Y-30C0.9-S(H115) | 30 | 1.3 | 1.2 | 19.0 | 410 |
| RS107y-2Y2YB2Y-40C0.9-S(H115) | 40 | 1.3 | 1.2 | 20.0 | 500 |
| RS107y-2Y2YB2Y-50C0.9-S(H115) | 50 | 1.3 | 1.2 | 22.0 | 590 |
| RS107y-2Y2YB2Y-60C0.9-S(H115) | 60 | 1.3 | 1.2 | 23.0 | 680 |
| RS107y-2Y2YB2Y-80C0.9-S(H115) | 80 | 1.3 | 1.2 | 25.0 | 840 |
| RS107y-2Y2YB2Y-100C0.9-S(H115) | 100 | 1.3 | 1.3 | 28.0 | 1020 |
| RS107y-2Y2YB2Y-120C0.9-S(H115) | 120 | 1.3 | 1.3 | 29.0 | 1180 |
| RS107y-2Y2YB2Y-140C0.9-S(H115) | 140 | 1.3 | 1.3 | 31.0 | 1360 |
A-2Y2YB2Y n x1x 1.4/1.8 S(H145)
| Cable Code | Number of conductors (n) |
Nominal Sheath Thickness mm |
Nominal Overall Diameter mm |
Nominal Weight kg/km |
|
| Inner | Outer | ||||
| 1.4mm Conductor, 2.2mm Insulated Wire | |||||
| RS107y-2Y2YB2Y-4C1.4-S(H145) | 4 | 1.3 | 1.2 | 14.0 | 190 |
| RS107y-2Y2YB2Y-7C1.4-S(H145) | 7 | 1.3 | 1.2 | 15.5 | 260 |
| RS107y-2Y2YB2Y-10C1.4-S(H145) | 10 | 1.3 | 1.2 | 18.0 | 340 |
| RS107y-2Y2YB2Y-14C1.4-S(H145) | 14 | 1.3 | 1.2 | 19.0 | 420 |
| RS107y-2Y2YB2Y-20C1.4-S(H145) | 20 | 1.3 | 1.2 | 21.0 | 550 |
| RS107y-2Y2YB2Y-24C1.4-S(H145) | 24 | 1.3 | 1.2 | 22.0 | 630 |
| RS107y-2Y2YB2Y-30C1.4-S(H145) | 30 | 1.3 | 1.2 | 23.0 | 750 |
| RS107y-2Y2YB2Y-40C1.4-S(H145) | 40 | 1.3 | 1.2 | 25.0 | 940 |
| RS107y-2Y2YB2Y-50C1.4-S(H145) | 50 | 1.3 | 1.3 | 28.0 | 1140 |
| RS107y-2Y2YB2Y-60C1.4-S(H145) | 60 | 1.3 | 1.3 | 30.0 | 1320 |
| 1.8mm Conductor, 2.7mm Insulated Wire | |||||
| RS107y-2Y2YB2Y-4C1.8-S(H145) | 4 | 1.3 | 1.2 | 15.5 | 250 |
| RS107y-2Y2YB2Y-7C1.8-S(H145) | 7 | 1.3 | 1.2 | 17.0 | 350 |
| RS107y-2Y2YB2Y-10C1.8-S(H145) | 10 | 1.3 | 1.2 | 20.0 | 470 |
| RS107y-2Y2YB2Y-14C1.8-S(H145) | 14 | 1.3 | 1.2 | 21.0 | 600 |
| RS107y-2Y2YB2Y-20C1.8-S(H145) | 20 | 1.3 | 1.2 | 24.0 | 800 |
| RS107y-2Y2YB2Y-24C1.8-S(H145) | 24 | 1.3 | 1.2 | 26.0 | 910 |
| RS107y-2Y2YB2Y-30C1.8-S(H145) | 30 | 1.3 | 1.2 | 27.0 | 1100 |
| RS107y-2Y2YB2Y-40C1.8-S(H145) | 40 | 1.3 | 1.2 | 30.0 | 1400 |
A-2Y2YB2Y n x1x 1.4 S(H95)
| Cable Code | Number of conductors (n) |
Nominal Sheath Thickness mm |
Nominal Overall Diameter mm |
Nominal Weight kg/km |
|
| Inner | Outer | ||||
| 1.4mm Conductor, 2.7mm Insulated Wire | |||||
| RS108y-2Y2YB2Y-10C1.4-S(H95) | 10 | 1.3 | 1.2 | 18.0 | 390 |
| RS108y-2Y2YB2Y-14C1.4-S(H95) | 14 | 1.3 | 1.2 | 20.0 | 480 |
| RS108y-2Y2YB2Y-20C1.4-S(H95) | 20 | 1.3 | 1.2 | 22.0 | 610 |
| 1.8mm Conductor, 3.4mm Insulated Wire | |||||
| RS108y-2Y2YB2Y-10C1.8-S(H95) | 10 | 1.3 | 1.2 | 21.0 | 550 |
| RS108y-2Y2YB2Y-14C1.8-S(H95) | 14 | 1.3 | 1.2 | 23.0 | 700 |
 |
 |
 |
 |
 |
 |
|
UV Resistant |
Water Resistant |
Rated Voltage |
Laid In Ducts |
Buried in Ciround |
Zero Halogen IEC 60754-1/NF C20-454 EN 50267-2-1 |
