RT/F3 E1/E2/E3 Type Axle Counter Cable



Applications :

  • The cables are designed for transmission of signals up to 90 kHz in axle counter train detection systems.

Standards :

  • RT/E/PS/00031

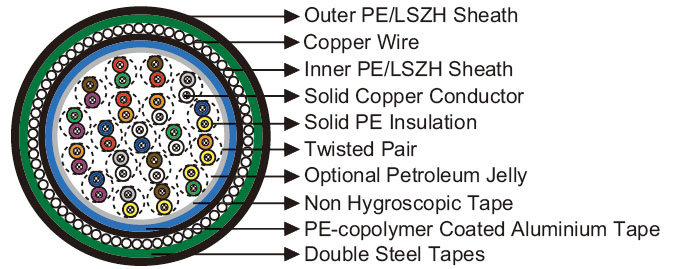

Construction :

  • Conductors : Tinned copper wire, 0.9 or 1.4 mm nominal diameter.
  • Insulation : Solid polyethylene.
  • Cabl ing Element : Two insulated conductors are twisted together to form a pair.
  • Stranding : Pairs are helically stranded in concentric layers.
  • Filling : Cable core interstices are fi lled with a low-permitivity compound. Unfi lled cables option can be offered upon request.
  • Core Wrapping : Plastic tape(s) with overlapping.
  • Moisture Barrier: One laminated sheath made of aluminium tape coated with PE-Copolymer on at least one side is applied with longitudinally overlap.
  • Inner Sheath : Polyethylene or LSZH fi re retardant compound.
  • Electrostatic Shield : One layer of helically applied copper wires.
  • Electromagnetic Shield : Two helically applied steel tapes.
  • Outer Sheath : Polyethylene or LSZH fi re retardant compound. Ruggedised PE sheath compound can be offered upon request.

Type Codes :

  • F1 class : Non LSZH cables.
    F5 class : Unfilled cables
    D type Unarmoured types
    R type : Ruggedised PE sheath
    S type : Steel tape armoured types
    B type : Brass tape armoured types
    E1, E2 & E3 types : 3 different induction protection levels available.

Electrical Characteristics at 20 °C :

  • Nominal Conductor Diameter mm 0.9 1.4
    Nominal Conductor Cross Section mm2 0.63 1.5
    Maximum Conductor Resistance Ω/km 30.0 12.5
    Minimum Insulation Resistance @500 V DC (1min) MΩ.km 5000 5000
    Nominal Conductor Capacitance @800Hz/1000Hz (AC) nF/km 42+3 47+3
    Dielectric Strength, conductor to screen (DC voltage 2mins) V 3000 3000
    Maximum Average Attenuation
        @1.0KHz dB/km 0.73 0.45
        @2.4KHz dB/km 1.10 0.62
        @40KHz dB/km 2.88 1.77
        @90KHz dB/km 3.70 2.41
        @1.024MHz dB/km 11.2 7.45
    Minimum Average Near-end Crosstalk
        @1.0KHz dB/km 60 60
        @2.4KHz dB/km 60 60
        @40KHz dB/km 50 50
        @90KHz dB/km 50 50
        @1.024MHz dB/km 35 35
    Maximum Reduction Factor @100V/km,50Hz
        EMI RF 1 (modest level)   0.65 0.65
        EMI RF 2 (medium level)   0.45 0.45
        EMI RF 3 (high level)   0.20 0.20

Mechanical and Thermal Properties :

  • Minimum Bending Radius : 7.5×OD (unarmoured); 10×OD (armoured).
  • Temperature Range : -30°C to +60°C (during operation); -10°C +60°C (during installation).

Dimensions and Weight :



Cable Code Number
of Pairs
Nominal Sheath Thickness
mm
Nominal Overall
Diameter
mm
Nominal Weight
kg/km
Inner Outer
0.9mm Conductor , 1.8mm Insulated Wire
RS/RT/F3-S/E3-2Y(F)(L)2YDB2Y-2P0.9 2 2.2 2.4 23.4 1300
RS/RT/F3-S/E3-2Y(F)(L)2YDB2Y-10P0.9 10 2.2 2.4 31.8 1650
RS/RT/F3-S/E3-2Y(F)(L)2YDB2Y-12P0.9 12 2.2 2.4 35.0 1760
RS/RT/F3-S/E3-2Y(F)(L)2YDB2Y-19P0.9 19 2.2 2.4 41.4 2275
RS/RT/F3-S/E3-2Y(F)(L)2YDB2Y-24P0.9 24 2.2 2.4 44.0 2450
1.4mm Conductor, 2.7mm Insulated Wire
RS/RT/F3-S/E3-2Y(F)(L)2YDB2Y-2P1.4 2 2.2 2.4 33.6 1480
RS/RT/F3-S/E3-2Y(F)(L)2YDB2Y-10P1.4 10 2.2 2.4 40.2 2200
RS/RT/F3-S/E3-2Y(F)(L)2YDB2Y-12P1.4 12 2.2 2.4 42.2 2325
RS/RT/F3-S/E3-2Y(F)(L)2YDB2Y-19P1.4 19 2.2 2.4 47.5 2975
RS/RT/F3-S/E3-2Y(F)(L)2YDB2Y-24P1.4 24 2.2 2.4 52.5 3150










UV Resistant
Water Resistant
Rated voltage

Impact Resistant
Buried in Ciround
Laid In Ducts





PVC
Sheath
Zero Halogen
IEC 60754-1/NF C20-454
EN 50267-2-1






LSZH
Sheath
Flame Retardant
NF C32-070-2.1(C2)
IEC 60332-1/EN 50265-2-1
Fire Retardant
NF C32-070-2.2(C1)
IEC 60332-3/EN50266
Zero Halogen
IEC 60754-1/NF C20-454
EN 50267-2-1
Low Toxicity


Low Smoke Emission
IEC 61034/NFC20-902
EN 50268/NF C32-073
Low Corrosivity
EN 50267-2-2/NF C32-074
IEC 60754-2/NF C20-453
