TYPE C1 & C2 Railway Signalling Cable
![](../../images/line.jpg)
Applications :
- The cables are designed for railway signalling systems. The cables are suitable for use in d.c. circuits where the nominal voltage to earth does not exceed 1100 volts and installation in ducts.
Standards :
- NR/PS/SIG/00005(formerly RT/E/PS/00005)
![]() |
![]() |

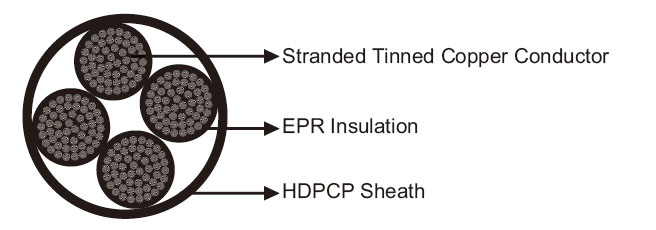

Construction :
- Conductors : Tinned stranded copper, class 5 according to IEC 60228 & BS6360.
- Insulation : EPR Type GP4 to BS7655.
- Core Wrapping : Plastic tape(s) with overlapping.
- Sheath : HDPCP Type RS2 to BS7655.
Electrical Characteristics at 20 °C :
-
Nominal Conductor Cross Section mm² 2.5 Maximum DC Conductor Resistance Ω/km 8.21 Voltage Rating KV 0.65/1.1 Nominal Insulation Thickness mm 1.05
Mechanical and Thermal Properties :
- Minimum Bending Radius : 6xOD (static); 15xOD (dynamic).
- Operating Temperature : -25°C to +85°C (during operation) ; -10°C to +85°C (during installation).
Dimensions and Weight :
Cable Code | No. of cores& Nominal Conductor Cross Sectional Area No.×mm² |
No. & Nominal Diameter of Strands No/mm |
Nominal
Sheath Thickness mm |
Overall
Diameter Min/Max mm |
Nominal
Weight kg/km |
Type C1 | |||||
RS/C1-3G5G-1G2.5 | 1×2.5 | 50/0.25 | 3.8 | 11.2/14.0 | 195 |
Type C2 | |||||
RS/C2-3G5G-2G2.5 | 2×2.5 | 50/0.25 | 3.8 | 14.9/18.8 | 370 |
RS/C2-3G5G-4G2.5 | 4×2.5 | 50/0.25 | 3.8 | 16.4/20.9 | 460 |
RS/C2-3G5G-7G2.5 | 7×2.5 | 50/0.25 | 3.8 | 18.7/23.7 | 610 |
RS/C2-3G5G-10G2.5 | 10×2.5 | 50/0.25 | 3.8 | 22.5/28.6 | 920 |
RS/C2-3G5G-12G2.5 | 12×2.5 | 50/0.25 | 3.8 | 23.2/29.3 | 950 |
RS/C2-3G5G-16G2.5 | 16×2.5 | 50/0.25 | 3.8 | 25.3/32.0 | 1180 |
Routine test voltage: 2.5kV for 5 minute.
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
|
Impact Resistant |
Highly Flexible |
Oil Resistant |
Weather Resistant |
Rated Voltage |
Laid In Ducts |
