CCPSSP-FR0.1 n×4×0.9/1.4
Applications :
- The cables are used as railway cables and can be installed directly into the ground or in ducts.
Standards :
- RENFE E.T. 03.365.051.6

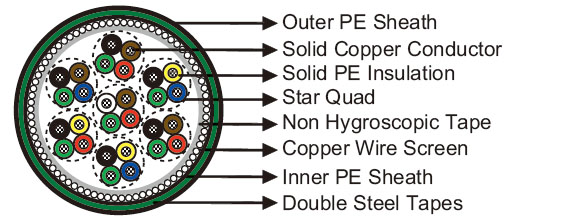

Construction :
- Conductors : Soft annealed solid copper, 0.9/1.4 mm nominal diameter.
- Insulation : PE insulation.
- Cabling Element : Four insulated conductors are twisted together to form a quad.
- Stranding : Quads are helically stranded in concentric layers.
- Core Wrapping : Two or more layers of plastic tape(s) with overlapping.
- Screen : 0.9/1.2/1.4/1.8mm copper wires wrapping with one plastic tape (protection against interference).
- Inner Sheath : PE sheath.
- Armour : Two layers of steel tape (0.8mm thick).
- Outer Sheath : PE sheath.
Electrical Characteristics at 20 °C :
-
Nominal Conductor Diameter mm 0.9 1.4 Maximum Conductor Resistance Ω/km 28.5 11.7 Minimum Insulation Resistance @500 V DC MΩ.km 35000 35000 Mutual Capacitance @800Hz nF/km 41 45 Capacitance Unbalance @800Hz K1 maximum individual value pF/460m 250 250 K9-12 maximum individual value pF/460m 250 250 ea1/2 maximum individual value pF/460m 1200 1200 Attenuation @1KHz dB/km 0.7 0.46 @10KHz dB/km 1.6 0.85 @30KHz dB/km 2.1 1.3 Test Voltage @50Hz 1min Core to Core Veff 2100 2100 Core to Screen Veff 2500 2500 Core to Armouring Veff 2000 2000 Reduction Factor @100V/km 50Hz 0.3 0.3
Mechanical and Thermal Properties :
- Minimum Bending Radius : 10 × OD.
- Temperature Range : -40°C to +60°C (during operation); -10°C +60°C (during installation).
Dimensions and Weight :
Cable Code | Number of Quads |
Nominal Sheath Thickness mm |
Maximum Overall Diameter mm |
Nominal Weight kg/km |
|
Inner | Outer | ||||
0.9mm Conductor, 1.8mm Insulated Wire | |||||
RS/CCPSSP-FR0.1-2YD2YB2Y-1Q0.9 | 1 | 1.5 | 1.6 | 21.2 | 1140 |
RS/CCPSSP-FR0.1-2YD2YB2Y-3Q0.9 | 3 | 1.5 | 1.6 | 24.5 | 1370 |
RS/CCPSSP-FR0.1-2YD2YB2Y-5Q0.9 | 5 | 1.5 | 1.6 | 27.0 | 1610 |
RS/CCPSSP-FR0.1-2YD2YB2Y-7Q0.9 | 7 | 1.5 | 1.6 | 28.4 | 1750 |
RS/CCPSSP-FR0.1-2YD2YB2Y-10Q0.9 | 10 | 1.5 | 1.6 | 32.1 | 2060 |
RS/CCPSSP-FR0.1-2YD2YB2Y-12Q0.9 | 12 | 1.5 | 1.6 | 32.1 | 2130 |
RS/CCPSSP-FR0.1-2YD2YB2Y-14Q0.9 | 14 | 1.6 | 1.8 | 35.3 | 2380 |
RS/CCPSSP-FR0.1-2YD2YB2Y-19Q0.9 | 19 | 1.7 | 1.8 | 38.6 | 2760 |
RS/CCPSSP-FR0.1-2YD2YB2Y-25Q0.9 | 25 | 1.7 | 1.8 | 42.0 | 3150 |
1.4mm Conductor, 2.7mm Insulated Wire | |||||
RS/CCPSSP-FR0.1-2YD2YB2Y-1Q1.4 | 1 | 1.5 | 1.6 | 22.7 | 1280 |
RS/CCPSSP-FR0.1-2YD2YB2Y-3Q1.4 | 3 | 1.5 | 1.6 | 28.0 | 1690 |
RS/CCPSSP-FR0.1-2YD2YB2Y-5Q1.4 | 5 | 1.6 | 1.8 | 32.0 | 2070 |
RS/CCPSSP-FR0.1-2YD2YB2Y-7Q1.4 | 7 | 1.6 | 1.8 | 33.9 | 2320 |
RS/CCPSSP-FR0.1-2YD2YB2Y-10Q1.4 | 10 | 1.6 | 1.8 | 39.2 | 2860 |
RS/CCPSSP-FR0.1-2YD2YB2Y-12Q1.4 | 12 | 1.7 | 1.8 | 39.2 | 2980 |
RS/CCPSSP-FR0.1-2YD2YB2Y-14Q1.4 | 14 | 1.7 | 1.8 | 42.6 | 3340 |
RS/CCPSSP-FR0.1-2YD2YB2Y-19Q1.4 | 19 | 1.8 | 2.0 | 48.5 | 4160 |
UV Resistant |
Anti Induction |
Water Resistant |
Rated Voltage |
Buried in Ciround |
Laid In conduit |
Zero Halogen IEC 60754-1/NF C20-454 EN 50267-2-1 |
