CCPSSP-FR0.3 n×2×0.9/1.4
Applications :
- The cables are used as railway cables and can be installed directly into the ground or in ducts.
Standards :
- RENFE E.T. 03.365.051.6

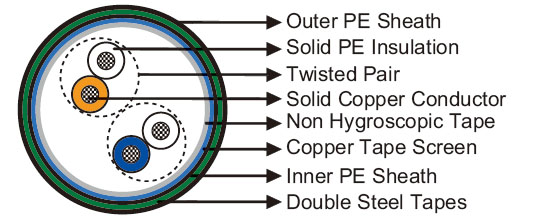

Construction :
- Conductors : Soft annealed solid copper, 1.4 mm nominal diameter.
- Insulation : PE insulation.
- Cabling Element : Two insulated conductors are twisted together to form a pair.
- Stranding : Pairs are helically stranded in concentric layers.
- Core Wrapping : Two or more layers of plastic tape(s) with overlapping.
- Screen : Copper tapes with overlap (protection against interference).
- Inner Sheath : PE sheath.
- Armour : Two layers steel tape (0.8mm thick).
- Outer Sheath : PE sheath.
Electrical Characteristics at 20 °C :
-
Nominal Conductor Diameter mm 0.9 1.4 Maximum Conductor Resistance Ω/km 28.5 11.7 Minimum Insulation Resistance @500 V DC MΩ.km 15000 15000 Mutual Capacitance @1KHz nF/km 58 58 Capacitance Unbalance @1KHz Pair to Pair pF/km 260 260 Pair to Earth pF/km 2625 2625 Test Voltage @50Hz 1min Core to Core Veff 2100 2100 Core to Screen Veff 2500 2500 Reduction Factor @100V/km 50Hz 0.3 0.3
Mechanical and Thermal Properties :
- Minimum Bending Radius : 10 × OD.
- Temperature Range : -40°C to +60°C (during operation); -10°C +60°C (during installation).
Dimensions and Weight :
Cable Code | Number of Pairs |
Nominal Sheath Thickness mm |
Maximum Overall Diameter mm |
Nominal Weight kg/km |
|
Inner | Outer | ||||
0.9mm Conductor, 1.8mm Insulated Wire | |||||
RS/CCPSSP-FR0.3-2Y(K)2YB2Y-6P0.9 | 6 | 1.5 | 1.6 | 19.2 | 720 |
RS/CCPSSP-FR0.3-2Y(K)2YB2Y-10P0.9 | 10 | 1.5 | 1.6 | 24.0 | 1011 |
RS/CCPSSP-FR0.3-2Y(K)2YB2Y-12P0.9 | 12 | 1.5 | 1.6 | 24.5 | 1067 |
1.4mm Conductor,2.7mm Insulated Wire | |||||
RS/CCPSSP-FR0.3-2Y(K)2YB2Y-2P1.4 | 2 | 1.5 | 1.6 | 22.5 | 904 |
RS/CCPSSP-FR0.3-2Y(K)2YB2Y-6P1.4 | 6 | 1.6 | 1.8 | 25.5 | 1155 |
RS/CCPSSP-FR0.3-2Y(K)2YB2Y-7P1.4 | 7 | 1.6 | 1.8 | 26.9 | 1258 |
RS/CCPSSP-FR0.3-2Y(K)2YB2Y-10P1.4 | 10 | 1.7 | 1.8 | 30.9 | 1542 |
RS/CCPSSP-FR0.3-2Y(K)2YB2Y-11P1.4 | 11 | 1.7 | 1.8 | 30.9 | 1576 |
RS/CCPSSP-FR0.3-2Y(K)2YB2Y-14P1.4 | 14 | 1.7 | 1.8 | 37.1 | 1827 |
RS/CCPSSP-FR0.3-2Y(K)2YB2Y-20P1.4 | 20 | 1.8 | 2.0 | 37.9 | 2214 |
UV Resistant |
Anti Induction |
Water Resistant |
Rated Voltage |
Buried in Ciround |
Laid In conduit |
Zero Halogen IEC 60754-1/NF C20-454 EN 50267-2-1 |
