CCPSSP-R-FR0.1



Applications :

  • The cables are used as railway cables and can be installed directly into the ground or in ducts.

Standards :

  • RENFE E.T. 03.365.051.6

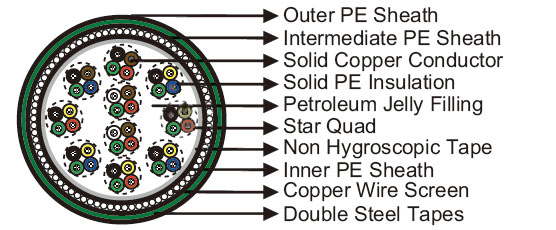

Construction :

  • Conductors : Soft annealed solid copper, 0.9 mm nominal diameter.
  • Insulation : PE insulation.
  • Cabling Element : Four insulated conductors are twisted together to form a quad.
  • Stranding : Quads are helically stranded in concentric layers.
  • Filling : Petroleum jelly fi lling.
  • Core Wrapping : At least one layer of water swellable material with overlapping.
  • Inner Sheath : PE sheath.
  • Screen : 1.4/1.8mm copper wires wrapping with one plastic tape (protection against interference).
  • Intermediate Sheath : PE sheath.
  • Armour : Two layers of steel tape (0.8mm thick).
  • Outer Sheath : PE sheath.

Electrical Characteristics at 20 °C :

  • Nominal Conductor Diameter mm 0.9
    Maximum Conductor Resistance Ω/km 28.5
    Minimum Insulation Resistance @500 V DC MΩ.km 25000
    Mutual Capacitance @800Hz nF/km 41
    Capacitance Unbalance @800Hz
        K1 maximum individual value pF/460m 250
        K9-12 maximum individual value pF/460m 250
        ea1/2 maximum individual value pF/460m 1200
    Attenuation
        @1KHz dB/km 0.7
        @10KHz dB/km 1.6
        @30KHz dB/km 2.1
    Test Voltage @50Hz 1min
        Core to Core Veff 2100
        Core to Screen Veff 2500
        Core to Armouring Veff 2000
    Reduction Factor @100V/km 50Hz 0.1

Mechanical and Thermal Properties :

  • Minimum Bending Radius : 10 × OD.
  • Temperature Range : -30°C to +70°C (during operation); -5°C +50°C (during installation).

Dimensions and Weight :



Cable Code Number of
Quads
Nominal Sheath Thickness
mm
Maximum Overall
Diameter
mm
Nominal Weight
kg/km
Inner Inter. Outer
0.9mm Conductor, 1.8mm Insulated Wire
RS/CCPSSP-R-FR0.1-2Y(F)2YD2YB2Y-1Q0.9 1 1.5 1.5 1.6 23.7 1300
RS/CCPSSP-R-FR0.1-2Y(F)2YD2YB2Y-3Q0.9 3 1.5 1.5 1.6 27.7 1648
RS/CCPSSP-R-FR0.1-2Y(F)2YD2YB2Y-5Q0.9 5 1.5 1.5 1.6 31.5 1984
RS/CCPSSP-R-FR0.1-2Y(F)2YD2YB2Y-25Q0.9 25 1.7 1.7 1.8 51.3 4166





UV Resistant
Anti Induction
Water Resistant
Rated Voltage
Buried in Ciround
Laid In conduit
Zero Halogen
IEC 60754-1/NF C20-454
EN 50267-2-1
