CCTSST-FR0.1 n×4×0.9/1.4



Applications :

  • The cables are used as railway cables and can be installed directly into the ground or in ducts.

Standards :

  • RENFE E.T. 03.365.051.6




Construction :

  • Conductors : Soft annealed solid copper, 0.9/1.4 mm nominal diameter.
  • Insulation : PE insulation.
  • Cabling Element : Four insulated conductors are twisted together to form a quad.

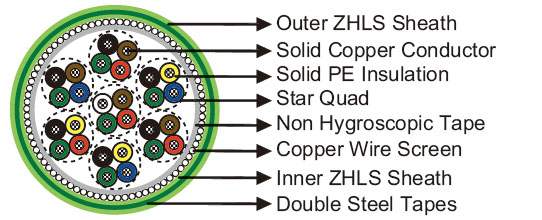

  • Stranding : Quads are helically stranded in concentric layers.
  • Core Wrapping : Two or more layers of plastic tape(s) with overlapping.
  • Screen : 0.9/1.2/1.4/1.8mm copper wires wrapping with one plastic tape (protection against interference).
  • Inner Sheath : LSZH sheath, coloured green.
  • Armour : Two layers of steel tape (0.8mm thick).
  • Outer Sheath : LSZH sheath, coloured green.

Electrical Characteristics at 20 °C :

  • Nominal Conductor Diameter mm 0.9 1.4
    Maximum Conductor Resistance Ω/km 28.5 11.7
    Minimum Insulation Resistance @500 V DC MΩ.km 35000 35000
    Mutual Capacitance @800Hz nF/km 41 45
    Capacitance Unbalance @800Hz
        K1 maximum individual value pF/460m 250 250
        K9-12 maximum individual value pF/460m 250 250
        ea1/2 maximum individual value pF/460m 1200 1200
    Attenuation
        @1KHz dB/km 0.7 0.46
        @10KHz dB/km 1.6 0.85
        @30KHz dB/km 2.1 1.3
    Test Voltage @50Hz 1min
        Core to Core Veff 2100 2100
        Core to Screen Veff 2500 2500
        Core to Armouring Veff 2000 2000
    Reduction Factor @100V/km 50Hz 0.1 0.1

Mechanical and Thermal Properties :

  • Minimum Bending Radius : 10 × OD.
  • Temperature Range : -40°C to +60°C (during operation); -10°C +60°C (during installation).

Dimensions and Weight :



Cable Code Number of
Quads
Nominal Sheath Thickness
mm
Maximum Overall
Diameter
mm
Nominal
Weight
kg/km
Inner Outer
0.9mm Conductor, 1.8mm Insulated Wire
RS/CCTSST-FR0.1-2YDHBH-1Q0.9 1 1.5 1.6 20.6 1170
RS/CCTSST-FR0.1-2YDHBH-3Q0.9 3 1.5 1.6 24.7 1480
RS/CCTSST-FR0.1-2YDHBH-5Q0.9 5 1.5 1.6 27.3 1740
RS/CCTSST-FR0.1-2YDHBH-7Q0.9 7 1.5 1.6 29.6 1950
RS/CCTSST-FR0.1-2YDHBH-10Q0.9 10 1.5 1.6 33.5 2320
RS/CCTSST-FR0.1-2YDHBH-25Q0.9 25 1.7 1.8 44.2 3590
1.4mm Conductor, 2.7mm Insulated Wire
RS/CCTSST-FR0.1-2YDHBH-10Q1.4 10 1.6 1.8 39.2 3140





UV Resistant
Anti Induction
Water Resistant
Rated Voltage
Buried in Ciround
Laid In conduit
Low Toxicity



Flame Retardant
NF C32-070-2.1(C2)
IEC 60332-1/EN 50265-2-1
Fire Retardant
NF C32-070-2.2(C1)
IEC 60332-3/EN50266
Zero Halogen
IEC 60754-1/NF C20-454
EN 50267-2-1
Low Smoke Emission
IEC 61034/NFC20-902
EN 50268/NF C32-073
Low Corrosivity
EN 50267-2-2/NF C32-074
IEC 60754-2/NF C20-453
