CCTSST-FR0.3 nx1x1.4
Applications :
- The cables are used as railway cables and can be installed directly into the ground or in ducts.
Standards :
- RENFE E.T. 03.365.051.6

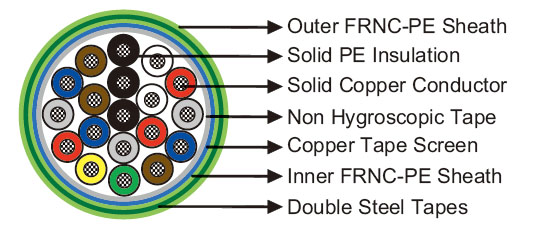

Construction :
- Conductors : Soft annealed solid copper, 1.4 mm nominal diameter.
- Insulation : PE Insulation.
- Stranding : Cores are helically stranded in concentric layers.
- Core Wrapping : Two or more layers of plastic tape(s) with overlapping.
- Screen : Copper tapes with overlap (protection against interference).
- Inner Sheath : FRNC-PE sheath, coloured green.
- Armour : Two layers of steel tape (0.8mm thick).
- Outer Sheath : FRNC-PE sheath, coloured green.
- *FRNC: Flame retardant, non corrosive.
Electrical Characteristics at 20 °C :
-
Nominal Conductor Diameter mm 1.4 Maximum Conductor Resistance Ω/km 11.7 Minimum Insulation Resistance @500 V DC MΩ.km 35000 Resistance Unbalance % 2 Test Voltage @50Hz 1min Core to Core Veff 2100 Core to Screen Veff 2500 Reduction Factor @100V/km 50Hz 0.3
Mechanical and Thermal Properties :
- Minimum Bending Radius : 10 x OD.
- Operating Temperature : -40°C to +60°C (during operation); -10°C +60°C (during installation).
Dimensions and Weight :
Cable Code | Number of Cores |
Nominal Sheath Thickness mm |
Maximum Overall Diameter mm |
Nominal Weight kg/km |
|
Inner | Outer | ||||
1.4mm Conductor, 2.6mm Insulated Wire | |||||
RS/CCTSST-FR0.3-2Y(K)HBH-4C1.4 | 4 | 1.5 | 1.6 | 18.0 | 705 |
RS/CCTSST-FR0.3-2Y(K)HBH-19C1.4 | 19 | 1.6 | 1.8 | 26.1 | 1362 |
RS/CCTSST-FR0.3-2Y(K)HBH-27C1.4 | 27 | 1.6 | 1.8 | 29.2 | 1648 |
RS/CCTSST-FR0.3-2Y(K)HBH-48C1.4 | 48 | 1.7 | 1.8 | 36.7 | 2348 |
UV Resistant |
Water Resistant |
Rated Voltage |
Anti Induction |
Buried in Ciround |
Laid In Ducts |
Low Toxicity |
Flame Retardant NF C32-070-2.1(C2) IEC 60332-1/EN 50265-2-1 |
Fire Retardant NF C32-070-2.2(C1) IEC 60332-3/EN50266 |
Zero Halogen IEC 60754-1/NF C20-454 EN 50267-2-1 |
Low Smoke Emission IEC 61034/NFC20-902 EN 50268/NF C32-073 |
Low Corrosivity EN 50267-2-2/NF C32-074 IEC 60754-2/NF C20-453 |
