Digicode 30KHz Indoor Signalling Cables



Applications :

  • The cables are designed for transmission of track circuit digicode signals up to 30 kHz in electrifi ed lines.

Standards :

  • EN 50266-2-4 & IEC 60332-3(Fire performance)
  • EN 50268-2(Smoke density)
  • EN 50267-2-1(Halogen content)
  • EN 50267-2-2(Gases acidity)
  • EN 50265-2-1, IEC 60332-1, NF
  • C 32070 Cat C2 compliant (for PVC sheathed cables)

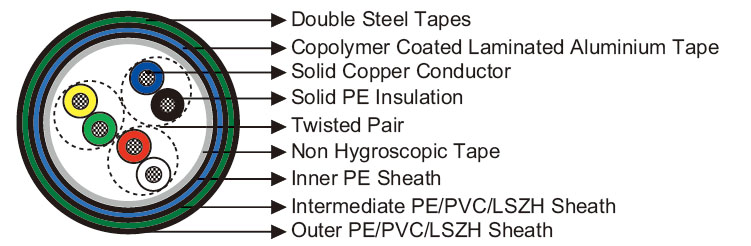

Construction :

  • Conductors : Solid Annealed copper, 1.4 mm nominal diameter (0.6 mm for the auxiliary pair).
  • Insulation : Polyethylene.
  • Cabling Element : Two insulated conductors are twisted together to form a pair.
  • Stranding : Pairs are helically stranded to get the cable core.
  • Core Wrapping : Plastic tape(s) with overlapping.
  • Inner Sheath : Low density polyethylene.
  • Moisture Barrier : Copolymer coated laminated aluminium tape.
  • Intermediate Sheath : LSZH fi re retardant compound. PE or PVC option can be offered upon request.
  • Mechanical Protection : Two helically applied steel tapes.
  • Outer Sheath : LSZH fi re retardant compound. PE or PVC option can be offered upon request.

Electrical Characteristics at 20 °C :

  • Nominal Conductor Diameter mm 1.4
    Maximum DC Conductor Resistance Ω/km 12.1
    Maximum Resistance Unbalance % 3
    Minimum Insulation Resistance @500 V DC (1min) MΩ.km 5000
    Dielectric Strength (DC voltage 1 min)
        Conductor to Conductor V 1000
        Conductor to Screen V 3000
    Minimum Spark Test On Outer Sheath (AC voltage) V 5000
    Maximum Mutual Capacitance (Data pairs) nF/km 45
    Nominal Mutual Capacitance (Auxiliary pair) nF/km 50
    Maximum Capacitance Unbalance
    Pair to Pair nF/500m 400
    Pair to Ground nF/500m 1500
    Maximum Characteristic Pair Attenuation
        @2.1KHz dB/km 0.64
        @4.1KHz dB/km 0.76
        @9.5KHz dB/km 1.05
        @20.7KHz dB/km 1.28
    Minimum Near End Crosstalk Attenuation (NEXT)
        @4.1KHz dB/km 54
        @20.7KHz dB/km 42
    Minimum Far End Crosstalk Attenuation (FEXT)
        @4.1KHz dB/km 59
        @20.7KHz dB/km 48
    Minimum Unbalance Attenuation dB 40
    Maximum Rated Voltage, between pair conductors V rms 220
    Maximum Rated Current A rms 1

Mechanical and Thermal Properties :

  • Minimum Bending Radius : 8×OD (static); 16×OD (dynamic).
  • Temperature Range : -40°C to +60°C (during operation); -20°C +50°C (during installation).

Dimensions and Weight :



Cable Code Number of
Pairs
Nominal Sheath Thickness
mm
Nominal Overall
Diameter
mm
Nominal Weight
kg/km
Inner Interm. Outer
RS/DIG-2Y2Y(L)HBH-1P1.4 1* 0.7 1.3 1.5 17.9 428
RS/DIG-2Y2Y(L)HBH-2P1.4 2* 0.7 1.3 1.5 19.2 497
RS/DIG-2Y2Y(L)HBH-3P1.4 3 0.7 1.3 1.5 20.2 562

  *Plus one auxiliary pair with 0.6mm conductors.






Mineral Oil Resistant
Acid&Alkaline Resistant

Laid In conduit
Low Toxicity



Flame Retardant
NF C32-070-2.1(C2)
IEC 60332-1/EN 50265-2-1
Fire Retardant
NF C32-070-2.2(C1)
IEC 60332-3/EN50266
Zero Halogen
IEC 60754-1/NF C20-454
EN 50267-2-1
Low Smoke Emission
IEC 61034/NFC20-902
EN 50268/NF C32-073
Low Corrosivity
EN 50267-2-2/NF C32-074
IEC 60754-2/NF C20-453
