EUROBALISE BGA



Applications :

  • The cables are used as balise cables for ERTMS (European Rail Traffic Management System) railway networks. The cables are armoured and can provide low reduction factor.

Standards :

  • CEI 20-11
  • CEI 20-14
  • CEI 20-29
  • CEI 20-34
  • CEI 46-4
  • CEI 103-10




Construction :

  • Conductors : Solid annealed copper, 1.6 mm nominal diameter.
  • Insulation : Solid polyethylene.
  • Stranding : Conductors will be stranded with dielectric fi llers in order to get a circular core shape.
  • Core Wrapping : Plastic tape (s) with overlapping.
  • Inner Sheath : Low density polyethylene.

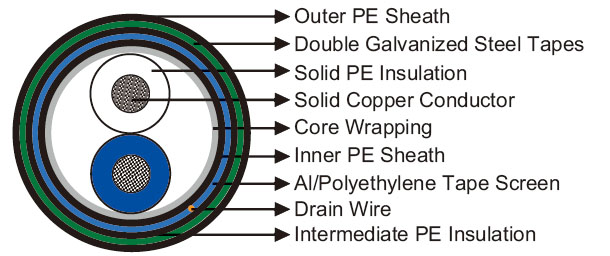

  • Screen : Aluminium/polyethylene tape longitudinally applied and overlapped.
  • Drain Wire : Tinned copper drain wire.
  • Intermediate Sheath : Low density polyethylene.
  • Armour : Two galvanized steel tapes.
  • Outer Sheath : Low density polyethylene.

Electrical Characteristics at 20 °C :

  • Nominal Conductor Diameter mm 1.6
    Maximum Conductor Resistance (DC) Ω/km 21.5
    Mutual Capacitance Ω/km 8.21
    Nominal Characteristic Impedance @8.9 KHz Ω 130
    Nominal Characteristic Impedance @560 KHz Ω 110
    Maximum Attenuation @560 KHz dB/km 3.8
    Insulation Resistance MΩ.km 10000
    Minimum Dielectric Strength core to screen (DC) V 1000
    Minimum Dielectric Strength core to core (DC) V 3000
    Reduction Factor @100V/km 50Hz 0.6

Mechanical and Thermal Properties :

  • Minimum Bending Radius : 8×OD (static); 16×OD (dynamic).
  • Temperature Range : -30°C to +70°C (during operation); -20°C +50°C (during installation).

Dimensions and Weight :



Cable Code Number of Pairs Nominal Sheath Thickness
mm
Nominal Overall
Diameter
mm
Nominal Weight
kg/km
Inner Inter. Outer
1.6mm Conductor, 3.4mm Insulated Wire
RS/BGA-2Y2Y(L)2YB2Y-1P1.6 1 1.0 0.8 1.6 16 334







Anti Induction
UV Resistant
Water Resistant
Mineral Oil Resistant
Rated Voltage
Laid In Ducts
Zero Halogen
IEC 60754-1/NF C20-454
EN 50267-2-1
