EUROBALISE SIF



Applications :

  • The cables are used in Eurobalise (ERTMS) speed control circuits. The cables are laid in trays alongside railway lines and connect an “Eurobalise” located between the rails to the Eurocoder (LEU) located in a control centre.

Standards :

  • ALSTOM 5 326 203
  • SNCF CT 446

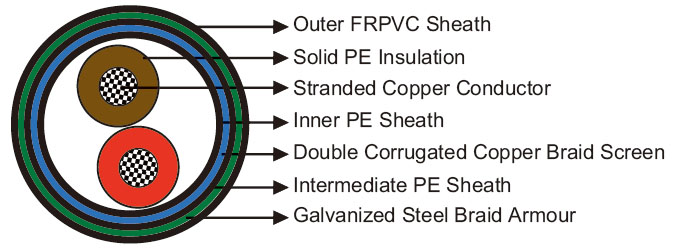

Construction :

  • Conductors : Class 2 stranded copper.
  • Insulation : Solid polyethylene.
  • Inner sheath : Low density polyethylene.
  • Screen : Two corrugated copper braid shields.
  • Intermediate Sheath : Low density polyethylene.
  • Armour : Galvanized steel braid armour.
  • Outer Sheath : Flame Retardant PVC.

Electrical Characteristics at 20 °C :

  • Nominal Conductor Diameter mm 1.04
    Nominal Cross Section Area mm2 0.85
    Maximum Conductor Resistance (DC) Ω/km 22
    Characteristic Impedance @100KHz-1MHz Ω 95
    Maximum Attenuation
        @560 kHz dB/km 7.5
        @1MHz dB/km 10
    Nominal Insulated Thickness mm 0.63

Mechanical and Thermal Properties :

  • Minimum Bending Radius : 8×OD (static); 16×OD (dynamic).
  • Temperature Range : -30°C to +70°C (during operation); -20°C +50°C (during installation).

Dimensions and Weight :



Cable Code No. of cores& Nominal
Conductor Cross
Sectional Area
No.×mm²
No. & Nominal
Diameter of
Strands
No/mm
Nominal Sheath
Thickness
mm
Nominal Overall
Diameter
mm
Nominal
Weight
kg/km
Inner Inter. Outer
RS/SIF-2Y2YC2Y(SWB)Y-2C0.85S 2 x 0.85 7/0.386 1.0 0.5 1.6 15 301







Rated voltage
Ozone Resistant
Fuel Oil Resistant
Mineral Oil Resistant
Laid In Ducts/ Channel
Flame Retardant
NF C32-070-2.1(C2)
IEC 60332-1/EN 50265-2-1
