Home >> Product >> Railway Cable >> Signalling & Control CableK23 LSZH Subway Signalling Cables for Metro/Local Trains/Tramlines
Applications :
- The cables are designed for remote control and teletransmission in underground railway networks. The cables can be laid in channel, cable tray, or on hook supports, along suburban railway lines electrifi ed at maximum 1500V DC.
Standards :
- NF F 55-623
 |
 |

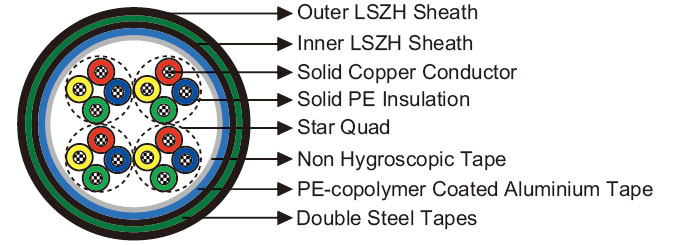

Construction :
- Conductors : Copper wire, 0.6, 0.8, 1.0 or 1.2 mm nominal diameter.
- Insulation : Solid polyethylene.
- Cabling Element : Four conductors are twisted to form a star quad. For 1 & 4 pair cables,conductors shall be twisted in pairs
- Stranding : Quads are stranded in helically laid concentric layers or units to form the cable core.
- Core wrapping : Plastic tape(s) with overlapping.
- Moisture barrier : One laminated sheath made of aluminium tape coated with PE-Copolymer on at least one side is applied with longitudinally overlap.
- Inner sheath : LSZH fire retardant compound.
- Armour : Two helically applied steel tapes.
- Outer sheath : LSZH fire retardant compound.
Electrical Characteristics at 20 °C :
-
Nominal Conductor Diameter mm 0.6 0.8 1.0 1.2 Maximum Average DC Conductor Resistance Ω/km 64.0 36.0 23.0 16.0 Minimum Insulation Resistance @500 V DC (3min) MΩ.km 5000 5000 5000 5000 Maximum Mutual Capacitance @1000Hz (AC) nF/km 57.5 57.5 57.5 57.5 Maximum Capacitance Unbalance @800Hz K1 (side to side) pF/500m 435 435 435 435 K9-12 (quad to quad) pF/500m 220 220 220 220 Operating Voltages V 200 400 500 750 Maximum Permissible Current A 0.35 0.63 1.0 1.4 Dielectric Strength (DC voltage 1min) Conductor to Conductor V 1500 2000 3000 3000 Conductor to Screen V 1500 1500 1500 1500
Mechanical and Thermal Properties :
- Minimum Bending Radius : 8xOD (static); 16xOD (dynamic).
- Temperature Range : -40°C to +60°C (during operation); -20°C +50°C (during installation).
Dimensions and Weight :
| Cable Code | Number of Pairs |
Spare pairs |
Minimum Sheath Thickness mm |
Maximum Overall Diameter mm |
Nominal Weight kg/km |
|
| Inner | Outer | |||||
| 0.6mm Conductor, 0.96mm Insulated Wire (6/10) | ||||||
| RS/K23-2Y(L)HBH-2P0.6 | 2 | - | 1.0 | 1.0 | 10.5 | 130 |
| RS/K23-2Y(L)HBH-4P0.6 | 4 | - | 1.0 | 1.0 | 14.0 | 171 |
| RS/K23-2Y(L)HBH-8P0.6 | 8 | - | 1.0 | 1.0 | 16.5 | 215 |
| RS/K23-2Y(L)HBH-14P0.6 | 14 | - | 1.0 | 1.2 | 17.5 | 290 |
| RS/K23-2Y(L)HBH-20P0.6 | 20 | - | 1.0 | 1.2 | 18.5 | 350 |
| RS/K23-2Y(L)HBH-28P0.6 | 28 | - | 1.0 | 1.4 | 21.0 | 441 |
| RS/K23-2Y(L)HBH-38P0.6 | 38 | - | 1.0 | 1.4 | 21.5 | 533 |
| RS/K23-2Y(L)HBH-56P0.6 | 56 | - | 1.0 | 1.4 | 23.0 | 700 |
| RS/K23-2Y(L)HBH-84P0.6 | 84 | - | 1.0 | 1.6 | 28.0 | 970 |
| RS/K23-2Y(L)HBH-112P0.6 | 112 | - | 1.0 | 1.6 | 30.5 | 1190 |
| RS/K23-2Y(L)HBH-168P0.6 | 168 | 2 | 1.0 | 1.8 | 38.0 | 1847 |
| RS/K23-2Y(L)HBH-224P0.6 | 224 | 2 | 1.0 | 2.0 | 44.0 | 2675 |
| RS/K23-2Y(L)HBH-280P0.6 | 280 | 2 | 1.0 | 2.0 | 51.0 | 3185 |
| RS/K23-2Y(L)HBH-336P0.6 | 336 | 4 | 1.0 | 2.0 | 57.0 | 3680 |
| RS/K23-2Y(L)HBH-392P0.6 | 392 | 4 | 1.0 | 2.0 | 58.5 | 4168 |
| RS/K23-2Y(L)HBH-448P0.6 | 448 | 4 | 1.0 | 2.2 | 67.0 | 4647 |
| RS/K23-2Y(L)HBH-784P0.6 | 784 | 4 | 1.0 | 2.2 | 90.5 | 7406 |
| RS/K23-2Y(L)HBH-896P0.6 | 896 | 6 | 1.0 | 2.2 | 102.5 | 8315 |
| 0.8mm Conductor, 1.27 mm Insulated Wire (8/10) | ||||||
| RS/K23-2Y(L)HBH-2P0.8 | 2 | - | 1.0 | 1.0 | 11.5 | 155 |
| RS/K23-2Y(L)HBH-4P0.8 | 4 | - | 1.0 | 1.0 | 15.5 | 216 |
| RS/K23-2Y(L)HBH-8P0.8 | 8 | - | 1.0 | 1.2 | 17.5 | 298 |
| RS/K23-2Y(L)HBH-14P0.8 | 14 | - | 1.0 | 1.4 | 20.5 | 412 |
| RS/K23-2Y(L)HBH-20P0.8 | 20 | - | 1.0 | 1.4 | 23.0 | 512 |
| RS/K23-2Y(L)HBH-28P0.8 | 28 | - | 1.0 | 1.4 | 24.5 | 637 |
| RS/K23-2Y(L)HBH-38P0.8 | 38 | - | 1.0 | 1.6 | 26.5 | 805 |
| RS/K23-2Y(L)HBH-56P0.8 | 56 | - | 1.0 | 1.6 | 32.0 | 1096 |
| RS/K23-2Y(L)HBH-84P0.8 | 84 | - | 1.0 | 1.8 | 39.0 | 1504 |
| RS/K23-2Y(L)HBH-112P0.8 | 112 | - | 1.0 | 1.8 | 40.5 | 1880 |
| 1.0mm Conductor, 1.8mm Insulated Wire (10/10) | ||||||
| RS/K23-2Y(L)HBH-2P1 | 2 | - | 1.0 | 1.0 | 12.0 | 195 |
| RS/K23-2Y(L)HBH-4P1 | 4 | - | 1.0 | 1.2 | 17.5 | 298 |
| RS/K23-2Y(L)HBH-8P1 | 8 | - | 1.0 | 1.4 | 20.5 | 431 |
| RS/K23-2Y(L)HBH-14P1 | 14 | - | 1.0 | 1.4 | 23.5 | 587 |
| RS/K23-2Y(L)HBH-20P1 | 20 | - | 1.0 | 1.6 | 25.0 | 762 |
| RS/K23-2Y(L)HBH-28P1 | 28 | - | 1.0 | 1.6 | 29.0 | 981 |
| RS/K23-2Y(L)HBH-38P1 | 38 | - | 1.0 | 1.6 | 31.5 | 1243 |
| RS/K23-2Y(L)HBH-56P1 | 56 | - | 1.0 | 1.8 | 38.5 | 1683 |
| RS/K23-2Y(L)HBH-84P1 | 84 | - | 1.0 | 2.0 | 46.5 | 2340 |
| RS/K23-2Y(L)HBH-112P1 | 112 | - | 1.0 | 2.0 | 51.5 | 2944 |
| 1.2mm Conductor, 2.0mm Insulated Wire (12/10) | ||||||
| RS/K23-2Y(L)HBH-1P1.2 | 1 | - | 1.0 | 1.2 | 14.0 | 188 |
| RS/K23-2Y(L)HBH-2P1.2 | 2 | - | 1.0 | 1.2 | 14.5 | 230 |
| RS/K23-2Y(L)HBH-4P1.2 | 4 | - | 1.0 | 1.4 | 20.0 | 357 |
| RS/K23-2Y(L)HBH-8P1.2 | 8 | - | 1.0 | 1.4 | 24.0 | 509 |
| RS/K23-2Y(L)HBH-14P1.2 | 14 | - | 1.0 | 1.4 | 25.0 | 710 |
| RS/K23-2Y(L)HBH-20P1.2 | 20 | - | 1.0 | 1.6 | 29.0 | 950 |
| RS/K23-2Y(L)HBH-28P1.2 | 28 | - | 1.0 | 1.6 | 31.5 | 1213 |
 |
 |
|
 |
 |
|
Impact Resistant |
Mineral Oil Resistant |
Acid&Alkaline Resistant |
Laid In conduit |
Low Toxicity |
 |
 |
 |
|
|
Flame Retardant NF C32-070-2.1(C2) IEC 60332-1/EN 50265-2-1 |
Fire Retardant NF C32-070-2.2(C1) IEC 60332-3/EN50266 |
Zero Halogen IEC 60754-1/NF C20-454 EN 50267-2-1 |
Low Smoke Emission IEC 61034/NFC20-902 EN 50268/NF C32-073 |
Low Corrosivity EN 50267-2-2/NF C32-074 IEC 60754-2/NF C20-453 |
