SCG Local Control Cables
Applications :
- The cables are designed as local control or power supply cables for trackside and between the rails equipments inside the equipment shelter.
Standards :
- SNCF CT 466

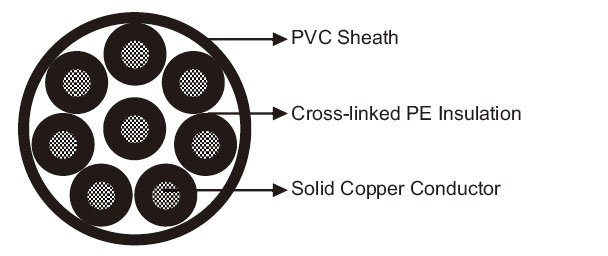

Construction :
- Conductors : Class 1 tinned solid copper.
- Insulation ::Cross-linked black polyethylene (XLPE) insulation.
- Sheath : PVC sheath, coloured black.
Electrical Characteristics at 20 °C :
-
No of Strands/ Strand Diameter No/mm 1.78 2.76 Nominal Cross Section Area mm2 2.5 6 Maximum Conductor Resistance (DC) Ω/km 7.56 3.11 Operating Voltage V 750
Mechanical and Thermal Properties :
- Minimum Bending Radius : 5xOD (static); 10xOD (dynamic).
- Operating Temperature : -20°C to +90°C.
Dimensions and Weight :
Cable Code | Number of Cores | Nominal Sheath Thickness mm | Nominal Overall Diameter mm | Nominal Weight kg/km |
1.78mm Conductor, 4mm Insulated Wire | ||||
RS/SCG-075-2XY-2G2.5 | 2 | 3.0 | 14 | 227 |
RS/SCG-075-2XY-4G2.5 | 4 | 3.2 | 17 | 336 |
RS/SCG-075-2XY-6G2.5 | 6 | 3.7 | 19.5 | 475 |
RS/SCG-075-2XY-8G2.5 | 8 | 3.9 | 21 | 542 |
2.76mm Conductor, 5.4mm Insulated Wire | ||||
RS/SCG-075-2XY-2G6 | 2 | 3.6 | 18 | 384 |
RS/SCG-075-2XY-4G6 | 4 | 3.7 | 20.5 | 550 |
RS/SCG-075-2XY-6G6 | 6 | 3.9 | 23.5 | 780 |
RS/SCG-075-2XY-8G6 | 8 | 3.1 | 26 | 940 |
Rated voltage |
Laid In Cable Tray |
Flame Retardant NF C32-070-2.1(C2) IEC 60332-1/EN 50265-2-1 |
