ZPFU & ZPFU-SH Main & Local Signalling Cables



Applications :

  • ZPFU & ZPFU-SH Main & Local Signalling Cables (Ordinary Non-Electrified or DC Electrified Lines).
  • The cables are designed for the main signalling circuits of 1500V DC electrifi ed lines.

Standards :

  • SNCF CT 445
  • NF F 55-698

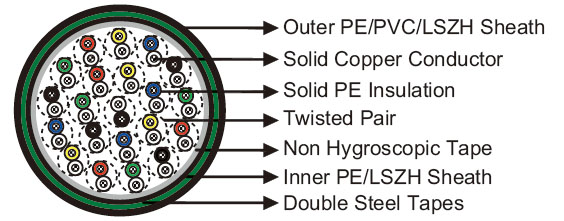

Construction :

  • Conductors : Solid annealed copper, 1.0mm sq nominal cross section area.
  • Insulation : Solid polyethylene.
  • Cabling Element : Two conductors are twisted to form a pair.
  • Stranding : Pairs are helically stranded to form the cable core.
  • Core Wrapping : Plastic tape(s) with overlapping.
  • Inner Sheath : PE. LSZH FR option can be offered upon request to NF C 32 070.2.2 (C1).
  • Mechanical Protection : Two helically applied steel tapes (0.15, 0.2/0.5mm, depending on pair count).
  • Outer Sheath : PE/PVC. LSZH FR option can be offered upon request to NF C 32 070.2.2 (C1).
  • Remarks : ZPAU: PE/PVC Sheath; ZPFU-SH: LSZH Sheath.

Electrical Characteristics at 20 °C :

  • Nominal Conductor Diameter mm 1.13 1.38
    Nominal Cross Section Area mm2 1.0 1.5
    Maximum Conductor Resistance (DC) Ω/km 18.1 12.31
    Minimum Insulation Resistance @500 V DC (3mins) MΩ.km 5000 5000
    Maximum Mutual Capacitance @1000Hz (AC) nF/km 55 55
    Maximum Capacitance Unbalance @1000Hz pF/500 m 400 400
    Attenuation @45KHz dB/km 2.5 2.5
    Characteristic Impedance @45KHz Ω 120 120
    Dielectric Strength, conductor to conductor (DC voltage 3secs) V 4500 4500
    Operating Voltage (AC/DC) V 450/750 450/750

Mechanical and Thermal Properties :

  • Minimum Bending Radius : 8xOD (static); 16xOD (dynamic).
  • Temperature Range : -40°C to +70°C (during operation); -20°C +50°C (during installation).

Dimensions and Weight :



Cable Code No. of
Pairs
Nominal Sheath Thickness
mm
Nominal Overall
Diameter
mm
Nominal Weight
kg/km
Armour Thickness
mm
Inner Outer
1.13mm Conductor, 2.3 Insulated Wire
RS/ZPFU-2Y2YB2Y-1P1S 1 1.0 1.5 11.7 207 0.15
RS/ZPFU-2Y2YB2Y-2P1S 2 1.0 1.5 12.9 257 0.2
RS/ZPFU-2Y2YB2Y-4P1S 4 1.0 1.6 16.8 509 0.2
RS/ZPFU-2Y2YB2Y-7P1S 7 1.0 1.7 19.0 653 0.5
RS/ZPFU-2Y2YB2Y-14P1S 14 1.2 1.8 24.1 1011 0.5
RS/ZPFU-2Y2YB2Y-21P1S 21 1.2 2.0 27.8 1304 0.5
RS/ZPFU-2Y2YB2Y-28P1S 28 1.2 2.2 31.0 1594 0.5
RS/ZPFU-2Y2YB2Y-56P1S 56 1.3 2.5 40.5 2630 0.5






UV Resistant
Mineral Oil Resistant
Rated voltage

Buried in Ciround
Laid In Ducts





PE
Sheath
Zero Halogen
IEC 60754-1/NF C20-454
EN 50267-2-1

PVC
Sheath
Flame Retardant
NF C32-070-2.1(C2)
IEC 60332-1/EN 50265-2-1





LSZH
Sheath
Flame Retardant
NF C32-070-2.1(C2)
IEC 60332-1/EN 50265-2-1
Fire Retardant
NF C32-070-2.2(C1)
IEC 60332-3/EN50266
Zero Halogen
IEC 60754-1/NF C20-454
EN 50267-2-1
Low Toxicity


Low Smoke Emission
IEC 61034/NFC20-902
EN 50268/NF C32-073
Low Corrosivity
EN 50267-2-2/NF C32-074
IEC 60754-2/NF C20-453
