ZUG/ ZUT/ SUG Indoor Equipment Cables
Applications :
- The cables are used as cabling for the relays and electronic equipments in the Traffic Control Center and Trackside Equipment Shelter. The cables are suitable for indoor interconnection of railway network equipments.
Standards :
- SNCF CT 455

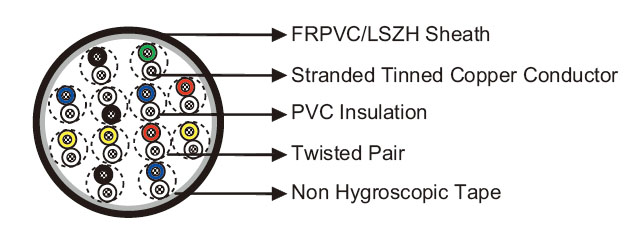

Construction :
- Conductors : Class 5 stranded tinned copper,1 mm2 or 0.38 mm2 cross section.
- Insulation : Coloured PVC.
- Cabling Element : Pairs (for ZUG/ZUT)/Cores (for SUG).
- Core wrapping (optional) : Plastic tape(s) with overlapping.
- Screen (optional) : Tinned copper braid for electrostatic protection (only for ZUT type).
- Sheath : Black FRPVC compound. LSZH option can be offered upon request.
Electrical Characteristics at 20 °C :
-
No. of Strands/ Strand Diameter No/mm 12/0.2 32/0.2 Nominal Cross Section Area mm2 0.38 1 Maximum Conductor Resistance (DC) Ω/km 52.5 20.1 Operating Voltage V 450/750 450/750
Mechanical and Thermal Properties :
- Minimum Bending Radius : 4xOD (static); 8xOD (dynamic)
- Operating Temperature : -15°C to +70°C
Dimensions and Weight :
ZUG Cables
Cable Code | Number of Pairs | Nominal Sheath Thickness mm |
Nominal Overall Diameter mm |
Nominal Weight kg/km |
12/0.2mm Conductor, 1.4mm Insulated Wire | ||||
RS/ZUG-075-YY-28P0.38S | 28 | 0.7 | 15.7 | 310 |
32/0.2mm Conductor, 2.09mm Insulated Wire | ||||
RS/ZUG-075-YY-1P1S | 1 | 0.7 | 7.0 | 59 |
RS/ZUG-075-YY-3P1S | 3 | 0.7 | 9.9 | 108 |
RS/ZUG-075-YY-6P1S | 6 | 0.7 | 12.4 | 184 |
RS/ZUG-075-YY-12P1S | 12 | 0.7 | 15.7 | 335 |
SUG Cables
Cable Code | Number of Conductors | Nominal Sheath Thickness mm |
Nominal Overall Diameter mm |
Nominal Weight kg/km |
32/0.2mm Conductor, 2.09mm Insulated Wire | ||||
RS/SUG-075-YY-3C1S | 3 | 0.7 | 8 | 73 |
ZUT Cables
Cable Code | Number of Pairs | Nominal Sheath Thickness mm |
Nominal Overall Diameter mm |
Nominal Weight kg/km |
32/0.2mm Conductor, 2.09mm Insulated Wire | ||||
RS/ZUT-075-YCY-2P1S | 2 | 0.7 | 9.5 | 122 |
RS/ZUT-075-YCY-6P1S | 6 | 0.7 | 13.5 | 276 |
RS/ZUT-075-YCY-12P1S | 12 | 0.7 | 17.5 | 445 |
Rated voltage |
Laid In Cable Tray |
Flame Retardant NF C32-070-2.1(C2) IEC 60332-1/EN 50265-2-1 |
