600/1000V, XLPE Insulated and Lead Sheathed Cables according to IEC 60502-1

Application :

  • These cables are used for electricity supply in low voltage installation system, They are suitable for installation in indoors and outdoors, in cable ducts, under ground, in power and switching stations, local energy distributions, industrial plants, where there is no risk of mechanical damage. The lead sheath brings an enhanced resistance to aromatic hydrocarbons.

Construction :

  • Conductors Conductors shall be Round Stranded (Non-compacted or Compacted) or shaped, Class 2 as per IEC 60228. For smaller sizes up to and including 4 mm2, Solid Conductors, Class 1 to IEC 60228 can also be provided based on special request.
    Insulation XLPE Insulation material and thickness shall be as per IEC 60502-1 rated for 90°C continuos operation.
    PVC Insulation material and thickness shall be as per IEC 60502-1 and BS 6346. PVC material shall be Type A as per IEC 60502-1 or TI1 as per BS 6346.
    PVC Insulation material as per SASO 1694 rated for 85°C continuous operation is also available upon special request.
    Colour Code Colour Code (1) :
    1 Core : Red or Black
    2 Cores : Red, Black
    3 Cores : Red, Yellow, Blue
    4 Cores : Red, Yellow, Blue, Black
    5 Cores : Red, Yellow, Blue, Black, Green
    Above 5 Cores: Black Cores with White numerals
    Colour Code (2) :
    1 Core : Brown or Blue
    2 Cores : Brown or Blue
    3 Cores : Brown, Black, Grey
    4 Cores : Blue, Brown, Black, Grey
    5 Cores : Green/Yellow, Blue, Brown, Black, Grey
    Above 5 Cores: Black Cores with White numerals
    Assembly / Inner Sheath Two, Three or Four insulated conductors are laid-up together with non-hygroscopic fillers compatible with the insulation material and the assembly is bedded with an extruded layer of PVC.
    Lead Sheath Extruded lead Alloy Type "E" to BS 12548. Thickness of lead shall be as per IEC 60502-1. Cables with other thickness of Lead Sheath can also be provided based on specific request.
    Armour Galvanized Steel Wires in accordance with IEC 60502-1 or BS 6346 or BS 5467 laid helically over PVC bedding as per requirement.
    Galvanized Steel Tapes applied helically over PVC bedding in accordance with IEC 60502-1
    Outer Sheath Outer sheath shall be of Extruded PVC Type ST2 as per IEC 60502-1 or Type 9 as BS 6346/5467.
    Special type of PVC sheathing material such as Fire Retardant PVC, Anti-Termite PVC, Anti-Rodent PVC, Sunlight resistant PVC, Oil Resistant PVC are available on special request. Also, special sheathing materials such as LLDPE, MDPE, HDPE, LSF, CPE are available on request.

Cable Parameters :

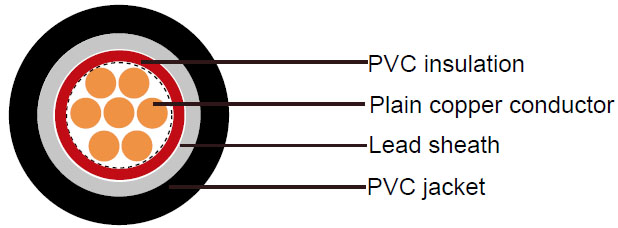

  • Single core(unarmoured)
  • Nominal Cross Section Diameter of Conductor (Approx.) Nominal Insulation Thickness Nominal Lead Sheath Thickness Nominal PVC Sheath Thickness Overall Diameter (Approx.) Weight of Cable (Approx.)
    mm² mm mm mm mm mm Kg/Km
    1x10 rm 4 0.7 1.2 1.4 16 715
    1x16 rm 5 0.7 1.2 1.4 17 825
    1x25 rm 6.3 0.9 1.2 1.4 19 1025
    1x35 rm 7.4 0.9 1.2 1.4 20 1150
    1x50 rm 8.8 1 1.2 1.4 21 1350
    1x70 rm 10.6 1.1 1.2 1.5 23 1675
    1x95 rm 12.4 1.1 1.2 1.5 25 2025
    1x120 rm 14 1.2 1.2 1.6 27 2425
    1x150 rm 15.5 1.4 1.3 1.7 29 2800
    1x185 rm 17.4 1.6 1.4 1.7 31 3400
    1x240 rm 20.3 1.7 1.4 1.8 35 4250
    1x300 rm 22.7 1.8 1.5 1.9 37 5000
    1x400 rm 25.4 2 1.6 2 42 6250
    1x500 rm 28.8 2.2 1.7 2.2 46 7725
    1x630 rm 30.4 2.4 1.8 2.3 48 9275
  •

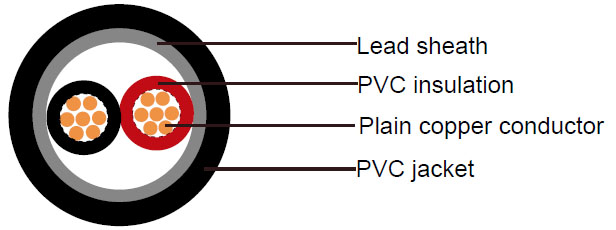

  • Two cores(unarmoured)
  • Nominal Cross Section Diameter of Conductor (Approx.) Nominal Insulation Thickness Nominal Lead Sheath Thickness Nominal PVC Sheath Thickness Overall Diameter (Approx.) Weight of Cable (Approx.)
    mm² mm mm mm mm mm Kg/Km
    2x2.5 rm 2 0.7 1.2 1.8 18 825
    2x4 rm 2.6 0.7 1.2 1.8 19 925
    2x6 rm 3.1 0.7 1.2 1.8 20 1025
    2x10 rm 4 0.7 1.2 1.8 22 1225
    2x16 rm 5 0.7 1.2 1.8 24 1500
    2x25 rm 6.3 0.9 1.2 1.8 27 1925
    2x35 rm 7.4 0.9 1.2 1.8 29 2300
    2x50 rm 8.8 1 1.3 1.8 33 2875
  •

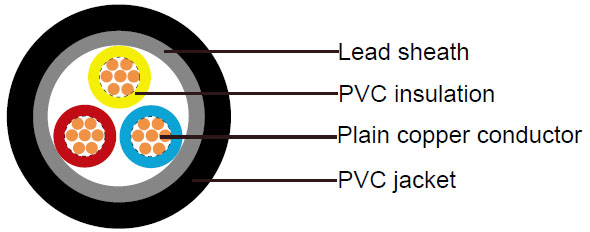

  • Three cores(unarmoured)
  • Nominal Cross Section Diameter of Conductor (Approx.) Nominal Insulation Thickness Nominal Lead Sheath Thickness Nominal PVC Sheath Thickness Overall Diameter (Approx.) Weight of Cable (Approx.)
    mm² mm mm mm mm mm Kg/Km
    Round conductor
    3x1.5 rm 1.6 0.7 1.2 1.8 17 790
    3x2.5 rm 2 0.7 1.2 1.8 18 875
    3x4 rm 2.6 0.7 1.2 1.8 19 1000
    3x6 rm 3.1 0.7 1.2 1.8 21 1125
    3x10 rm 4 0.7 1.2 1.8 23 1375
    3x16 rm 5 0.7 1.2 1.8 25 1700
    3x25 rm 6.3 0.9 1.2 1.8 28 2225
    3x35 rm 7.4 0.9 1.3 1.8 31 2650
    3x50 rm 8.8 1 1.4 1.9 35 3350
    3x70 rm 10.6 1.1 1.5 2 40 4425
    3x95 rm 12.4 1.1 1.6 2.1 44 5625
    3x120 rm 14 1.2 1.7 2.3 49 6850
    3x150 rm 15.5 1.4 1.8 2.4 54 8250
    3x185 rm 17.4 1.6 1.9 2.6 59 10025
    3x240 rm 20.3 1.7 2.1 2.8 67 12900
    3x300 rm 22.7 1.8 2.2 2.9 73 15550
    Sectoral conductor
    3x50 sm - 1 1.3 1.9 32 3000
    3x70 sm - 1.1 1.4 2 36 4000
    3x95 sm - 1.1 1.5 2.1 40 5075
    3x120 sm - 1.2 1.6 2.3 44 6175
    3x150 sm - 1.4 1.7 2.4 48 7525
    3x185 sm - 1.6 1.8 2.6 53 9125
    3x240 sm - 1.7 2 2.8 59 11650
    3x300 sm - 1.8 2.1 2.9 64 14025
  •

  • Three cores+1(unarmoured)
  • Nominal Cross Section Diameter of Conductor (Approx.) Nominal Insulation Thickness Nominal Lead Sheath Thickness Nominal PVC Sheath Thickness Overall Diameter (Approx.) Weight of Cable (Approx.)
    mm² (3)mm (1)mm (3)mm (1)mm mm mm mm Kg/Km
    3x10 rm+6 5 3.1 0.7 0.7 1.2 1.8 23 1475
    3x16 rm+10 6.3 4 0.7 0.7 1.2 1.8 26 1850
    3x25 rm+16 7.4 5 0.9 0.7 1.2 1.8 29 2425
    3x35 sm+16 - 5 0.9 0.7 1.2 1.8 30 2575
    3x50 sm+25 - 6.3 1 0.9 1.3 1.9 33 3325
    3x70 sm+35 - 7.4 1.1 0.9 1.4 2 38 4450
    3x95 sm+50 - 8.8 1.1 1 1.5 2.2 42 5675
    3x120 sm+70 - 10.6 1.2 1.1 1.6 2.3 46 6975
    3x150 sm+70 - 10.6 1.4 1.1 1.7 2.4 50 8325
    3x185 sm+95 - 12.4 1.6 1.1 1.9 2.6 56 10400
    3x240 sm+120 - 14 1.7 1.2 2 2.8 62 13025
    3x300 sm+150 - 15.5 1.8 1.4 2.2 3 67 15950
  •

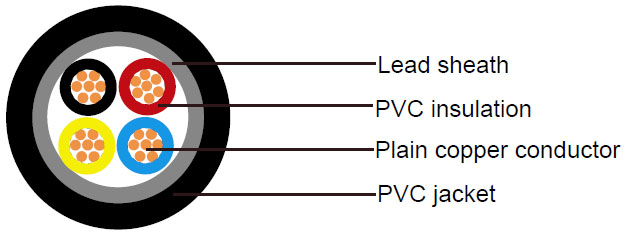

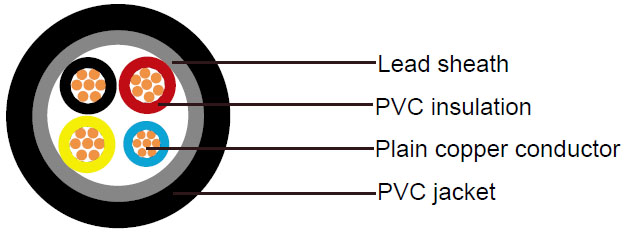

  • Four cores(unarmoured)
  • Nominal Cross Section Diameter of Conductor (Approx.) Nominal Insulation Thickness Nominal Lead Sheath Thickness Nominal PVC Sheath Thickness Overall Diameter (Approx.) Weight of Cable (Approx.)
    mm² mm mm mm mm mm Kg/Km
    4x1.5 rm 1.6 0.7 1.2 1.8 18 850
    4x2.5 rm 2 0.7 1.2 1.8 19 950
    4x4 rm 2.6 0.7 1.2 1.8 20 1100
    4x6 rm 3.1 0.7 1.2 1.8 22 1250
    4x10 rm 4 0.7 1.2 1.8 24 1550
    4x16 rm 5 0.7 1.2 1.8 26 1950
    4x25 rm 6.3 0.9 1.3 1.8 31 2700
    4x35 sm - 0.9 1.2 1.8 31 2800
    4x50 sm - 1 1.4 2 35 3700
    4x70 sm - 1.1 1.5 2.1 40 4950
    4x95 sm - 1.1 1.6 2.3 44 6350
    4x120 sm - 1.2 1.7 2.4 48 7750
    4x150 sm - 1.4 1.8 2.6 53 9425
    4x185 sm - 1.6 2 2.7 58 11575
    4x240 sm - 1.7 2.2 3 65 14800
    4x300 sm - 1.8 2.3 3.2 71 17900
  •

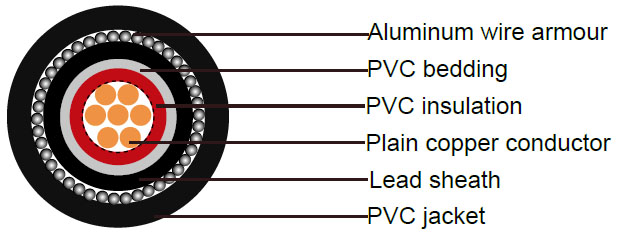

  • Single core( aluminum wire armoured)
  • Nominal Cross Section Diameter of Conductor (Approx.) Nominal Insulation Thickness Nominal Lead Sheath Thickness Nominal dia. of Alum. wire armour Nominal PVC Sheath Thickness Overall Diameter (Approx.) Weight of Cable (Approx.)
    mm² mm mm mm mm mm Kg/Km Kg/Km
    1x35 rm 7.4 0.9 1.2 1.3 1.8 24 1450
    1x50 rm 8.8 1 1.2 1.3 1.8 26 1750
    1x70 rm 10.6 1.1 1.2 1.6 1.8 28 2075
    1x95 rm 12.4 1.1 1.2 1.6 1.8 30 2450
    1x120 rm 14 1.2 1.2 1.6 1.8 32 2900
    1x150 rm 15.5 1.4 1.3 1.6 1.9 34 3300
    1x185 rm 17.4 1.6 1.4 1.6 2 37 3950
    1x240 rm 20.3 1.7 1.4 2 2.1 41 5000
    1x300 rm 22.7 1.8 1.5 2 2.1 44 5825
    1x400 rm 25.4 2 1.6 2 2.3 48 7150
    1x500 rm 28.8 2.2 1.7 2.5 2.4 54 8900
    1x630 rm 30.4 2.4 1.8 2.5 2.6 57 10600
  •

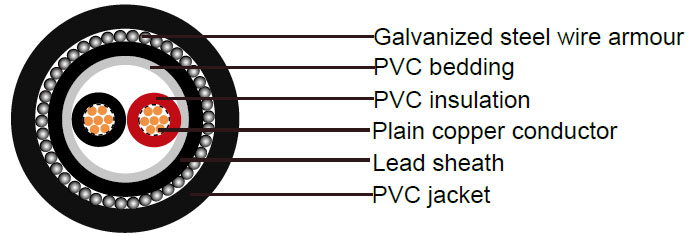

  • Two cores(Galvanized steel wire armoured)
  • Nominal Cross Section Nominal Diameter of Conductor Nominal Insulation Thickness Nominal Lead Sheath Thickness Nominal dia. of Steel wire armour Nominal PVC Sheath Thickness Overall Diameter (Approx.) Weight of Cable (Approx.)
    mm² mm mm mm mm mm Kg/Km Kg/Km
    2x2.5 rm 2 0.7 1.2 1.3 1.8 22 1325
    2x4 rm 2.6 0.7 1.2 1.3 1.8 23 1450
    2x6 rm 3.1 0.7 1.2 1.3 1.8 24 1600
    2x10 rm 4 0.7 1.2 1.6 1.8 27 2025
    2x16 rm 5 0.7 1.2 1.6 1.8 29 2350
    2x25 rm 6.3 0.9 1.2 1.6 1.8 32 2900
    2x35 rm 7.4 0.9 1.2 1.6 1.9 35 3350
    2x50 rm 8.8 1 1.3 2 2 39 4375
  •

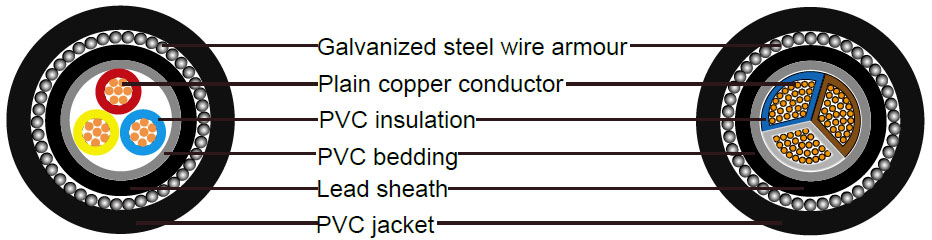

  • Three cores(Galvanized steel wire armoured)
  • Nominal Cross Section Nominal Diameter of Conductor Nominal Insulation Thickness Nominal Lead Sheath Thickness Nominal dia. of Steel wire armour Nominal PVC Sheath Thickness Overall Diameter (Approx.) Weight of Cable (Approx.)
    mm² mm mm mm mm mm Kg/Km Kg/Km
    Round conductor
    3x1.5 rm 1.6 0.7 1.2 1.3 1.8 22 1275
    3x2.5 rm 2 0.7 1.2 1.3 1.8 23 1400
    3x4 rm 2.6 0.7 1.2 1.3 1.8 24 1550
    3x6 rm 3.1 0.7 1.2 1.3 1.8 25 1725
    3x10 rm 4 0.7 1.2 1.6 1.8 28 2175
    3x16 rm 5 0.7 1.2 1.6 1.8 30 2575
    3x25 rm 6.3 0.9 1.2 1.6 1.9 34 3250
    3x35 rm 7.4 0.9 1.3 1.6 1.9 36 3750
    3x50 rm 8.8 1 1.4 2 2.1 41 4900
    3x70 rm 10.6 1.1 1.5 2 2.2 47 6225
    3x95 rm 12.4 1.1 1.6 2.5 2.4 51 7650
    3x120 rm 14 1.2 1.7 2.5 2.5 57 9550
    3x150 rm 15.5 1.4 1.8 2.5 2.7 62 11300
    3x185 rm 17.4 1.6 1.9 2.5 2.8 68 13375
    3x240 rm 20.3 1.7 2.1 2.5 3.1 76 16700
    3x300 rm 22.7 1.8 2.2 2.5 3.2 82 19725
    Sectoral conductor
    3x50 sm - 1 1.3 2 2.1 39 4450
    3x70 sm - 1.1 1.4 2 2.2 43 5650
    3x95 sm - 1.1 1.5 2 2.4 47 6900
    3x120 sm - 1.2 1.6 2.5 2.5 52 8575
    3x150 sm - 1.4 1.7 2.5 2.7 57 10275
    3x185 sm - 1.6 1.8 2.5 2.8 61 12100
    3x240 sm - 1.7 2 2.5 3 67 14975
    3x300 sm - 1.8 2.1 2.5 3.2 73 17700
  •

  • Three cores+1(Galvanized steel wire armoured)
  • Nominal Cross Section Diameter of Conductor (Approx.) Nominal Insulation Thickness Nominal Lead Sheath Thickness Nominal dia. of Steel Wire armour Nominal PVC Sheath Thickness Overall Diameter (Approx.) Weight of Cable (Approx.)
    mm² (3) mm (1) mm (3) mm (1) mm mm mm mm mm Kg/Km
    3x10 rm+6 5 3.1 0.7 0.7 1.2 1.8 1.6 29 2325
    3x16 rm+10 6.3 4 0.7 0.7 1.2 1.8 1.6 31 2775
    3x25 rm+16 7.4 5 0.9 0.7 1.2 1.9 1.6 35 3475
    3x35 sm+16 - 5 0.9 0.7 1.2 2 1.6 35 3650
    3x50 sm+25 - 6.3 1 0.9 1.3 2.1 2 40 4825
    3x70 sm+35 - 7.4 1.1 0.9 1.4 2.3 2 45 6175
    3x95 sm+50 - 8.8 1.1 1 1.5 2.4 2.5 50 8025
    3x120 sm+70 - 10.6 1.2 1.1 1.6 2.6 2.5 54 9575
    3x150 sm+70 - 10.6 1.4 1.1 1.7 2.7 2.5 59 11175
    3x185 sm+95 - 12.4 1.6 1.1 1.9 2.9 2.5 64 13575
    3x240 sm+120 - 14 1.7 1.2 2 3.1 2.5 70 16525
    3x300 sm+150 - 15.5 1.8 1.4 2.2 3.4 3.15 78 20800
  •

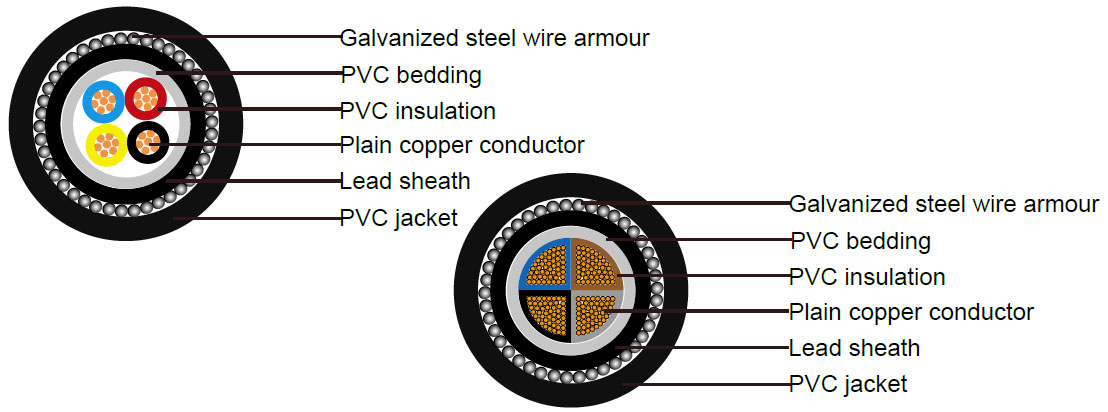

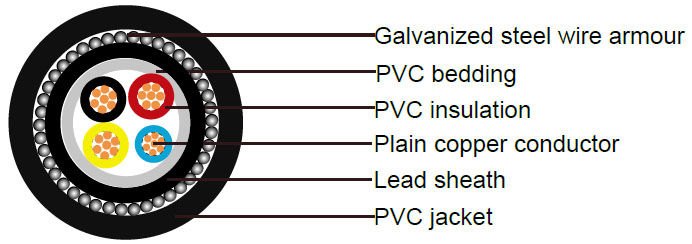

  • Four cores(Galvanized steel wire armoured)
  • Nominal Cross Section Nominal Diameter of Conductor Nominal Insulation Thickness Nominal Lead Sheath Thickness Nominal dia. of Steel wire armour Nominal PVC Sheath Thickness Overall Diameter (Approx.) Weight of Cable (Approx.)
    mm² mm mm mm mm mm Kg/Km Kg/Km
    4x1.5 rm 1.6 0.7 1.2 1.3 1.8 23 1350
    4x2.5 rm 2 0.7 1.2 1.3 1.8 24 1500
    4x4 rm 2.6 0.7 1.2 1.3 1.8 25 1700
    4x6 rm 3.1 0.7 1.2 1.6 1.8 27 2050
    4x10 rm 4 0.7 1.2 1.6 1.8 29 2425
    4x16 rm 5 0.7 1.2 1.6 1.8 32 2875
    4x25 rm 6.3 0.9 1.3 1.6 1.9 36 3800
    4x35 sm - 0.9 1.2 2 2.1 38 4200
    4x50 sm - 1 1.4 2 2.2 42 5300
    4x70 sm - 1.1 1.5 2 2.3 46 6775
    4x95 sm - 1.1 1.6 2.5 2.5 52 8800
    4x120 sm - 1.2 1.7 2.5 2.7 57 10500
    4x150 sm - 1.4 1.8 2.5 2.9 62 12450
    4x185 sm - 1.6 2 2.5 3 67 14950
    4x240 sm - 1.7 2.2 2.5 3.3 74 18550
    4x300 sm - 1.8 2.3 3.2 3.5 81 22900
