318TQ to BS 6500
Application and Description
These cables can be used either in dry, humid or wet places or in contact with oil or grease, in weather conditions and under weak mechanical stress, they are suitable for power supply to small appliances in industrial plants, machine shops, heating plates, portable lamps, farming equipment etc. They are also suitable for caravans and camping equipment. 318TQ is equivalent to harmonized code H05BN4-F.

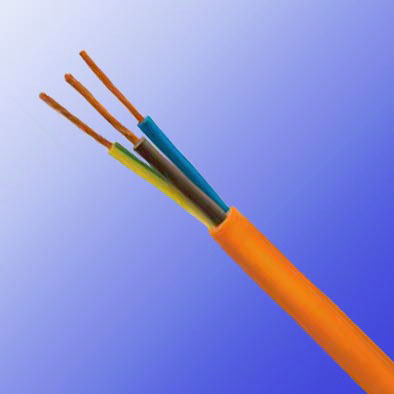

Cable Construction

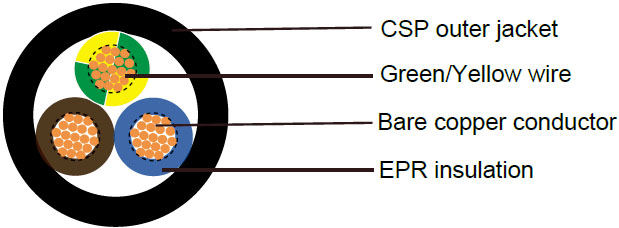

| Fine bare copper strands |
| Stranding to BS 6360 Class 5 or IEC 60228 Class 5 |
| EPR(Ethylene Propylene Rubber) rubber EI7 insulation |
| CSP(Chlorosulphonated Polyethylene) outer jacket EM7 |
Core Identification
| 2 Cores |
Brown, Blue |
| 3 cores |
Green/Yellow, Brown, Blue |
| 4 cores |
Green/Yellow, Brown, Black, Grey |
| 5 Cores |
Green/Yellow, Blue, Brown, Black, Grey |
| 6 cores and above |
white insulation with black numerals |
Technical Characteristics
| Working voltage |
300/500 volts |
| Test voltage |
2000 volts |
| Flexing bending radius |
6xOverall diameter |
| Fixed bending radius |
4xOverall diameter |
| Temperature range |
-20 oC to +90 oC |
| Short circuit temperature |
+250 oC |
| Flame retardant |
IEC 60332.1 |
| Insulation resistance |
20 MΩxkm |
Cable Parameter
| AWG (No of Strands/Strand Diameter) |
No. of Cores x Nominal Cross Sectional Area |
Nominal thickness of insulation |
Nominal thickness of sheath |
Nominal overall Diameter |
Nominal Weight |
| #xmm^2 |
mm |
mm |
mm |
kg/km |
| 3181TQ |
| 20(16/32) |
1x0.5 |
0.6 |
0.8 |
3.8 |
19 |
| 18(24/32) |
1x0.75 |
0.6 |
0.8 |
4 |
23 |
| 17(32/32) |
1x1 |
0.6 |
0.8 |
4.2 |
28 |
| 16(30/30) |
1x1.5 |
0.8 |
0.8 |
4.9 |
38 |
| 14(50/30) |
1x2.5 |
0.9 |
0.8 |
5.5 |
41 |
| 12(56/28) |
1x4 |
1 |
0.8 |
6.3 |
73 |
| 3182TQ |
| 20(16/32) |
2x0.5 |
0.6 |
0.8 |
6.1 |
59 |
| 18(24/32) |
2x0.75 |
0.6 |
0.8 |
6.5 |
66 |
| 17(32/32) |
2x1 |
0.6 |
0.9 |
7.1 |
79 |
| 16(30/30) |
2x1.5 |
0.8 |
1 |
8.7 |
120 |
| 14(50/30) |
2x2.5 |
0.9 |
1.1 |
10.1 |
170 |
| 12(56/28) |
2x4 |
1 |
1.2 |
11.9 |
235 |
| 3183TQ |
| 20(16/32) |
3x0.5 |
0.6 |
0.8 |
6.5 |
65 |
| 18(24/32) |
3x0.75 |
0.6 |
0.9 |
7.1 |
80 |
| 17(32/32) |
3x1 |
0.6 |
0.9 |
7.6 |
94 |
| 16(30/30) |
3x1.5 |
0.8 |
1 |
9.3 |
140 |
| 14(50/30) |
3x2.5 |
0.9 |
1.1 |
10.8 |
200 |
| 12(56/28) |
3x4 |
1 |
1.2 |
12.7 |
285 |
| 3184TQ |
| 18(24/32) |
4x0.75 |
0.6 |
0.9 |
7.7 |
96 |
| 17(32/32) |
4x1 |
0.6 |
0.9 |
8.2 |
113 |
| 16(30/30) |
4x1.5 |
0.8 |
1.1 |
10.3 |
174 |
| 14(50/30) |
4x2.5 |
0.9 |
1.2 |
12 |
252 |
| 12(56/28) |
4x4 |
1 |
1.3 |
14.1 |
355 |
| 3185TQ |
| 18(24/32) |
5x0.75 |
0.6 |
1 |
8.6 |
115 |
| 17(32/32) |
5x1 |
0.6 |
1 |
9.2 |
140 |
| 16(30/30) |
5x1.5 |
0.8 |
1.2 |
11.5 |
195 |
| 14(50/30) |
5x2.5 |
0.9 |
1.2 |
13.1 |
290 |
| 12(56/28) |
5x4 |
1 |
1.3 |
15.4 |
417 |
| 3186TQ |
| 18(24/32) |
6x0.75 |
0.6 |
1.1 |
9.6 |
135 |
| 17(32/32) |
6x1 |
0.6 |
1.1 |
10.2 |
171 |
| 16(30/30) |
6x1.5 |
0.8 |
1.3 |
12.7 |
235 |
| 14(50/30) |
6x2.5 |
0.9 |
1.4 |
14.7 |
340 |
| 3187TQ |
| 18(24/32) |
7x0.75 |
0.6 |
1.1 |
10.4 |
170 |
| 17(32/32) |
7x1 |
0.6 |
1.1 |
11.1 |
201 |
| 16(30/30) |
7x1.5 |
0.8 |
1.2 |
13.6 |
366 |
| 14(50/30) |
7x2.5 |
0.9 |
1.3 |
15.8 |
424 |
| 3188TQ |
| 18(24/32) |
8x0.75 |
0.6 |
1.2 |
11.3 |
175 |
| 17(32/32) |
8x1 |
0.6 |
1.3 |
12.3 |
244 |
| 16(30/30) |
8x1.5 |
0.8 |
1.5 |
15.2 |
315 |
| 14(50/30) |
8x2.5 |
0.9 |
1.7 |
17.8 |
465 |
| 3189TQ |
| 18(24/32) |
9x0.75 |
0.6 |
1.3 |
12.4 |
201 |
| 17(32/32) |
9x1 |
0.6 |
1.3 |
13.2 |
268 |
| 16(30/30) |
9x1.5 |
0.8 |
1.6 |
16.6 |
333 |
| 14(50/30) |
9x2.5 |
0.9 |
1.8 |
119.4 |
490 |
| 31810TQ |
| 18(24/32) |
10x0.75 |
0.6 |
1.3 |
12.4 |
215 |
| 17(32/32) |
10x1 |
0.6 |
1.3 |
13.2 |
286 |
| 16(30/30) |
10x1.5 |
0.8 |
1.6 |
16.6 |
360 |
| 14(50/30) |
10x2.5 |
0.9 |
1.8 |
19.4 |
530 |
