Category 6 Cables

Applications :

  • 10Base-T4, 100Base-TX, 100Base-VG-ANYLAN, 155MbpsATM, 622 Mbps ATM, 1000Base-T, 10GBase-T

Standards :

  • ISO / IEC 11801, EN50173, TIA / EIA 568-B

Product Construction Matrix :

  •   U/UTP F/UTP U/FTP SF/UTP S/FTP
    Conductor 23AWG Solid Plain Copper 23AWG Solid Plain Copper 23AWG Solid Plain Copper 23AWG Solid Plain Copper 23AWG Solid Plain Copper
    Insulation PE PE PE PE PE
    Screen Nil Overall Aluminum Tape Screen Individual Aluminum Tape Screen Overall Aluminum Tape Screen & Copper Wire Braid Individual Aluminum Tape Screen & Overall Copper Wire Braid
    Drain Wire Nil 1/0.5 mm 1/0.5 mm Nil Nil
    Jacket PE/PVC/LSF/LSZH/LSFROH PE/PVC/LSF/LSZH PE/PVC/LSF/LSZH/LSFROH
  • Remark : PE- Polyethylene; PVC- Polyvinyl Chloride; LSF- Low Smoke & Fume; LSZH- Low Smoke Zero Halogen; LSFROH-Low Smoke Flame Retardant Zero Halogen (to IEC60332-3C); PVC can be classified as CMX, CM, CMR and CMP.

Working Frequency :

  • 1 - 250 MHz
  •
  •

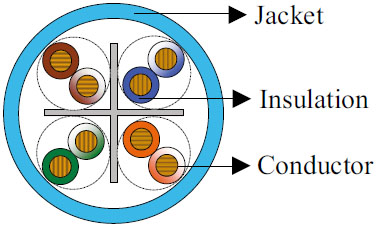

    Cat6 U/UTP

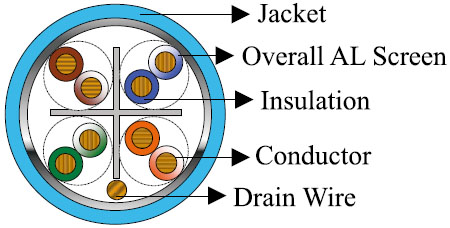

    Cat6 F/UTP

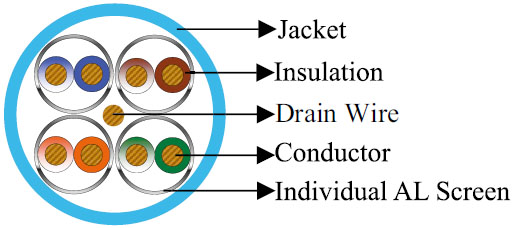

    Cat6 U/FTP

Technical Parameters :

  • Characteristic Impedance: 100±15Ω (1-250MHz)
    Nominal Velocity of Propagation (NVP): CMX, CM, CMR, LSZH 69%; CMP 72%
    Maximum Mutual Capacitance: 5.6nF/100m
    Maximum Capacitance Unbalance: 330pF/100m
    Maximum DC Resistance: 7.5Ω/100m
    Maximum Resistance Unbalance: 3%
    Maximum Propagation Delay Skew: 30ns/100m (1-125MHz)
    Maximum Propagation Delay: 536ns/100m@100MHz
    Minimum Bending Radius: 10 x Overall Diameter
    Maximum Pulling Load: 80N
    Working Temperature: -20℃ ~ +60℃
    Storage Temperature: -5℃ ~ +50℃
    Flame Retardancy: UL 1581 (CM Jacket); UL 1666 (CMR Jacket)
    UL 910 (CMP Jacket); IEC 60332-1 (FRPVC & LSZH Jacket)
    IEC 60332-1 & IEC 60332-3C (LSFROH Jacket)

Product Categories :

  • Construction Conductor Diameter (mm) Diameter Over Insulation (mm) Pairs Screen Overall Diameter (mm) Jacket
    U/UTP 0.57/0.58 1.02 4 Nil 6.0 PVC/LSZH
    U/UTP 0.57/0.58 1.02 4 Nil 6.5 LSFROH
    U/UTP 0.57/0.58 1.02 4 Nil 6.2 PE
    F/UTP 0.57/0.58 1.02 4 Overall Aluminum Tape Screen 6.3 PVC/LSZH
    F/UTP 0.57/0.58 1.02 4 Overall Aluminum Tape Screen 6.5 PE
    U/FTP 0.57/0.58 1.02 4 IndividualAluminum Tape Screen 7.5 PVC/LSZH
    SF/UTP 0.57/0.58 1.02 4 Overall Aluminum Tape Screen & Copper Wire Braid 6.6 PVC/LSZH
    SF/UTP 0.57/0.58 1.02 4 Overall Aluminum Tape Screen & Copper Wire Braid 7.1 LSFROH
    S/FTP 0.57/0.58 1.02 4 IndividualAluminum Tape Screen & Overall Copper Wire Braid 8.0 PVC/LSZH
    S/FTP 0.57/0.58 1.02 4 IndividualAluminum Tape Screen & Overall Copper Wire Braid 8.4 LSFROH

Product Highlights :

  • Provide excellent bandwidth beyond 250 MHz.
  • Support 10 Gigabit Ethernet application.
  • Meet the strict flame retardancy and environmental requirements in Europe and US.
  • Different jacket materials available for choice.
  • Guaranteed ACR Value > 0dB @ 250MHz.
  • Special purpose cables can be offered according to customer request.
  • Different jacket color options available for choice.

Transmission Properties :

  • FREQ (MHz) NEXT (dB/100m) (Minimum/
    Typical/
    Standard)
    Value    		 IL (dB/100m) RL (dB/100m) (Minimum/
    Typical/
    Standard)
    Value    		 ACR (dB/100m) (Minimum/
    Typical/
    Standard)
    Value    		 ELFEXT (dB/100m) (Minimum/
    Typical/
    Standard)
    Value    		 PSNEXT (dB/100m) (Minimum/
    Typical/
    Standard)
    Value    		 PSACR (dB/100m) (Minimum/
    Typical/
    Standard)
    Value    		 PSELFEXT (dB/100m) (Minimum/
    Typical/
    Standard)
    Value
    1 77.3/87.0/74.3 2.0 20.0/21.5/20.0 75.2/85.0/72.2 68.8/80.0/67.8 75.3/85.0/72.3 73.2/83.0/70.2 65.8/70.0/64.8
    4 68.3/77.0/65.3 3.8 23.0/24.7/23.0 64.4/73.0/61.4 56.8/66.0/55.8 66.3/74.0/63.3 62.5/71.0/59.5 53.8/63.0/52.8
    8 63.8/72.0/60.8 5.3 24.5/25.5/24.5 58.4/67.0/55.4 50.7/61.0/49.7 61.8/70.0/58.8 56.5/65.0/53.5 47.7/58.0/46.7
    10 62.3/70.0/59.3 6.0 25.0/28.0/25.0 56.3/64.0/53.3 48.8/57.0/47.8 60.3/68.0/57.3 54.3/62.0/51.3 45.8/54.0/44.8
    16 59.2/66.0/56.2 7.6 25.0/28.0/25.0 51.6/59.0/48.6 44.7/52.0/43.7 57.2/64.0/54.2 49.6/57.0/46.6 41.7/49.0/40.7
    20 57.8/65.0/54.8 8.5 25.0/28.0/25.0 49.3/57.0/46.3 42.8/50.0/41.8 55.8/63.0/52.8 47.3/55.0/44.3 39.8/47.0/38.8
    25 56.3/63.0/53.3 9.5 24.3/27.0/24.3 46.8/5 4.0/43.8 40.8/47.0/39.8 54.3/61.0/51.3 44.8/52.0/41.8 37.8/44.0/36.8
    31.25 54.9/61.0/51.9 10.7 23.6/26.5/23.6 44.1/51.0/41.1 38.9/45.0/37.9 52.9/59.0/49.9 42.1/49.0/39.1 35.9/42.0/34.9
    62.5 50.4/57.0/47.4 15.4 21.5/24.6/21.5 34.9/42.0/31.9 32.9/38.0/31.9 48.4/55.0/45.4 32.9/40.0/29.9 29.9/35.0/28.9
    100 47.3/53.0/44.3 19.8 20.1/23.7/20.1 27.4/33.0/24.4 28.8/34.0/27.8 45.3/51.0/42.3 25.4/31.0/22.4 25.8/31.0/24.8
    200 42.8/48.0/39.8 29.0 18.0/22.2/18.0 13.6/21.0/10.6 22.8/27.0/21.8 40.8/46.0/37.8 11.6/19.0/8.6 19.8/24.0/18.8
    250 41.3/46.0/38.3 32.8 17.3/21.6/17.3 8.3/14.0/5.3 20.8/24.0/19.8 39.3/44.0/36.3 6.3/12.0/3.3 17.8/21.0/16.8
    300 37.1/45.0/37.1 36.4 16.8/20.7/16.8 0.5/11.0/0.5 18.3/23.0/18.3 35.1/43.0/35.1 -1.5/9.0/-1.5 15.3/20.0/15.3
    350 36.1/44.0/36.1 39.8 16.3/20.3/16.3 -3.8/6.6/-3.8 16.9/21.0/16.9 34.1/42.0/34.1 -5.8/4.6/-5.8 13.9/18.0/13.9
    400 35.3/43.0/35.3 43.0 15.9/16.8/15.9 -7.9/2.6/-7.9 15.8/20.0/15.8 33.3/41.0/33.3 -9.9/0.6/-9.9 12.8/17.0/12.8
    450 34.5/42.0/34.5 46.3 15.5/16.5/15.5 -10.5/-1.1/-10.5 14.7/18.0/14.7 32.5/40.0/32.5 -12.5/-3.1/-12.5 11.7/15.0/11.7
    500 33.8/41.0/33.8 48.9 15.2/16.1/15.2 -15.3/-6.2/-15.3 13.8/18.0/13.8 31.8/39.0/31.8 -17.3/-8.2/-17.3 10.8/15.0/10.8
    550 33.2/41.0/33.2 51.8 14.9/15.7/14.9 -18.6/-12.0/-18.6 12.9/17.0/12.9 31.2/39.0/31.2 -20.6/-14.0/-20.6 9.9/13.0/9.9
    600 32.4/33.0/32.4 54.5 14.7/15.0/14.7 -21.9/-21.0/-21.9 12.2/14.0/12.2 30.6/31.0/30.6 -23.9/-23.0/-23.9 9.2/11.0/9.2
  • *Data for 250MHz above are for reference only
  •
  •

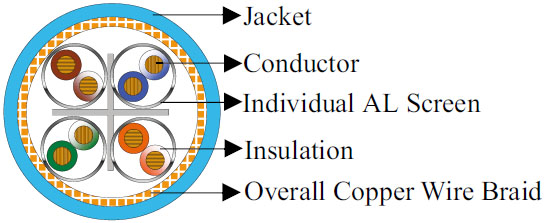

    Cat6 S/FTP

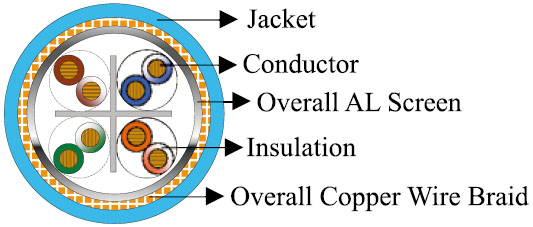

    Cat6 SF/UTP
