BS 6724 Armoured Power Cables, 600/1000V

Applications :

  • These cables are used for power and control circuits, they can offer excellent protection through the use of a heavy galvanized steel wire armour. The GSWA makes them suitable for use inside and outside buildings or for direct burial in the ground. For installation where fire, smoke emission and toxic fumes create a potential threat to life and equipment.

Construction :

  • Conductor Solid Aluminum or Copper conductor, round stranded or shaped, Class 2 to BS 6460, IEC 60228.
    Insulation XLPE (Cross-Linked Polyethylene) Type GP 8 or ethylene propylene rubber (GP 6)
    Colour Code 1 Core : Brown
    2 Cores: Brown, Blue
    3 Cores: Brown, Black, Grey
    4 Cores: Blue, Brown, Black, Grey
    5 Cores: Green-yellow, Blue, Brown, Black, Grey
    Above 5 Cores: White Cores with black numbers
    Bedding LSOH (Low Smoke Zero Halogen)
    Armour Single Core: AWA (Aluminum Wire Armour)
    Multi Core: SWA (Steel Wire Armour)
    Outer Sheath LSOH (Low Smoke Zero Halogen)

Technical Information :

  • Voltage rating 600/1000V
    Temperature rating 0°C to + 90°C
    Bending radius 1.5mm² to 16mm² : 6 x overall diameter
    25mm² and above : 8 x overall diameter
    Flame retardant IEC60332 part 1, BS4066 part 1
    Halogen free IEC 60754, EN 50267
    Smoke density IEC 61034, EN50268

Cable Parameter :

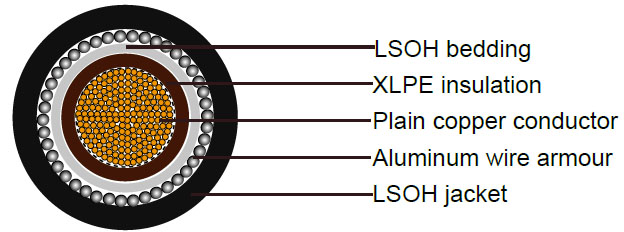

  • Single-core 600/1000 V cables with circular stranded copper conductor
  • Nominal Cross-sectional Area Strand Type Nominal Insulation Thickness Nominal Bedding Thickness Nominal Alum Wire Armor dia. Nominal Sheath Thickness Approx.Overall Diameter AprroxWeight
    mm² No./mm mm mm mm mm mm kg/km
    1x50 19/1.78 1.0 0.8 0.9 1.5 17.5 800
    1x70 19/2.14 1.1 0.8 1.25 1.5 20.2 990
    1x95 19/2.52 1.1 0.8 1.25 1.6 22.3 1280
    1x120 37/2.03 1.2 0.8 1.25 1.6 24.2 1550
    1x150 37/2.25 1.4 1 1.6 1.7 27.4 1900
    1x185 37/2.52 1.6 1 1.6 1.8 30.0 2320
    1x240 61/2.25 1.7 1 1.6 1.8 32.8 2930
    1x300 61/2.52 1.8 1 1.6 1.9 35.6 3580
    1x400 61/2.85 2.0 1.2 2.0 2.0 40.5 4600
    1x500 61/3.20 2.2 1.2 2.0 2.1 44.2 5680
    1x630 127/2.52 2.4 1.2 2.0 2.2 48.8 7160
    1x800 127/2.85 2.6 1.4 2.5 2.4 55.4 9315
    1x1000 127/3.20 2.8 1.4 2.5 2.5 60.6 11490
  •

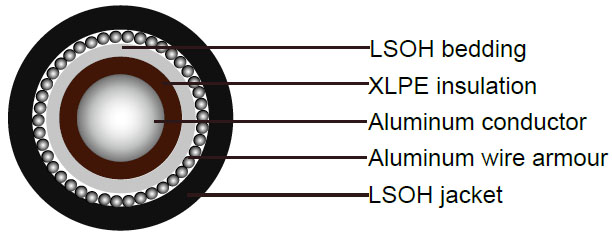

  • Single-core 600/1000 V cables with solid aluminum conductor
  • Nominal Cross-sectional Area Nominal Insulation Thickness Nominal Bedding Thickness Nominal Alum Wire Armor dia. Nominal Sheath Thickness Approx. Overall Diameter Aprrox Weight
    mm² mm mm mm mm mm kg/km
    1x50 1.0 0.8 0.9 1.5 16.3 460
    1x70 1.1 0.8 1.25 1.5 18.7 560
    1x95 1.1 0.8 1.25 1.6 20.6 690
    1x120 1.2 0.8 1.25 1.6 22.1 800
    1x150 1.4 1 1.6 1.7 25.2 970
    1x185 1.6 1 1.6 1.8 27.4 1150
    1x240 1.7 1 1.6 1.8 29.9 1380
    1x300 1.8 1 1.6 1.9 32.4 1640
  •

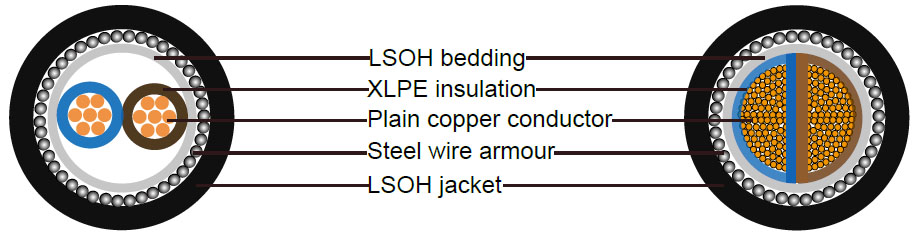

  • Two-core 600/1000 V cables with stranded copper conductors
  • Nominal Cross-sectional Area Strand Type Nominal Insulation Thickness Nominal Bedding Thickness Nominal Steel Wire Armor dia. Nominal Sheath Thickness Approx.Overall Diameter Aprrox Weight
    mm² No./mm mm mm mm mm mm kg/km
    2x1.5 7/0.53 0.6 0.8 0.9 1.4 12.1 320
    2x2.5 7/0.67 0.7 0.8 0.9 1.4 13.6 365
    2x4 7/0.85 0.7 0.8 0.9 1.4 14.7 440
    2x6 7/1.04 0.7 0.8 0.9 1.4 15.9 470
    2x10 7/1.35 0.7 0.8 0.9 1.5 18.0 800
    2x16 7/1.70 0.7 0.8 1.25 1.5 20.4 900
    2x25 7/2.14 0.9 0.8 1.25 1.6 24.1 1240
    2x25* 7/2.14 0.9 0.8 1.25 1.6 20.4 1240
    2x35 7/2.52 0.9 1 1.6 1.7 27.7 1710
    2x35* 7/2.52 0.9 1 1.6 1.7 23.3 1710
    2x50* 19/1.78 1.0 1 1.6 1.8 25.8 1800
    2x70* 19/2.14 1.1 1 1.6 1.9 29.0 2320
    2x95* 19/2.52 1.1 1.2 2.0 2.0 33.0 3150
    2x120* 37/2.03 1.2 1.2 2.0 2.1 36.1 3880
    2x150* 37/2.25 1.4 1.2 2.0 2.2 39.3 4820
    2x185* 37/2.52 1.6 1.4 2.5 2.4 44.7 5920
    2x240* 61/2.25 1.7 1.4 2.5 2.5 49.0 7300
    2x300* 61/2.52 1.8 1.6 2.5 2.6 53.5 8770
    2x400* 61/2.85 2 1.6 2.5 2.8 59.0 10905
  • * D-Shaped stranded conductor (class 2)
  •

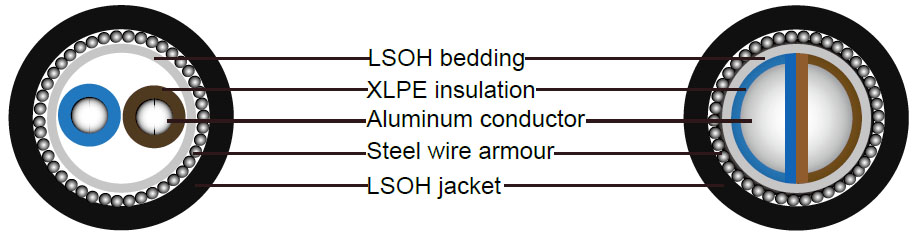

  • Two-core 600/1000 V cables with solid aluminum conductors
  • Nominal Cross-sectional Area Nominal Insulation Thickness Nominal Bedding Thickness Nominal Steel Wire Armor dia. Nominal Sheath Thickness Approx. Overall Diameter Aprrox Weight
    mm² mm mm mm mm mm kg/km
    2x16 0.7 0.8 1.25 1.5 19.1 650
    2x25 0.9 0.8 1.25 1.5 22.4 915
    2x25* 0.9 0.8 1.25 1.6 18.7 1255
    2x35 0.9 1 1.6 1.6 25.7 1255
    2x35* 0.9 1 1.6 1.7 21.4 1430
    2x50* 1.0 1 1.6 1.8 23.5 1430
    2x70* 1.1 1 1.6 1.9 26.3 1780
    2x95* 1.1 1.2 2.0 2 30 1950
  • *Solid shaped conductor (class 1)
  •
  • Three-core 600/1000 V cables with stranded copper conductors
  • Nominal Cross-sectional Area Strand Type Nominal Insulation Thickness Nominal Bedding Thickness Nominal Steel Wire Armor dia. Nominal Sheath Thickness Approx.Overall Diameter Aprrox Weight
    mm² No./mm mm mm mm mm mm kg/km
    3x1.5 7/0.53 0.6 0.8 0.9 1.3 12.6 340
    3x2.5 7/0.67 0.7 0.8 0.9 1.4 14.1 408
    3x4 7/0.85 0.7 0.8 0.9 1.4 15.3 498
    3x6 7/1.04 0.7 0.8 0.9 1.4 16.6 600
    3x10 7/1.35 0.7 0.8 1.25 1.5 19.5 915
    3x16 7/1.70 0.7 0.8 1.25 1.6 21.6 1130
    3x25 7/2.14 0.9 1 1.6 1.7 26.7 1710
    3x25* 7/2.14 0.9 1 1.6 1.7 23.6 1710
    3x35 7/2.52 0.9 1 1.6 1.8 29.4 2100
    3x35* 7/2.52 0.9 1 1.6 1.8 25.7 2100
    3x50* 19/1.78 1.0 1 1.6 1.8 28.5 2450
    3x70* 19/2.14 1.1 1 1.6 1.9 32.2 3120
    3x95* 19/2.52 1.1 1.2 2.0 2.1 37.0 4310
    3x120* 37/2.03 1.2 1.2 2.0 2.2 40.4 5160
    3x150* 37/2.25 1.4 1.4 2.5 2.3 45.5 7160
    3x185* 37/2.52 1.6 1.4 2.5 2.4 49.8 8600
    3x240* 61/2.25 1.7 1.4 2.5 2.6 55.1 10755
    3x300* 61/2.52 1.8 1.6 2.5 2.7 60.2 13080
    3x400* 61/2.85 2 1.6 2.5 2.9 66.6 15810
  • *Shaped stranded conductor (class 2)
  •
  • Three-core 600/1000 V cables with solid aluminum conductors
  • Nominal Cross-sectional Area Nominal Insulation Thickness Nominal Bedding Thickness Nominal Steel Wire Armor dia. Nominal Sheath Thickness Approx.Overall Diameter Aprrox Weight
    mm² mm mm mm mm mm kg/km
    3x16 0.7 0.8 1.25 1.6 20.3 760
    3x25 0.9 1 1.6 1.7 22.5 1020
    3x25* 0.9 1 1.6 1.7 24.9 1020
    3x35 0.9 1 1.6 1.8 24.4 1200
    3x35* 0.9 1 1.6 1.8 27.3 1200
    3x50* 1.0 1 1.6 1.8 26.8 1380
    3x70* 1.1 1 1.6 1.9 30.2 1750
    3x95* 1.1 1.2 2.0 2.1 34.8 2420
    3x120* 1.2 1.2 2.0 2.2 37.8 2820
    3x150* 1.4 1.4 2.5 2.3 42.7 3660
    3x185* 1.6 1.4 2.5 2.4 46.7 4350
    3x240* 1.7 1.4 2.5 2.6 51.5 5220
    3x300* 1.8 1.6 2.5 2.7 56.2 6200
  • *Solid shaped conductor (class 1)
  •

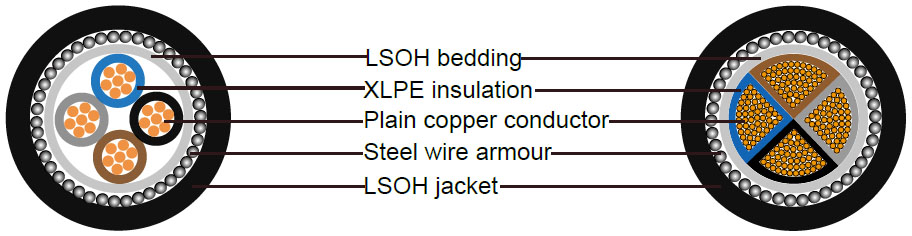

  • Four-core 600/1000 V cables with stranded copper conductors
  • Nominal Cross-sectional Area Strand Type Nominal Insulation Thickness Nominal Bedding Thickness Nominal Steel Wire Armor dia. Nominal Sheath Thickness Approx.Overall Diameter AprroxWeight
    mm² No./mm mm mm mm mm mm kg/km
    4x1.5 7/0.53 0.7 0.8 0.9 1.4 13.3 390
    4x2.5 7/0.67 0.7 0.8 0.9 1.4 15.0 470
    4x4 7/0.85 0.7 0.8 0.9 1.4 16.4 580
    4x6 7/1.04 0.7 0.8 1.25 1.5 18.7 805
    4x10 7/1.35 0.7 0.8 1.25 1.5 21.1 1090
    4x16 7/1.70 0.7 0.8 1.25 1.6 23.4 1320
    4x25 7/2.14 0.9 1 1.6 1.7 28.9 1840
    4x25* 7/2.14 0.9 1 1.6 1.7 26.1 1840
    4x35 7/2.52 0.9 1 1.6 1.8 31.9 2310
    4x35* 7/2.52 0.9 1 1.6 1.8 28.6 2310
    4x50* 19/1.78 1.0 1 1.6 1.9 32.0 2970
    4x70* 19/2.14 1.1 1.2 2.0 2.1 37.7 4240
    4x95* 19/2.52 1.1 1.2 2.0 2.2 41.7 5400
    4x120* 37/2.03 1.2 1.4 2.5 2.3 47.1 7000
    4x150* 37/2.25 1.4 1.4 2.5 2.4 51.4 8350
    4x185* 37/2.52 1.6 1.4 2.5 2.6 56.6 10130
    4x240* 61/2.25 1.7 1.6 2.5 2.7 63.0 12840
    4x300* 61/2.52 1.8 1.6 2.5 2.9 68.8 15530
    4x400* 61/2.85 2 1.8 3.15 3.2 78.1 19950
  • * Shaped stranded conductor (class 2)
  •
  • Four-core 600/1000 V cables with solid aluminum conductors
  • Nominal Cross-sectional Area Nominal Insulation Thickness Nominal Bedding Thickness Nominal Steel Wire Armor dia. Nominal Sheath Thickness Approx.Overall Diameter Aprrox Weight
    mm² mm mm mm mm mm kg/km
    4x16 0.7 0.8 1.25 1.6 21.8 980
    4x25 0.9 1 1.6 1.7 26.9 1220
    4x25* 0.9 1 1.6 1.7 24.6 1220
    4x35 0.9 1 1.6 1.8 29.5 1420
    4x35* 0.9 1 1.6 1.8 27 1420
    4x50* 1.0 1 1.6 1.9 30 1770
    4x70* 1.1 1.2 2.0 2.1 35.3 2500
    4x95* 1.1 1.2 2.0 2.2 39 2980
    4x120* 1.2 1.4 2.5 2.3 44 3950
    4x150* 1.4 1.4 2.5 2.4 47.9 4600
    4x185* 1.6 1.4 2.5 2.6 52.7 5430
    4x240* 1.7 1.6 2.5 2.7 58.5 6660
    4x300* 1.8 1.6 2.5 2.9 63.8 7770
  • *Solid shaped conductor (class 1)
  •
  • Five-core 600/1000 V cables with stranded copper conductors
  • Nominal Cross-sectional Area Strand Type Nominal Insulation Thickness Nominal Bedding Thickness Nominal Steel Wire Armor dia. Nominal Sheath Thickness Approx.Overall Diameter Aprrox Weight
    mm² No./mm mm mm mm mm mm kg/km
    5x1.5 7/0.53 0.6 0.8 0.9 1.4 14.3 430
    5x2.5 7/0.67 0.7 0.8 0.9 1.4 16.1 545
    5x4 7/0.85 0.7 0.8 0.9 1.5 17.8 680
    5x6 7/1.04 0.7 0.8 1.25 1.5 20 840
    5x10 7/1.35 0.7 0.8 1.25 1.6 22.9 1105
    5x16 7/1.70 0.7 1 1.6 1.7 26.6 1450
    5x25 7/2.14 0.9 1 1.6 1.8 31.5 2245
    5x35 7/2.52 0.9 1 1.6 1.9 34.8 2840
    5x50 19/1.78 1.0 1.2 2 2 40.4 3895
    5x70 19/2.14 1.1 1.2 2 2.2 46.3 5145
  •
  • Multi-core 600/1000 V cables with stranded copper conductors
  • Nominal Cross-sectional Area Strand Type Nominal Insulation Thickness Nominal Bedding Thickness Nominal Steel Wire Armor dia. Nominal Sheath Thickness Approx.Overall Diameter AprroxWeight
    mm² No./mm mm mm mm mm mm kg/km
    7x1.5 7/0.53 0.6 0.8 0.9 1.4 15.2 500
    12x1.5 7/0.53 0.6 0.8 1.25 1.5 19.4 820
    19x1.5 7/0.53 0.6 0.8 1.25 1.6 22.2 1080
    27x1.5 7/0.53 0.6 1 1.6 1.7 26.7 1550
    37x1.5 7/0.53 0.6 1 1.6 1.7 29 1850
    48x1.5 7/0.53 0.6 1 1.6 1.8 32.7 2250
    7x2.5 7/0.67 0.7 0.8 0.9 1.4 17.1 730
    12x2.5 7/0.67 0.7 0.8 1.25 1.6 22.4 1020
    19x2.5 7/0.67 0.7 1 1.6 1.7 26.6 1530
    27x2.5 7/0.67 0.7 1 1.6 1.8 30.7 1960
    37x2.5 7/0.67 0.7 1 1.6 1.8 33.8 2450
    48x2.5 7/0.67 0.7 1.2 2 2 39.3 3260
    7x4 7/0.85 0.7 0.8 1.25 1.5 19.7 840
    12x4 7/0.85 0.7 1 1.6 1.6 25.7 1390
    19x4 7/0.85 0.7 1 1.6 1.7 29.3 1850
    27x4 7/0.85 0.7 1 1.6 1.9 34.4 2350
    37x4 7/0.85 0.7 1.2 2 2 39.2 2800
    48x4 7/0.85 0.7 1.2 2 2.1 44.1 3250
  • The number of cores can be ordered upon request.
