6491B Conduit Wiring Cable

Application and Description :

  • 6491B is equivalent to harmonized code H07Z-R, these cables are designed for fixed wiring purposes in domestic and industrial power/lighting applications. Can be used in trunking or conduit, or may be surface mounted when used for earthing. and generally in areas (such as public and government buildings) where smoke and toxic fumes may cause a threat to life and equipment. The cables produce no corrosive gasses when burnt which is particularly important where electronic equipment is installed.

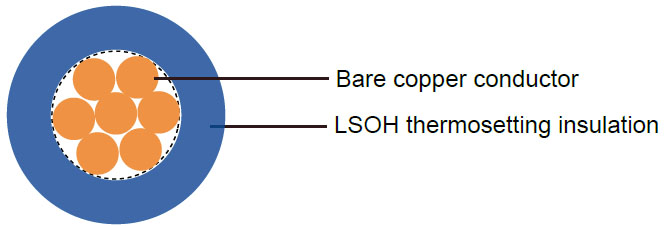

Cable Construction :

  • - Fine bare copper strands


    - Strands to IEC 60228 Cl-2


    - Thermosetting core insulation type EI5


    - LSOH - low smoke, zero halogen

Insulation Colour :

  • Black, Blue, Green/Yellow, Red, Yellow, White, Violet, Brown, Grey, Orange, Pink

Technical Characteristics :

  • - Working voltage: 450/750v
  • - Test voltage: 2500 volts
  • - Minimum bending radius: up to 10 mm² - 3 x overall diameter, above 25 mm² - 6 x overall diameter
  • - Flexing temperature: +0º C to +90º C
  • - Short circuit temperature: +250º C
  • - Insulation resistance: 10 MΩ x km
  • - Flame retardant: IEC 60332.1
  • - Smoke density acc. to EN 50268 / IEC 61034
  • - Corrosiveness of combustion gases acc. to EN 50267-2-2, IEC 60754-2
  • - Flame test: flame-retardant acc. to EN 50265-2-1, IEC 60332.1

Cable Parameter :

  • AWG No. of Cores x Nominal Cross Sectional Area Nominal Thickness of Insulation Nominal Overall Diameter Nominal CopperWeight Nominal Weight Minimum Insulation resistance at 90 °C
      # x mm² mm mm kg/km kg/km MΩ·km
    16(7/24) 1 x 1.5 0.7 2.7-3.4 14.4 21 0.010
    14(7/22) 1 x 2.5 0.8 3.3-4.1 24 33 0.009
    12(7/20) 1 x 4 0.8 3.8-4.7 39 49 0.0077
    10(7/18) 1 x 6 0.8 4.3-5.4 58 71 0.0065
    8(7/16) 1 x 10 1 5.6-7.0 94 114 0.0065
    6(7/14) 1 x 16 1 6.4-8.0 154 172 0.0050
    4(7/12) 1 x 25 1.2 8.1-10.1 240 265 0.0050
    2(7/10) 1 x 35 1.2 9.0-11.3 350 397 0.0043
    1(19/13) 1 x 50 1.4 10.6-13.2 480 534 0.0043
    2/0(19/11) 1 x 70 1.4 12.1-15.1 672 830 0.0035
    3/0(19/10) 1 x 95 1.6 14.1-17.6 912 1054 0.0035
    4/0(37/12) 1 x 120 1.6 15.6-19.4 1152 1274 0.0032
    300MCM(37/11) 1 x 150 1.8 17.3-21.6 1440 1604 0.0032
    350MCM(37/10) 1 x 185 2.0 19.3-24.1 1776 2030 0.0032
    500MCM(61/11) 1 x 240 2.2 22.0-27.5 2400 2630 0.0032
    -(61/10) 1 x 300 2.4 24.5-30.6 3010 3330 0.0030
    -(61/9) 1 x 400 2.6 27.5-34.3 3820 4190 0.0028
    -(61/8) 1 x 500 2.8 30.5-38.2 4800 5240 0.0028
    -(127/10) 1 x 630 2.8 34.0-42.5 6350 6820 0.0025
