EPR/PUR Spiral Cable

Applications :

These EPR/PUR spiral cables are used as till feeder cable and they are ideally suited for use of high quality kitchen and housekeeping utensils, lighting, electrical tools, building industry, handing equipment, entertainment equipment etc. These cables have a high reset power, an excellent appearance and especially a long service life.

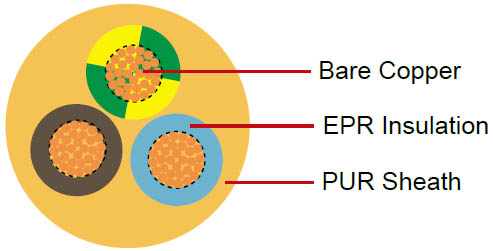

Construction :

EPR/PUR Spiral Cable EPR/PUR Spiral Cable



Conductor : Stranded bare copper conductors according to VDE 0295 class 5
Cores Twisted
Core Insulation : EPR core insulation
Core Color Code : According to VDE0293 or DIN 47100
Sheath : PUR outer sheath
Sheath Color : Orange (Other colors and types are available on request)

Characteristics :

Temperature Rating : -25°C to +80°C
Voltage Rating : H05BQ-F 300V/500V (up to 1 mm2)
  For type H07BQ-F 450/750 V (up to 1.5 mm2)
Elasticity Ratio : EPR/PUR black approx 1 : 5
Test Voltage : H05BQ-F 2000 V, for type H07BQ-F 2500V

Dimensions and Weight :

AWG Cross-section Closed Spiral Lenght Cable Diameter Outer Diameter Copper Count Weight
  mm2 mm mm mm kg/km
18 2 x 0.75 300 6.50 23.00 59.00
18 2 x 0.75 500 6.50 23.00 77.80
18 2 x 0.75 1000 6.50 23.00 149.80
18 2 x 0.75 1500 6.50 23.00 221.80
18 2 x 0.75 3000 6.50 23.00 437.80
18 3 x 0.75 300 7.10 25.20 73.50
18 3 x 0.75 500 7.10 25.20 116.70
18 3 x 0.75 1000 7.10 25.20 224.70
18 3 x 0.75 1500 7.10 25.20 332.60
18 3 x 0.75 3000 7.10 25.20 656.60
18 4 x 0.75 300 7.90 28.80 98.60
18 4 x 0.75 500 7.90 28.80 156.60
18 4 x 0.75 1000 7.90 28.80 301.60
18 4 x 0.75 1500 7.90 28.80 446.60
18 4 x 0.75 3000 7.90 28.80 881.60
18 5 x 0.75 300 8.60 31.20 122.40
18 5 x 0.75 500 8.60 31.20 194.40
18 5 x 0.75 1000 8.60 31.20 374.40
18 5 x 0.75 1500 8.60 31.20 554.40
18 5 x 0.75 3000 8.60 31.20 1094.40
17 2 x 1.00 300 6.80 24.60 65.30
17 2 x 1.00 500 6.80 24.60 103.70
17 2 x 1.00 1000 6.80 24.60 199.70
17 2 x 1.00 1500 6.80 24.60 295.70
17 2 x 1.00 3000 6.80 24.60 583.70
17 3 x 1.00 300 7.20 26.40 98.60
17 3 x 1.00 500 7.20 26.40 156.60
17 3 x 1.00 1000 7.20 26.40 301.60
17 3 x 1.00 1500 7.20 26.40 446.60
17 3 x 1.00 3000 7.20 26.40 881.60
17 4 x 1.00 300 7.80 28.60 130.60
17 4 x 1.00 500 7.80 28.60 207.40
17 4 x 1.00 1000 7.80 28.60 399.40
17 4 x 1.00 1500 7.80 28.60 591.40
17 4 x 1.00 3000 7.80 28.60 1167.40
17 5 x 1.00 300 9.00 32.00 163.20
17 5 x 1.00 500 9.00 32.00 259.20
17 5 x 1.00 1000 9.00 32.00 499.20
17 5 x 1.00 1500 9.00 32.00 739.20
17 5 x 1.00 3000 9.00 32.00 1459.20
16 2 x 1.50 300 8.50 30.00 98.60
16 2 x 1.50 500 8.50 30.00 156.60
16 2 x 1.50 1000 8.50 30.00 301.60
16 2 x 1.50 1500 8.50 30.00 446.60
16 2 x 1.50 3000 8.50 30.00 881.60
16 3 x 1.50 300 8.90 32.80 146.20
16 3 x 1.50 500 8.90 32.80 232.20
16 3 x 1.50 1000 8.90 32.80 447.20
16 3 x 1.50 1500 8.90 32.80 662.20
16 3 x 1.50 3000 8.90 32.80 1307.20
16 5 x 1.50 300 10.90 38.80 244.80
16 5 x 1.50 500 10.90 38.80 388.80
16 5 x 1.50 1000 10.90 38.80 748.80
16 5 x 1.50 1500 10.90 38.80 1108.80
16 5 x 1.50 3000 10.90 38.80 2188.80
16 7 x 1.50 300 12.60 46.40 343.40
16 7 x 1.50 500 12.60 46.40 545.40
16 7 x 1.50 1000 12.60 46.40 1050.40
16 7 x 1.50 1500 12.60 46.40 1555.40
16 7 x 1.50 3000 12.60 46.40 3070.40
16 12 x 1.50 300 16.60 65.20 588.20
16 12 x 1.50 500 16.60 65.20 934.20
16 12 x 1.50 1000 16.60 65.20 1799.20
16 12 x 1.50 1500 16.60 65.20 2664.20
16 12 x 2.50 3000 16.60 65.20 5259.20
14 3 x 2.50 300 10.60 38.20 244.80
14 3 x 2.50 500 10.60 38.20 388.80
14 3 x 2.50 1000 10.60 38.20 748.80
14 3 x 2.50 1500 10.60 38.20 1108.80
14 3 x 2.50 3000 10.60 38.20 2188.80
14 5 x 2.50 300 13.20 48.40 408.00
14 5 x 2.50 500 13.20 48.40 648.00
14 5 x 2.50 1000 13.20 48.40 1248.00
14 5 x 2.50 1500 13.20 48.40 1848.00
14 5 x 2.50 3000 13.20 48.40 3648.00
