BS 6346 PVC Insulated Cables,1900/3300V

Applications :

  • These cables are used for power and control circuits, they can offer excellent protection through the use of a heavy galvanized steel wire armour, so they are well adapted to underground use in industrial applications, in moist areas.

Construction :

  • Conductor Solid Aluminum or Copper conductor, round stranded or shaped, Class 2 to BS 6460, IEC 60228.
    Insulation PVC(Polyvinyl Chloride) type TI1
    Colour Code 1 Core : Brown
    3 Cores: Brown, Black, Grey
    Filler(optional) PVC or Polypropylene yarn
    Binder Tape(optional) Polyester (Mylar) tape
    Inner Sheath/ Bedding PVC (Polyvinyl Chloride)
    Armour Single Core: AWA (Aluminum Wire Armour)
    Multi Core: SWA (Steel Wire or Tape Armour)
    Outer Sheath PVC(Polyvinyl Chloride), type TM1

Technical Information :

  • Voltage rating 1900/3300V
    Temperature rating -20°C to + 60°C
    Bending radius Single core: 10 x overall diameter
    Multicores: 8 x overall diameter
    Flame retardant IEC60332 part 1, BS4066 part 1

Cable Parameter :

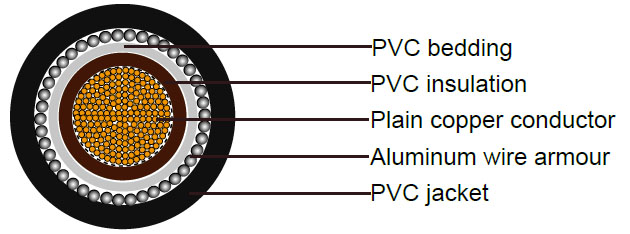

  • Single-core 1900/3300 V cables with circular stranded copper conductor
  • Nominal cross-sectional area Number/wire Nominal insulation thickness Nominal bedding thickness Nominal alum wire armor dia. Nominal sheath thickness Approx.overall diameter Approx.cable weight
    mm² No./mm mm mm mm mm mm kg/mm
    1x50 19/1.78 2.2 0.8 1.25 1.6 21.0 840
    1x70 19/2.14 2.2 0.8 1.25 1.6 22.8 1070
    1x95 19/2.52 2.2 1.0 1.6 1.7 26.0 1445
    1x120 37/2.03 2.2 1.0 1.6 1.7 27.7 1715
    1x150 37/2.25 2.2 1.0 1.6 1.8 29.4 2010
    1x185 37/2.52 2.2 1.0 1.6 1.8 31.3 2380
    1x240 61/2.25 2.2 1.0 1.6 1.9 34.1 2975
    1x300 61/2.52 2.4 1.0 1.6 1.9 37.0 3615
    1x400 61/2.85 2.6 1.2 2.0 2.1 42.0 4655
    1x500 61/3.20 2.8 1.2 2.0 2.1 45.6 5725
    1x630 61/3.65 2.8 1.2 2.0 2.2 49.7 7150
    1x800 127/2.85 2.8 1.4 2.5 2.4 55.8 9160
    1x1000 127/3.20 3.0 1.4 2.5 2.5 61.0 11400
  •

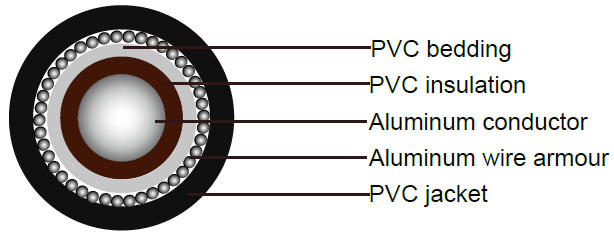

  • Single-core 1900/3300 V cables with solid aluminum conductor
  • Nominal cross-sectional area Nominal insulation thickness Nominal bedding thickness Nominal alum wire armor dia. Nominal sheath thickness Approx. overall diameter Approx. cable weight
    mm² mm mm mm mm mm kg/mm
    1x50 2.2 0.8 1.25 1.6 19.8 625
    1x70 2.2 0.8 1.25 1.6 21.3 735
    1x95 2.2 1.0 1.6 1.7 24.3 965
    1x120 2.2 1.0 1.6 1.7 25.6 1090
    1x150 2.2 1.0 1.6 1.8 27.1 1250
    1x185 2.2 1.0 1.6 1.8 28.8 1415
    1x240 2.2 1.0 1.6 1.9 31.2 1680
    1x300 2.4 1.0 1.6 1.9 33.7 1935
  •

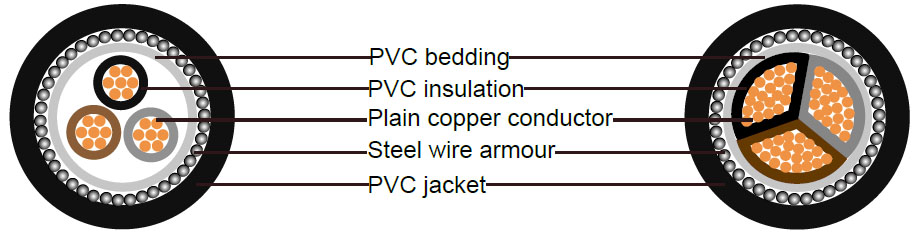

  • Three-core 1900/3300 V cables with stranded copper conductors
  • Nominal cross-sectional area Number/wire Nominal insulation thickness Nominal bedding thickness Nominal wire armor dia. Nominal sheath thickness Approx.overall diameter Approx.cable weight
    mm² No./mm mm mm mm mm mm kg/mm
    3x16 7/1.70 2.2 1.0 1.6 1.8 30.3 1700
    3x25 7/2.14 2.2 1.0 1.6 1.8 33.1 2085
    3x35 19/1.53 2.2 1.0 1.6 1.9 35.8 2405
    3x35* 19/1.53 2.2 1.0 1.6 1.9 32.1 2405
    3x50* 19/1.78 2.2 1.2 2.0 2.0 35.6 3160
    3x70* 19/2.14 2.2 1.2 2.0 2.1 38.9 3925
    3x95* 19/2.52 2.2 1.2 2.0 2.2 42.3 4860
    3x120* 37/2.03 2.2 1.4 2.5 2.3 46.6 6205
    3x150* 37/2.25 2.2 1.4 2.5 2.4 49.4 7175
    3x185* 37/2.52 2.2 1.4 2.5 2.5 52.8 8320
    3x240* 61/2.25 2.2 1.6 2.5 2.6 57.8 10395
    3x300* 61/2.52 2.4 1.6 2.5 2.8 63.2 12575
    3x400* 61/2.85 2.6 1.6 2.5 3.0 69.6 15325
  • *Shaped stranded conductor (class 2)
  •

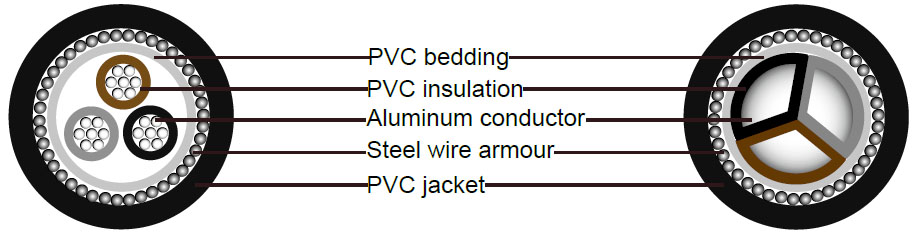

  • Three-core 1900/3300 V cables with solid aluminum conductors
  • Nominal cross-sectional area Nominal insulation thickness Nominal bedding thickness Nominal Armor dia. Nominal sheath thickness Approx.overall diameter Approx.cable weight
    mm² mm mm mm mm mm kg/mm
    3x16 2.2 1.0 1.6 1.8 28.9 1630
    3x25 2.2 1.0 1.6 1.8 31.3 1880
    3x35 2.2 1.0 1.6 1.9 33.7 2145
    3x35* 2.2 1.0 1.6 1.9 30.6 2145
    3x50* 2.2 1.2 2.0 2.0 33.9 2880
    3x70* 2.2 1.2 2.0 2.1 36.9 3340
    3x95* 2.2 1.2 2.0 2.2 40.0 3870
    3x120* 2.2 1.4 2.5 2.3 44.0 4980
    3x150* 2.2 1.4 2.5 2.4 46.5 5585
    3x185* 2.2 1.4 2.5 2.5 49.6 6250
    3x240* 2.2 1.6 2.5 2.6 54.2 7315
    3x300* 2.4 1.6 2.5 2.8 59.2 8365
  • *Shaped conductor (class 1)
